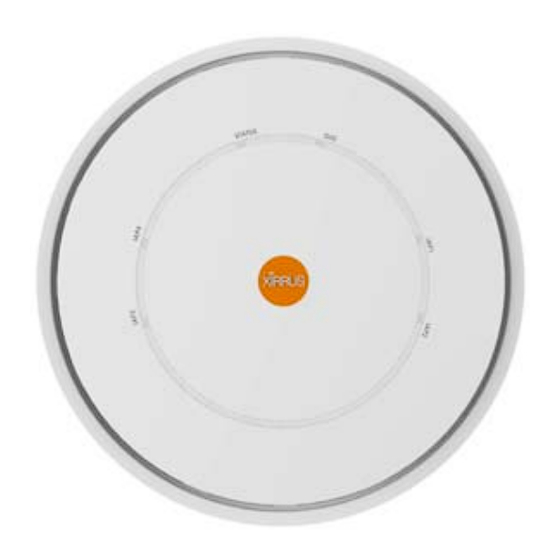

Page 1: Wireless Access Point
Wireless Access Point XD4 Series Quick Installation Guide XD4 Series June 15, 2016... - Page 2 Xirrus, Inc. All other trademarks and brand names are marks of their respective holders. Please see Legal Notices, Warnings, Compliance Statements, and Warranty and License Agreements in the Wireless Access Point User’s Guide. All rights reserved. This document may not be reproduced or disclosed in whole or in part by any means without the written consent of Xirrus, Inc.
-
Page 3: Quick Installation Guide
100 m, including all cable segments. Power— See the matrix below to select a compatible PoE switch or Xirrus-supplied injector for your AP. If using an injector, you must provide a data connection from the switch to the injector as well as another cable from the injector's OUT port to the AP’s GIGABIT1/PoE port. - Page 4 A 7/16” nut driver to attach the mounting plate to the bracket or clips. (See “Install Mounting Hardware and AP” on page 3.) Note that you cannot use old T-bar clips from XN or XS APs with the XD4 Series.
- Page 5 XD Series High Density Access Points ORIENTATION OF RADIOS IAP4 IAP1 IAP1 IAP4 IAP2 IAP3 IAP2 Gigabit Ports IAP3 Gigabit Ports Install Mounting Hardware and AP 3A—Ceiling Mount with Mounting Plate 3C—Ceiling Grid Mount with Mounting Plate 3B—Direct Ceiling Mount without Mounting Plate 3A—Ceiling Mount with Mounting Plate The following steps use a mounting plate, which offers a more secure mount, ease of dismount, and a locking...
- Page 6 XD Series High Density Access Points back of the AP. (See photo for Step 4 on page 5. If you ever need to reinstall the slug, push it in with the small protruding bump facing towards the nearer mounting slot.) Mark the locations for the two mounting screws on the ceiling—the centers are 3.5”...
- Page 7 APs, then set up discovery for the APs’ subnetwork. New devices will automatically receive the configuration defined in the default profile. If you are not using XMS, please see the Xirrus Wireless AP User's Guide to configure the AP manually via the Express Setup menu. The User Guide is available from http://support.xirrus.com...
-
Page 8: Using The Reset Button
XD Series High Density Access Points Using the Reset Button The reset button returns the AP to factory default settings while rebooting. It is located on the bottom of the unit. Use the reset button as follows: Unplug the cable from the GIG1/PoE port. ... - Page 9 Thousand Oaks, CA 91320, USA 812-0085-010 Rev E © 201 Xirrus, Inc. All Rights Reserved. The Xirrus logo is a registered trademark of Xirrus, Inc. All other trademarks are the property of their respective owners. Content subject to change without notice.
