4.3 Mounting instructions

Mounting procedures:
a) Drilling holes:
There are holes on the mounting template in the accessory, which is for help of
orientation. Drill four holes for the screws at the selected installation position. The space

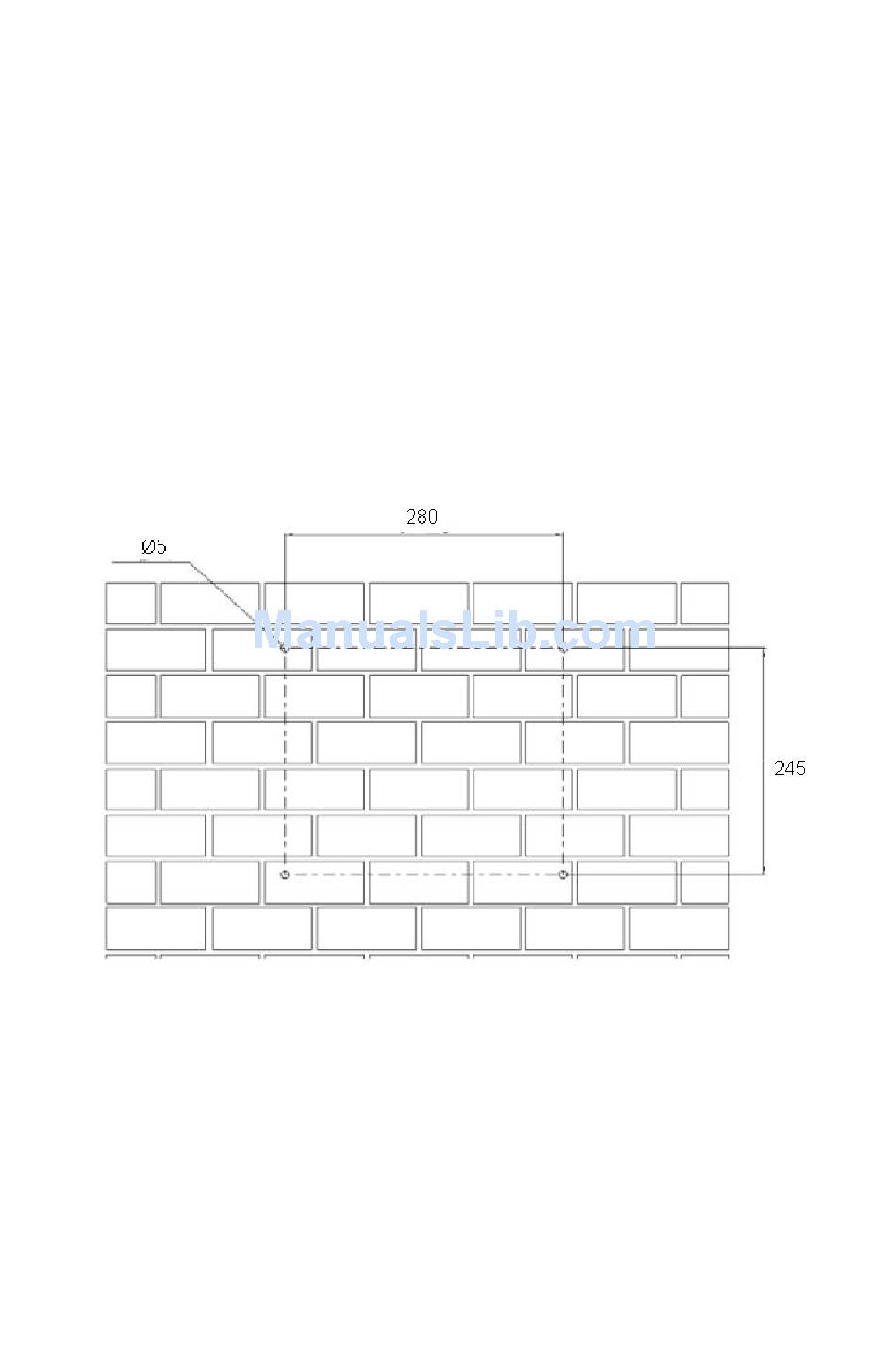

between every two holes is shown in the figure below. Keep drilling vertical to the wall
and don't shake the drill to avoid holes tilting. The depth of the holes must be the same
and 55mm～60mm. After removing the dust in the four holes, measure the net depth of
the holes. If the depth is deeper than 60 mm or less than 55 mm, the wall plugs wouldn't
be installed and tightened.
b) Wiring the screws
After drilling holes in the wall, place four wall plugs (object2 shown in the left drawing
below) in the holes using a rubber hammer. Then, wiring four screws (object1) into the
wall plugs.
