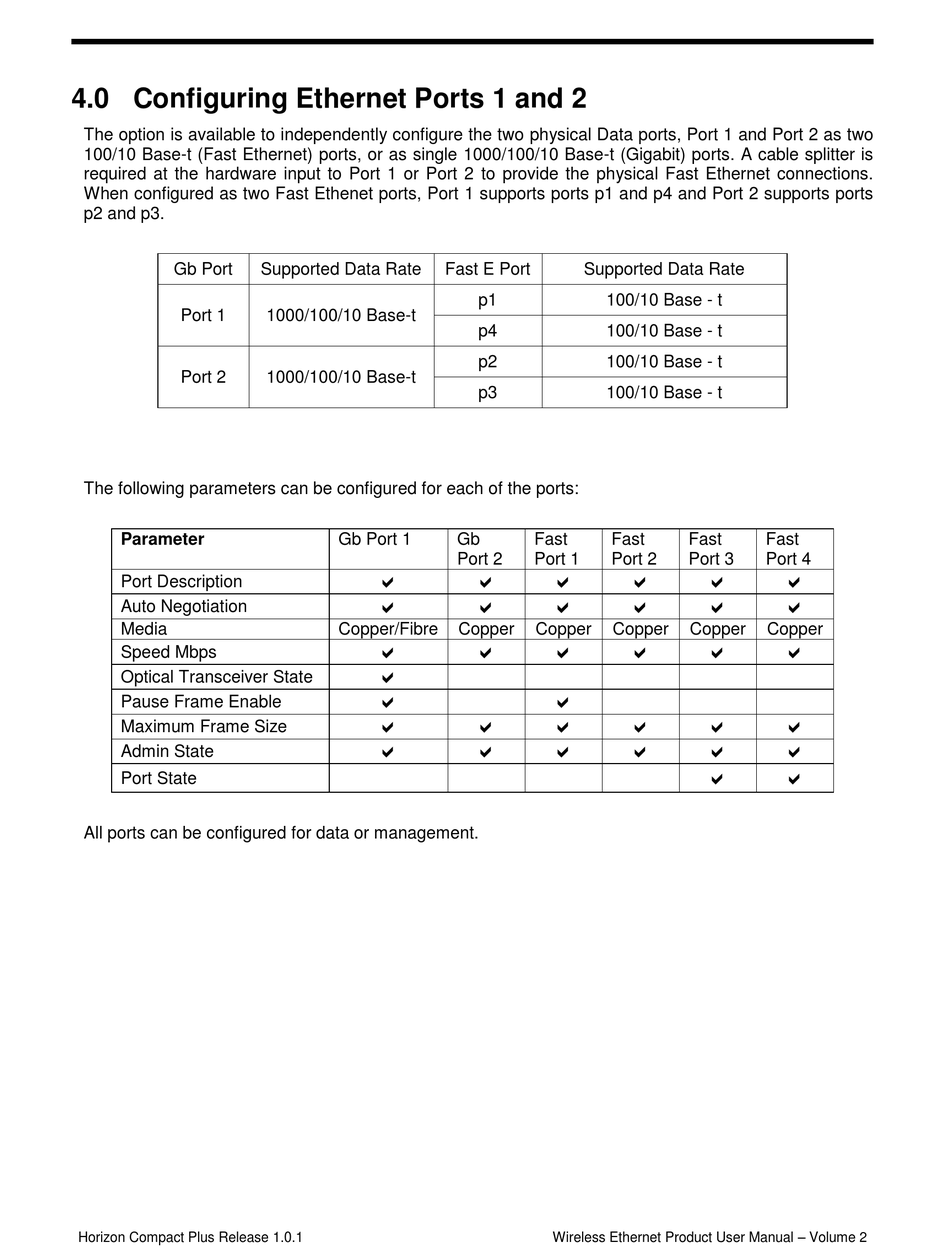

4.0 Configuring Ethernet Ports 1 and 2

The option is available to independently configure the two physical Data ports, Port 1 and Port 2 as two
100/10 Base-t (Fast Ethernet) ports, or as single 1000/100/10 Base-t (Gigabit) ports. A cable splitter is
required at the hardware input to Port 1 or Port 2 to provide the physical Fast Ethernet connections.
When configured as two Fast Ethenet ports, Port 1 supports ports p1 and p4 and Port 2 supports ports
p2 and p3.
Gb Port
Port 1
Port 2
The following parameters can be configured for each of the ports:
Parameter
Port Description
Auto Negotiation
Media
Speed Mbps
Optical Transceiver State
Pause Frame Enable
Maximum Frame Size
Admin State
Port State
All ports can be configured for data or management.
Horizon Compact Plus Release 1.0.1
Supported Data Rate
1000/100/10 Base-t
1000/100/10 Base-t
Gb Port 1


Copper/Fibre





Fast E Port Supported Data Rate
p1 100/10 Base - t
p4 100/10 Base - t
p2 100/10 Base - t
p3 100/10 Base - t
Gb Fast Fast
Port 2 Port 1 Port 2
 
 
Copper Copper Copper
 

 
 
Wireless Ethernet Product User Manual – Volume 2
Fast Fast
Port 3 Port 4
  
  
Copper Copper
  
  
  
 
