Summary of Contents for Watchguard WGSMSC

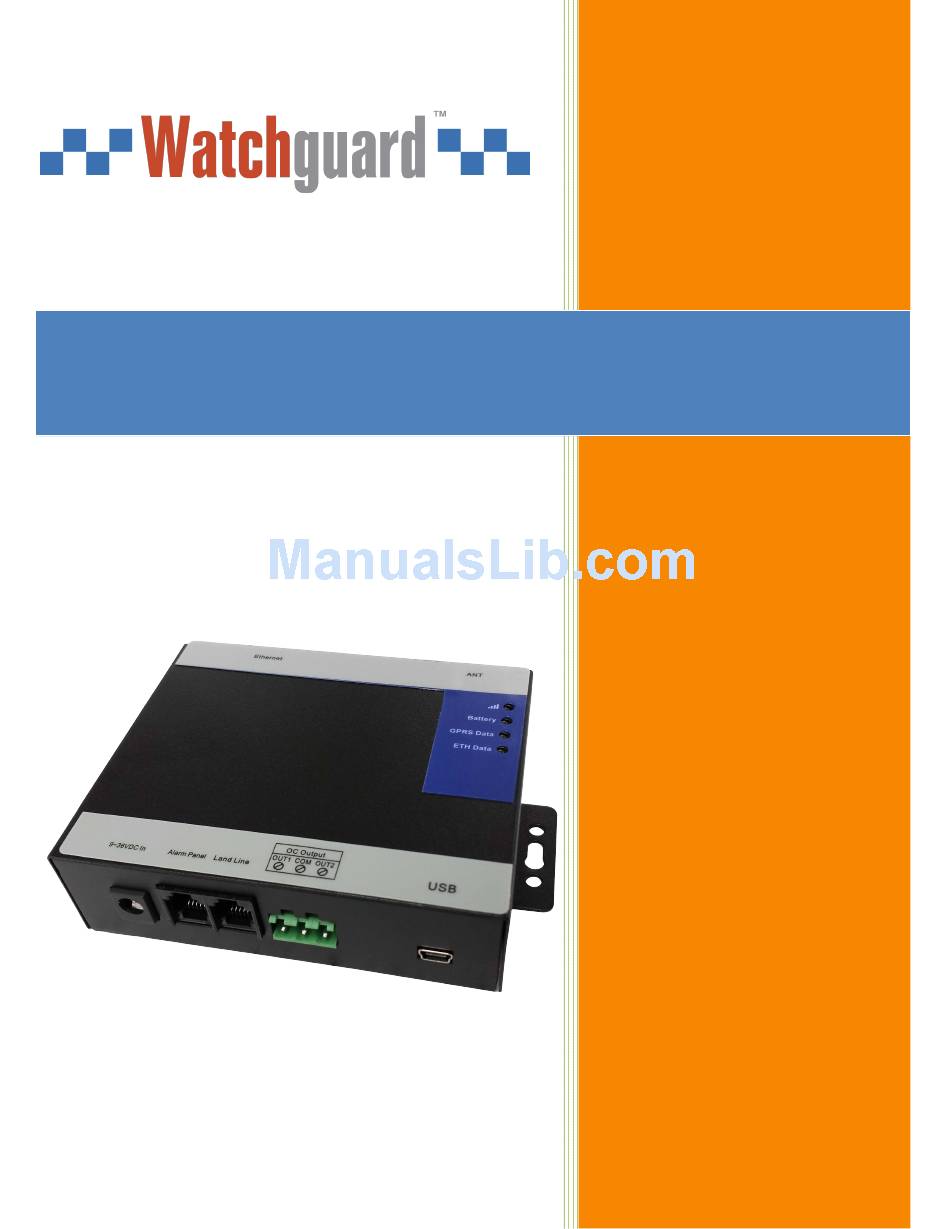

- Page 1 4G/SMS/Ethernet Contact ID Communicator PSTN/4G Contact ID Protocol to SMS Alert & SIA IP Converter User Manual Ver 1.2 Model: WGSMSC Date Issued: 2017-08-05...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction..............................3 2. Specifications..............................3 3. Features................................3 4. Standard Package............................4 5. Overview of Main Panel..........................4 6. Indicator Lights............................... 5 7. Connection..............................5 8. Installations ..............................5 8.1 Install the USB Driver on PC. -
Page 3: Introduction
The GSM/3G/4G Communicator WGSMSC is specially designed for existing Watchguard alarm systems. The GSM/3G/4G Communicator WGSMSC can transfer the Alert Message from your PSTN Contact ID (SIA DC-05) Control panel into SIA DC-09 protocol over Ethernet/GPRS network and SMS notification. It can change alert notifications from traditional PSTN alert to Ethernet/wireless alert (SIA standard DC-09 requirements). -
Page 4: Standard Package
SMS notification when the connection with the CMS center is failed (3 trial times). When PSTN network failed, it will send the alert message to the center by Ethernet/GPRS network, When the PSTN network good, then it will not use GPRS network etc. for transferring alert message, ... -
Page 5: Indicator Lights
OFF means disconnected from the external power adapter. [RED]: GPRS Data Indicator, it will blink every 1s when WGSMSC is transferring GPRS data. [RED]: Eth ernet indicator, it will keep blinking wh en WGSMSC is transferring GPRS data;... -
Page 6: Installations
PC confirgurator. 8.1 Install the USB Driver on PC. Screw on the GSM antenna. Open the cover on the back the WGSMSC to find the SIM card holder, and insert the SIM card as below: Firmware Upgrading... -
Page 7: The Menu Bar Of The Pc Configurator
[Alt + L]: Load the setting profile that you have saved before Save the Profile [Alt + S]: Save the settings to the local [Alt + R]: Reset the WGSMSC device back to the factory Recovery Factory Default [Alt + A]: The information about the WGSMSC About [Alt + E]: Exit the PC configurator. -
Page 8: The Phone Numbers For Events Notification
Tick the phone numbers in the list that will receive the SMS notification when the event occur. Only for SMS notification, no voice communication. is the phone number only for example. If the WGSMSC can’t work, please add your country code in 18676734714 front of the phone number. -
Page 9: Set The Cms Server Ip Address And Server Port
8.3.6 Set the CMS Server IP address and Server Port. Notice: The alert messages will be transmitted to Server 2 (backup) once Server 1 failed after both of them are set. 8.3.7 Set the Output pulse time and Ethernet parameter. Output Pulse Time 0~9999S Ethernet Parameter... -
Page 10: The Other Buttons In Pc Configurator
Clear the words displayed in the current windows (The existed settings will not be cleared). Clear Display Clear the data WGSMSC have received in the current window. Clear Received Data Clear the data WGSMSC have send in the current window. -
Page 11: Engineer Debug For Gprs Data Transmission
8.4.0 Engineer Debug for GPRS Data Transmission. 9. SMS Commands Th e SMS commands below are sent to th e SIM card of WGSMSC for remote configuration. Best used when you are not able to program the WGSMSC by the PC configurator. - Page 12 GSM Signal Value: 30 Notice: Every WGSMSC has a unique IMEI code for firmware upgrading. The GSM Signal Value range: 1~31.99, Signal weak value: <16. 5) Program the 5 mobile phone numbers (the max is 23 digits) for SMS notification.
-
Page 13: Warranty
Or both. (The serial number is 1 or 2 or both) Inquiry all the current status Password+DOE DO1: ON/OFF For example: 1234DOE DO2:ON/OFF Pulse output time Password+DOP+Serial Number (1 or 2) DO(1 or 2) Pulse Output Time： Time(Max 4 digits,9999s) xxxS Default: 0s ,means always keep close Inquiry output time... - Page 14 Cornick Pty Ltd. https://www.watchguardsystems.com/ Page 14 of 14 Ver 1.2 Date: 20170805...
