Contact ID to SMS Communicator
PSTN Contact ID Protocol to SMS Alert & SIA IP Converter
User Manual
Ver 1.0
Model: WGSMSB
Date Issued: 2017-07-24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WGSMSB and is the answer not in the manual?

Questions and answers

Related Manuals for Watchguard WGSMSB

Summary of Contents for Watchguard WGSMSB

  • Page 1 Contact ID to SMS Communicator PSTN Contact ID Protocol to SMS Alert & SIA IP Converter User Manual Ver 1.0 Model: WGSMSB Date Issued: 2017-07-24...

  • Page 2: Table Of Contents

    Watchguard and its distributors accept no liability for any loss or damage including consequential damage due to reliance on any material contained in this handbook. Watchguard and its distributors accept no liability for GSM Network upgrading or SIM Card upgrading due to the technology specifications contained in this handbook.

  • Page 3: The Introduction

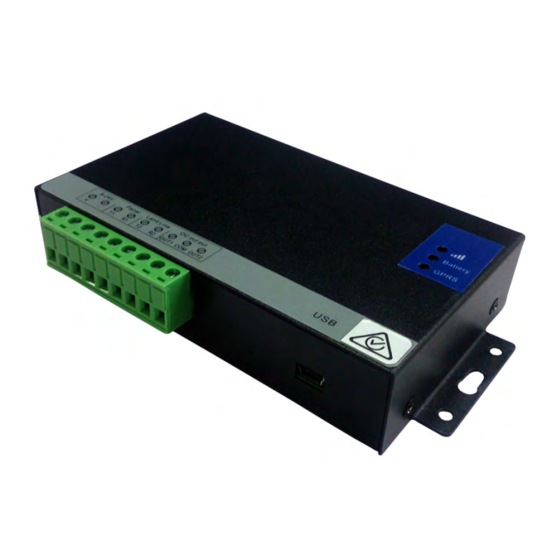

    The GSM Communicator WGSMSB is specially designed for your existing alarm systems. It’s compatible with the majority of Watchguard Control Panels. The GSM Communicator WGSMSB can transfer the Alert Message from your PSTN Contact ID Control panel into SMS alert and SIA IP over GPRS network. It can change alert notifications from traditional PSTN alert to wireless alert (SIA standard DC-09 requirements).

  • Page 4: The Standard Package

     2 OC outputs which could be controlled by SMS commands,  Support firmware upgrading via USB with unique IMEI code independently,  Supports PIN code verification in PC configurator,  Remote configuration, handled from CMS or SMS commands,  Backup rechargeable battery, with power failure SMS alert.

  • Page 5: The Indicator Lights

    6. The Indicator Lights. [RED]: GMS indicator, blinking every 0.3s means registering the network, when the GSM signal is normal, it will keep blinking every 1s. [RED]: External power supply indicator, ON means Connection, OFF means Disconnection. [RED]: GPRS Network Indicator, blinking every 0.3s means GPRS connection failures, and it will keep blinking every 1s when the GPRS connection is successful.

  • Page 6: The Installations

    PC confirgurator. 8.1 Install the USB Driver on PC. Screw the GSM antenna, Open the cover on the back the WGSMSB to find the SIM card holder, and insert the SIM card as below: Firmware Upgrading Button...

  • Page 7: The Menu Bar Of The Pc Configurator

    [Alt + L]: Load the setting profile that you have saved before Loading Profile Save the Profile [Alt + S]: Save the settings to the local [Alt + R]: Reset the WGSMSB device back to the factory Recovery Factory Default [Alt + A]: The information about the WGSMSB About Exit [Alt + E]: Exit the PC configurator.

  • Page 8: Set The Password And Pin Code Verification

    Trouble The Contact ID alarm notification from PSTN Control Panel Open ByPass Test The GPRS message transmission failure notification from WGSMSB . GPRS Fail The external DC Power Loss notification from WGSMSB DC Loss Notice: Tick it stands for the phone numbers in the list will receive the SMS notification when the event occurred.

  • Page 9: Set The Sms Notification Contents

    8.3.7 Set the SMS Notification Contents. Partition Please set it according to your PSTN control panel. ( 2 digits, from 0 - 9, B – F ) Zone Max 63 Zones. Please set it according to your PSTN control panel. ( 3 digits, from 0 - 9, B – F ) SMS Text Message The SMS alert message content, the max is 59 digits.

  • Page 10: The Sms Commands

    GSM Signal Value: 30 Notice: Every WGSMSB has a unique IMEI code for firmware upgrading. The GSM Signal Value range: 1~31, Signal weak value: >14. 5) Program the 5 mobile phone numbers (the max is 23 digits) for SMS notification.
  • Page 11 Inquiry the whole numbers list Password The list of the exiting numbers For Example: 1234A Delete the phone number in the Password＋A＋Serial Number The list of the exiting numbers existing numbers list For Example: 1234A3 Notice: The Serial Number: 1 – 5. These mobile phone numbers are only used for the SMS notification, no voice notification.

  • Page 12: Warranty

    10. Warranty. 1) This system is warranted to be free of defects in material and workmanship for one year. 2) This warranty does not extend to any defect, malfunction or failure caused by abuse or misuse by the Operating Instructions. In no event shall the manufacturer be liable for any alarm system altered by purchasers.
