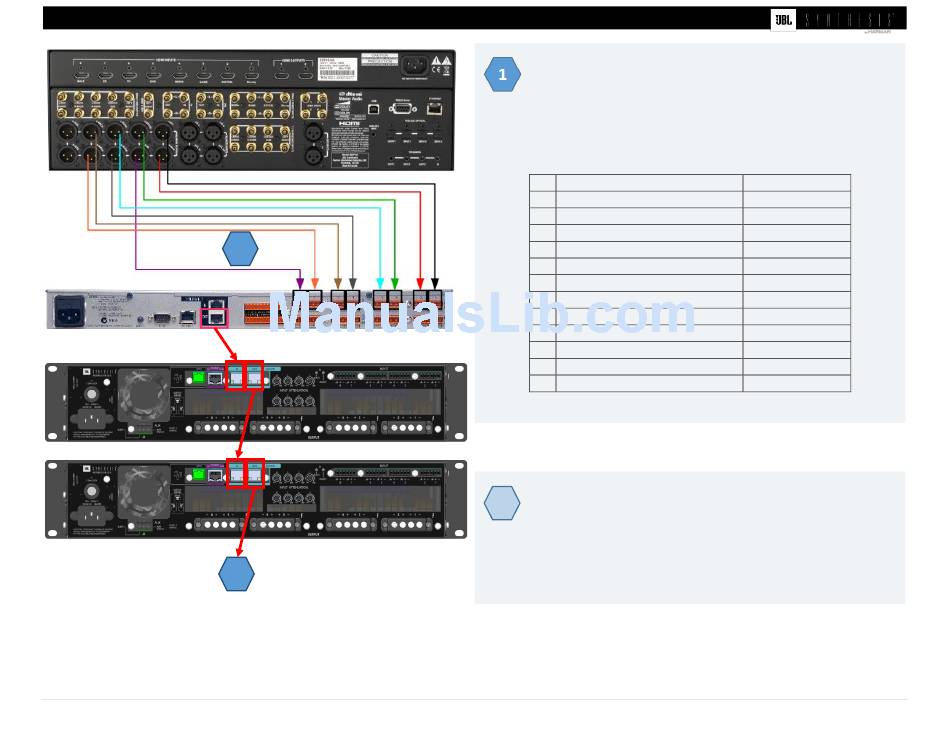

Step One - Audio Input
Connect the analog output of the preamp or surround processor [SDP-45
shown at left] to the input of the SDEC4500P. See the SDEC4500 installation
manual for more details.
# Surround Preamp Output
1 Left Front
2 Right Front
3 Center Front
4 Left Side
5 Right Side
6 Left Rear
7 Right Rear
8 Subwoofer
9 Aux 1 Left / Front Height L
10 Aux 1 Right / Front Height R
11 Aux 2 Left / Rear Height L
12 Aux 2 Right / Rear Height R
2
Step Two – Blu-Link Digital Audio
Connect the OUT from the SDEC4500P to the IN of the first amplifier.
Continue with each amplifier in the system connecting from OUT to IN. Up to
60 Amplifiers can be connected with up to 128 discrete channels of audio.
SDEC4500P Input
A1
A2
A3
A4
B1
B2
B3
B4
C1
C2
C3
C4
