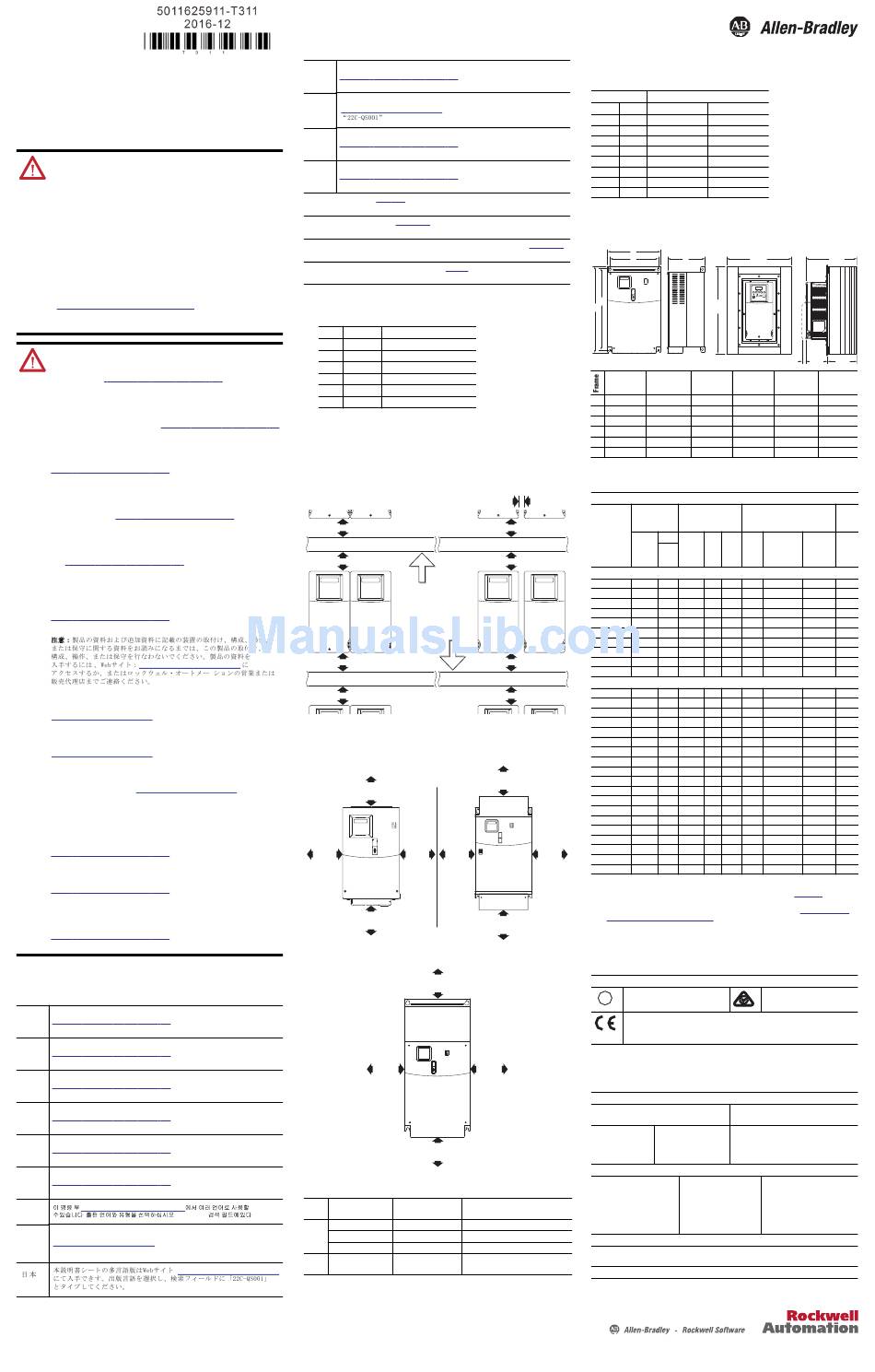

Allen-Bradley PowerFlex 400 Product Information

Product Information

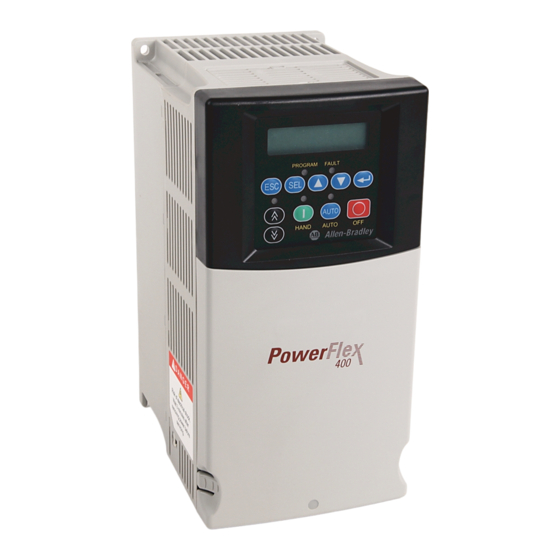

PowerFlex 400 Adjustable Frequency AC
Drive
Catalog Number 22C, Series B
ATTENTION:
• Before installing, configuring, operating or maintaining this product,
read this document and the documents listed in the Additional
Resources section for installing, configuring, or operating
equipment. Users should familiarize themselves with installation and
wiring instructions in addition to requirements of all applicable
codes, laws, and standards.
• Installation, adjustments, putting into service, use, assembly, disassembly,
and maintenance shall be carried out by suitably trained personnel in
accordance with applicable code of practice.
• If this equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
• Solid state equipment has operational characteristics differing from those of
electromechanical equipment. Safety Guidelines for the Application,
Installation and Maintenance of Solid State Controls, publication SGI-1.1,
available from your local Rockwell Automation sales office or online at
http://www.rockwellautomation.com/literature
differences between solid state equipment and hard-wired
electromechanical devices.
ATTENTION: Do not install, configure, operate or maintain this product until you have read
the product documentation and the documents in the Additional Resources section for
installing, configuring, operating or maintaining equipment. To get the product
documentation go to http://www.rockwellautomation.com/literature
sales office or Rockwell Automation representative.
ATTENTION: Ne pas installer, configurer, exploiter ou maintenir ce produit tant que vous
n'avez pas lu sa documentation et les documents de la rubrique Documents connexes pour
l'installation, la configuration, l' e xploitation et la maintenance de l' é quipement. Pour obtenir
de la documentation, rendez-vous sur le site http://www.rockwellautomation.com/literature
ou contactez votre agence commerciale Rockwell Automation locale ou son représentant.
ACHTUNG: Für die Installation, Konfiguration, den Betrieb und die Wartung dieses Produkt
lesen Sie sich bitte zunächst die Produktdokumentation sowie die Dokumente im Abschnitt
"Weitere Informationen" durch. Die entsprechende Produktdokumentation finden Sie unter
http://www.rockwellautomation.com/literature oder kontaktieren Sie Ihr lokales
Vertriebsbüro bzw. einen Rockwell Automation-Mitarbeiter.
ATENCIÓN: No instale, configure, opere ni mantenga este producto hasta que haya leído la
documentación del producto y los documentos en la sección Recursos adicionales para la
instalación, configuración, operación o mantenimiento de equipo. Para conseguir la
documentación, diríjase a http://www.rockwellautomation.com/literature
contacto con su oficina regional de ventas o representante de Rockwell Automation.
ATENÇÃO: Não instale, configure, opere ou mantenha este produto até que você leia a
documentação do produto e os documentos na seção Recursos adicionais para a instalação,
configuração, operação ou manutenção do equipamento. Para conseguir a documentação,
visite http://www.rockwellautomation.com/literature
de vendas regional ou representante da Rockwell Automation.
ATTENZIONE: Non installare, configurare, attivare o riparare questo prodotto senza avere
prima letto la relativa documentazione nonchè i documenti indicati nella sezione Ulteriori
Risore riguardanti l'installazione, la configurazione, l'attivazione o la riparazione
dell'apparecchiatura. Per la documentazione sul prodotto visitare il sito
http://www.rockwellautomation.com/literature o contattare l'ufficio vendite o il
rappresentate Rockwell Automation di zona.
http://www.rockwellautomation.com/literature
주의사항 : : 제품 매뉴얼 혹은설치 , 구성 , 가동 , 유지와 관련된 추가 지침서를 주의사항
완전히 숙지하기 전까지 본 제품을 설치 혹은 가동하 지 마십시오 . 본 제품과
관련된 매뉴얼 혹은 문서를 원하시면 사이트
http://www.rockwellautomation.com/literature
를 방문 해주시거나 해당
지역의 로크웰 오토메이션대리점으 로 문의하십시오 .
注意：若未阅读产品文档以及" 其它资源" 小节中提及的有关安装、配置、 注意
运行或维护设备的相关文档，请勿安装、配置、运行或维护本产品。请访问
http://www.rockwellautomation.com/literature
或联系您当地的销售办事处或
罗克韦尔自动化代表，以获取产品文档。
注意： 在您完整閱讀本產品相關文件及其他關於安裝、 配置、 操作或 注意：
維護設備等資料之前、 請勿安裝、 配置、 操作或維護此產品。您可到下列
http://www.rockwellautomation.com/literature
網站下載所有產品相關文件
或聯繫洛克威爾自動化當地辦公室。
ВНИМАНИЕ: Не устанавливайте, не конфигурируйте, не запускайте в эксплуатацию и не
поддерживайте работу продукта до прочтения технической документации по продукту
и документации в разделе Дополнительные материалы для инсталлирования,
конфигурирования, запуска в эксплуатацию и поддержки работы продукта. Чтобы
ознакомиться с документацией по продукту, перейдите по ссылке
http://www.rockwellautomation.com/literature или свяжитесь с локальным офисом
продаж или представителем Rockwell Automation.
UWAGA: Nie instaluj i nie uruchamiaj tego urządzenia dopóki nie zapoznasz się z instrukcją
użytkownika produktu. Aby uzyskać dokumentację produktu przejdź do strony internetowej
http://www.rockwellautomation.com/literature lub skontaktuj się z lokalnym biurem
sprzedaży lub przedstawicielstwem firmy Rockwell Automation.
UPOZORŇENÍ: Neprovádějte instalaci, konfiguraci, provoz ani údržbu, pokud jste dosud
nepřečetli dokumentaci k produktu a dokumenty obsažené v sekci Doplňující informace pro
instalaci, konfiguraci, provoz a údržbu. Tuto dokumentaci můžete získat na
http://www.rockwellautomation.com/literature nebo od obchodního zástupce společnosti
Rockwell Automation.
Additional Resources
These documents contain additional information concerning the installation, programming, and application
of the AC drive.
English This instruction sheet is available in multiple languages at
http://www.rockwellautomation.com/literature. Select publication language and type
"22C-QS001" in the search field.
Deutsch Diese Anleitung steht in mehreren Sprachen unter
http://www.rockwellautomation.com/literature zur Verfügung. Wählen Sie Ihre Sprache aus,
und geben Sie „22C-QS001" in das Suchfeld ein.
Français Ces instructions sont disponibles dans différentes langues à l'adresse suivante:
http://www.rockwellautomation.com/literature. Sélectionner la langue puis taper
« 22C-QS001 » dans le champ de recherche.
Italiano La presente scheda d'istruzione è disponibile in varie lingue sul sito
http://www.rockwellautomation.com/literature. Selezionare la lingua desiderata e digitare
"22C-QS001" nel campo di ricerca.
Español Puede encontrar esta hoja de instrucciones en varios idiomas en
http://www.rockwellautomation.com/literature. Selecione el idioma de publicación y
escriba "22C-QS001" en el campo de búsqueda.
Português Esta folha de instruções está disponível em várias línguas em
http://www.rockwellautomation.com/literature. Seleccione a língua de publicação e entre
com "22C-QS001" no espaço de busca.
http://www.rockwellautomation.com/literature
한국의
"22C-QS001"
.
中文
从以下网页可以获得本说明书的多种语言的版本:
(简体) http://www.rockwellautomation.com/literature
。
请选择出版物的语言, 并在搜索栏输入"２２Ｃ－ＱＳ００１" 印。
http://www.rockwellautomation.com/literature
Publication 22C-PC001D-EN-P - January 2017
Русский Данное руководство на других языках можно найти по адресу
http://www.rockwellautomation.com/literature. Выберите язык и введите в окно поиска
«22C-QS001».
中文 以下網頁提供本說明書的多國語言版本：
http://www.rockwellautomation.com/literature
（繁體）
Český Tato stránka s pokyny je k dispozici ve více jazykových verzích na adrese
http://www.rockwellautomation.com/literature. Zvolte jazyk publikace a do vstupního pole
pro vyhledávání zadejte „22C-QS001".
Polski Niniejsza instrukcja dostępna jest w wielu językach na stronie
http://www.rockwellautomation.com/literature. Wybrać język publikacji, w polu
wyszukiwania wpisać "22C-QS001".
PowerFlex 400 User Manual 22C-UM001: Detailed information on the parameters and specifications of the
PowerFlex 400 adjustable frequency drive.
AC Drive Installation Considerations DRIVES-IN003: Provides additional information needed to properly
install PowerFlex AC drives.
Wiring and Grounding Guidelines for Pulse Width Modulated (PWM) AC Drives, publication DRIVES-IN001:
Provides basic information needed to properly wire and ground PWM AC drives.
Industrial Automation Wiring and Grounding Guidelines 1770-4.1: Provides general guidelines for
installing a Rockwell Automation industrial system.
Mounting Considerations
describes some important
• Mount the drive upright on a flat, vertical and level surface.
Frame Screw Size Screw Torque
C M5 (#10...24) 2.45...2.94 Nm (22...26 lb-in.)
D M8 (5/16 in.) 6.0...7.4 Nm (53.2...65.0 lb-in.)
E M8 (5/16 in.) 8.8...10.8 Nm (78.0...95.3 lb-in.)
or contact your local
F M10 (3/8 in.) 19.6...23.5 Nm (173.6...208.3 lb-in.)
G M12 (1/2 in.) 33.5...41.0 Nm (296.5...362.9 lb-in.)
H M12 (1/2 in.) 33.5...41.0 Nm (296.5...362.9 lb-in.)
• Protect the cooling fan by avoiding dust or metallic particles.
• Do not expose to a corrosive atmosphere.
• Protect from moisture and direct sunlight.
Minimum Mounting Clearances
Frame C Mounting Clearances
o póngase en
120 mm
(4.7 in.)
120 mm
ou entre em contato con seu escritório
(4.7 in.)
120 mm
(4.7 in.)
120 mm
(4.7 in.)
Mounting Option A
No clearance required
between drives.
Frames D, E and F Mounting Clearances
Frame D and E
，
50 mm
(2.0 in.)
Frames G and H Mounting Clearances
Ambient Operating Temperatures
Frame Temperature Range Enclosure Rating
.
C -10...45 °C (14...113 °F) IP20/UL Open Type
-10...45 °C (14...113 °F) IP30/NEMA 1/UL Type 1
-10...50 °C (14...122 °F) IP20/UL Open Type
D, E, F, -10...45 °C (14...113 °F) IP30/NEMA 1/UL Type 1
G, H
(1)
Frame C drives require installation of the PowerFlex 400 IP30/NEMA 1/UL Type 1 option kit to achieve this
rating.
。請選擇出版語言，並於搜尋欄鍵入
即可。
120 mm
(4.7 in.)
120 mm
(4.7 in.)
Closest object that
may restrict air flow
through the drive heat
sink and chassis
120 mm
(4.7 in.)
120 mm
(4.7 in.)
Mounting Option B
Frame F
250 mm
(9.8 in.)
150 mm
(6.0 in.)
50 mm 50 mm
(2.0 in.) (2.0 in.)
150 mm
150 mm
(6.0 in.)
(6.0 in.)
300 mm
(11.8 in.)
300 mm 300 mm
(11.8 in.) (11.8 in.)
300 mm
(11.8 in.)
Minimum Mounting
Clearances
Use Mounting Option A
(1)
Use Mounting Option B
Use Mounting Option B
See Frames D, E and F Mounting Clearances
and Frames G and H Mounting Clearances
Drive Dimensions
PowerFlex 400 Frames
Output Power Frame Size
kW HP 200...240V AC Input 400...480V AC Input
2.2...7.5 3...10 C
11...15 15...20 D
18.5...22 25...30 D
30...37 40...50 E
45...75 60...100 –
90...110 125...150 –
132...160 200...250 –
200...250 300...350 –
PowerFlex 400 Frames C...H
Dimensions are in mm and (in.). Weights are in kg and (lb).
IP20/NEMA/UL Type Open
A
D C
E
B
A B C
C 130.0 (5.1) 260.0 (10.2) 180.0 (7.1)
D 250.0 (9.84) 436.2 (17.17) 206.1 (8.11)
E 370.0 (14.57) 605.5 (23.84) 259.2 (10.21)
F 425.0 (16.73) 850.0 (33.46) 264.0 (10.39)
G 425.0 (16.73) 892.0 (35.12) 264.0 (10.39)
H 529.2 (20.83) 1363.8 (53.69) 358.6 (14.12)
(1)
Weights include HIM and Standard I/O.
Specifications, Fuses and Circuit Breakers
25 mm
Drive Ratings
(1.0 in.)
Catalog No. Output Rating Input Rating
kW Amps Voltage
(HP) Range
50 °C
200...240V AC – 3-Phase Input, 0...230V 3-Phase Output
22C-B012N103 2.2 (3.0) 12 180...265 6.5
22C-B017N103 3.7 (5.0) 17.5 180...265 8.8
22C-B024N103 5.5 (7.5) 24 180...265 10.9
22C-B033N103 7.5 (10) 33 180...265 14.4
22C-B049A103 11 (15) 49 180...265 21.3
22C-B065A103 15 (20) 65 180...265 28.3
22C-B075A103 18.5 (25) 75 180...265 32.5
22C-B090A103 22 (30) 81 180...265 38.3
22C-B120A103 30 (40) 120 180...265 51.6
22C-B145A103 37 (50) 130 180...265 62.4
380...480V AC – 3-Phase Input, 0...460V 3-Phase Output
22C-D6P0N103 2.2 (3.0) 6 340...528 6.3
22C-D010N103 4.0 (5.0) 10.5 340...528 10.9
22C-D012N103 5.5 (7.5) 12 340...528 11.9
22C-D017N103 7.5 (10) 17 340...528 15.3
22C-D022N103 11 (15) 22 340...528 19.2
22C-D030N103 15 (20) 27 340...528 25.8
22C-D038A103 18.5 (25) 38 340...528 33.3
22C-D045A103 22 (30) 45.5 340...528 39.1
22C-D060A103 30 (40) 54 340...528 53.3
22C-D072A103 37 (50) 72 340...528 60.7
22C-D088A103 45 (60) 88 340...528 74.9
22C-D105A103 55 (75) 105 340...528 89
22C-D142A103 75 (100) 128 340...528 124.8 150
22C-D170A103 90 (125) 170 340...528 142
22C-D208A103 110 (150) 208 340...528 167
22C-D260A103 132 (200) 260 340...528 196
22C-D310A103 160 (250) 290 340...528 242
50 mm
(2.0 in.)
22C-D370A103 200 (300) 370 340...528 304
22C-D460A103 250 (350) 410 340...528 387
(1)
Recommended Fuse Type: UL Class J, CC, T or Type BS88; 600V (550V) or equivalent.
(2)
Refer to the MCS Miniature Modular Control System Selection Guide, publication
the frame and breaking capacity required for your application.
(3)
The AIC ratings of the Bulletin 140M Motor Protector Circuit Breakers may vary. See
Protection Circuit Breakers Application Ratings.
(4)
Manual Self-Protected (Type E) Combination Motor Controller, UL listed for 208 Wye or Delta, 240 Wye or
Delta, 480Y/277 or 600Y/347. Not UL listed for use on 480V or 600V Delta/Delta, corner ground, or
high-resistance ground systems.
(5)
When using a Manual Self-Protected (Type E) Combination Motor Controller, the drive must be installed in a
ventilated or non-ventilated enclosure with the minimum volume specified in this column. Application specific
thermal considerations may require a larger enclosure.
Agency Certifications
Listed to UL508C and CAN/CSA-22.2
U L
C ® US
Marked for all applicable European Directives
EMC Directive: 2014/30/EU: EN 61800-3
LV Directive: 2014/35/EU: EN 61800-5-1
The drive is also designed to meet the appropriate portions of the following specifications:
NFPA 70 – US National Electrical Code
NEMA ICS 3.1 – Safety standards for Construction and Guide for Selection, Installation and Operation
of Adjustable Speed Drive Systems.
IEC 146 – International Electrical Code.
Control Inputs
Digital inputs, programmable/semi-programmable
SRC (Source) mode: SNK (Sink) mode:
18...24V = ON 0...6V = ON
0...6V = OFF 18...24V = OFF
Control Outputs
Relay output, programmable Opto outputs, programmable
form C
Resistive rating: 3.0 A @ 30V DC, 30V DC, 50 mA non-inductive
125V AC and 240V AC
Inductive rating: 0.5 A @ 30V DC,
125V AC and 240V AC
Protective Features
Motor Protection:
2
I t overload protection – 110% for 60 s (Provides Class 10 protection)
Overcurrent: 180% hardware limit, 220% instantaneous fault
C
C
D
E
E
F
G
H
Flange Mount for Frame C
IP20/66 (NEMA Type 1/4X/12)
244
300
(9.61)
(11.81)
325
(12.8)
24.5 105.8 138.2
(0.96) (4.17) (5.44)
D E (1)
Weight
116.0 (4.57) 246.0 (9.7) 4.33 (9.5)
226.0 (8.90) 383.4 (15.09) 14.0 (30.9)
335.0 (13.19) 567.4 (22.34) 51.2 (112.9)
381.0 (15.00) 647.5 (25.49) 88.0 (194.0)
381.0 (15.00) 819.5 (32.26) 106 (233.7)
480.0 (18.90) 1119.0 (44.06) 177 (390.2)
Branch Circuit Protection Power
Dissi-
pation
kVA Amps Fuses 140M Motor Min. IP20
(1) Protectors Enclosure Open
(5)
(2) (3) (4) Volume Watts
3
(in. )
15.5 20 140M-F8E-C16 5098 146
21 30 140M-F8E-C25 5098 207
26.1 35 140M-F8E-C32 5098 266
34.6 45 140M-F8E-C45 5098 359
51 70 – – 488
68 90 – – 650
78 100 – – 734
92 125 – – 778
124 175 – – 1055
150 200 – – 1200
7.5 10 140M-D8E-C10 5098 105
13 20 140M-D8E-C16 5098 171
14.2 20 140M-D8E-C16 5098 200
18.4 25 140M-D8E-C20 5098 267
23 30 140M-F8E-C32 5098 329
31 40 140M-F8E-C32 5098 435
40 50 140M-F8E-C45 9086 606
47 60 – – 738
64 80 – – 664
73 100 – – 1019
90 125 – – 1245
107 150 – – 1487
200 – – 2043
170 250 – – 2617
200 250 – – 3601
235 300 – – 3711
290 400 – – 4208
365 500 – – 4916
465 600 – – 6167
MCS-SG001 to determine
Bulletin 140M Motor
Certified to AS/NZS, 1997 Group 1,
Class A
Analog inputs, isolated -10...10V or 4...20 mA/
non-isolated 0...10V or 4...20 mA
Resolution: 10-bit
4...20 mA analog: 250  input impedance
0...10V DC analog: 100 k input impedance
External pot: 1...10 k, 2 W min
Analog output, non-isolated
Resolution: 10-bit
0...10V DC analog: 1 k min
4...20 mA analog: 525  max
