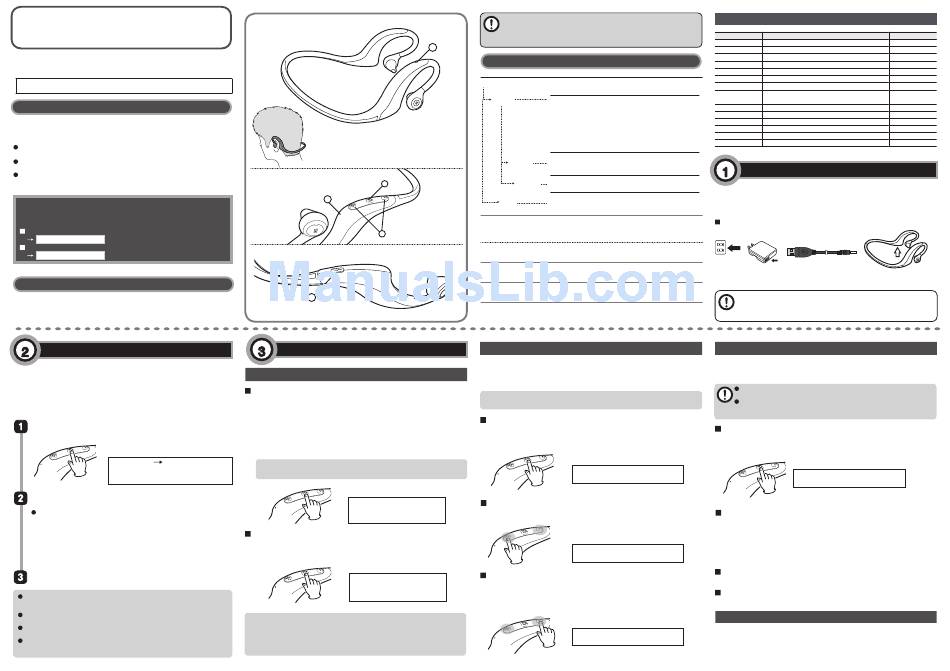

Elecom LBT-AVNB02 User Manual

Supports Bluetooth 2.1 + EDR
Bluetooth Wireless Headset
LBT-AVNB02 series
User's Manual V01
Thank you for purchasing this quality ELECOM product. This manual contains instructions on
how to use this Bluetooth wireless headset, as well as precautions for safe handling. Ensure
that you have read this manual before using the product. After reading this manual, store it
somewhere safe for future reference.
Unless specifically indicated otherwise, all explanations in this manual are based on the
LBT-NB02. Operation is the same for all models.
Product Features
Use this product to enjoy wireless audio playback capability on your Bluetooth-equipped
smartphone or mobile phone. Furthermore, a microphone is also incorporated allowing you to
use this product as a headset for hands-free communications. Bluetooth 2.1 + EDR support
simplifies pairing with other devices that support the standard.
This sure-fit neck band type headset features an IPX4 level splash-resistant design that makes
it very resistant to sweat and rain, and perfect for enjoying music while running or exercising.
A connected player (AVRCP compatible) can be controlled using the headset buttons. This makes
it possible to track skip forward, track skip reverse, and adjust volume without operating the player.
Equipped with an integrated microphone for hands-free conversation when connected to a
compatible smartphone or mobile phone. Easily handle unexpected calls during busy times,
and avoid missed calls.
This product is intended for connection and use with a Bluetooth-capable device. Pairing
registration must be performed before using this product with the intended device
(smartphone/audio player, etc.).
Necessary information when connecting:
Product device name when detected in a search from a mobile device:
LBT-NB02
Link Key :
0000 (Four zeros)
* Link Key entry is required when connecting to devices using Bluetooth 2.0 or earlier.
Package Contents
• Headset x1 • USB charging cable x1
• User's Manual (this document) x1
S T E P
2 Pairing (Registering with the device)
In order to use this product with a portable audio player or mobile phone, the device must be
registered for pairing (an initial registration process with the device). Please refer to the manual
included with your mobile device for information regarding the operation of that device.
If your device is already paired (registered), all you have to do is turn it on, after that it is hands-free.
When power is turned ON, the device reconnects automatically. If reconnection does not occur
automatically, perform a connection from either the headset or the connecting device.
With the power turned OFF, push and hold the Multi-function button for at
least 8 seconds. The LED lamp begins to blink red and blue.
Continue holding down the button, and within the
next 5 seconds the LED lamp displays as follows:
Blinks blue Flashes red and blue
alternately
several times
(for approx. 3 secs. (for approx. 5 secs.
after power turns ON) after pairing mode is entered)
Search for the headset from the device with which you wish to pair (mobile
phone, audio player, etc.).
The search method varies depending on the device you are using. Please refer to the
manual included with your device for information regarding the operation of that device.
When your mobile phone or portable audio player locates the main unit, the device
name [LBT-NB02] will appear at the top of the search results screen. Select and
register this device.
If a message appears prompting you to enter a link key, enter [0000] (four zeros).
* With a Bluetooth 2.1 device, it may be possible to complete registration without the
need to enter a link key.
The LED lamp will blink blue in a loose pattern when pairing is completed. (Refer
to the function list for this product for information about the blinking pattern.)
Up to eight sets of pairing information can be stored. Registering a ninth set of pairing
information will cause the current oldest set to be automatically deleted. If reconnecting to a
device which was erased from the memory, pairing must be performed again.
A mobile phone must be equipped with a Bluetooth Audio/Video Remote Control Profile
(A2DP) to be used as an audio player with this headset.
If pairing fails due to a setting in the destination device, etc., immediately reset the power
and try again.
This product conforms to Bluetooth 2.1+ EDR standards. It may be possible to bypass link
key entry when connecting to another Bluetooth 2.1+ EDR device.
Part Names
Wearing the Headset
Wear the headset so the left and right channel arms rests
between your ears and head.
Incorrectly wearing the headset can cause it to come off
during vigorous exercise.
Controls
1
Right
4
2
Left
5
S T E P
3 Basic Operation
Power ON/OFF
Power ON
Press and hold the Multi-function button until the LED lamp blinks blue several times
(approx. 5 sec.).
The headset will automatically connect to any devices in range on which pairing has already
been performed. If the reconnect does not occur automatically, press the Multi-function
button on the headset once or twice, confirm settings on the destination device (mobile
phone, etc.) and attempt to perform a connection from the device.If you still cannot
reconnect, perform the pairing operation again. If a paired device cannot be found and
connection is not established, the LED lamp will continue to blink blue once every 3 seconds.
You may need to approve or authenticate the headset connection (device name
LBT-NB02) or perform a [Connection] procedure from the mobile device.
Press and hold until the LED lamp
blinks blue several times
(power turns ON in approx. 5 secs.).
Power OFF
With the power turned ON, press and hold the Multi-function button for at least 5 seconds.
The LED lamp will blink red then turn off, indicating that the device power is now OFF.
Press and hold until the LED lamp
blinks red several times.
(Power turns OFF in approx. 5 secs.)
Auto-power OFF feature
If no pairing device is found when turning the power ON after it has been off, or after a
connected device has lost its connection, the LED will blink red after approx. 5 minutes and
the device will automatically turn off.
Important Notice
The included USB charging cable is meant for use with this product ONLY. Do not use
this cable for any purpose other than charging this product. Although the connector type
may be the same, differences in electrical poles and output may cause damage. Similarly,
do not use the charging cable included with another product to charge this product.
3
Names and Functions of Individual Parts
 Multi-function button Use for establishing connections or to toggle a connected device between
play and pause.
Press and hold for approx. 3 seconds, the LED lamp blinks blue and the
Power ON
power turns ON.
 When the power is turned ON, the headset will attempt to connect to any
paired devices within range. Depending on the device and how it is
operated, the headset or the destination device may need to be connected.
 After connection is established, the status of the headset can be checked
using the LED lamp. Please refer to the Function list.
 If no paired devices are in range, perform a pairing operation with a new
device.
Play/pause music. Play/pause music when connected to a device that
Play/pause
supports AVRCP remote control functions. Serves as a mute button when
connected to a device without AVRCP capability.
When the power is turned ON, press and hold for 3 seconds. The LED
Power OFF
blinks red and the power will turn OFF.
When the power is turned OFF, press and hold for at least 5 seconds to
Pairing switch to pairing mode (able to be searched/detected from mobile devices,
(registration of device) etc.). When in pairing mode, the LED lamp alternately blinks red and blue.
When the headset is connected with a device that supports AVRCP (remote
 Track skip forward /
control function), holding down the minus side for two seconds performs track skip
Track skip reverse
forward. Holding down the plus side for two seconds performs track skip reverse.
Press the plus side to increase volume. Press the minus side to decrease
 Volume button
volume.
The LED lamp indicates power and device status.
 LED lamp
Please refer to the Function list.
A microphone for use in phone conversation when connected with
 Phone mic
Hands-Free Profile or Profile.
Connect with the included USB charging cable to charge the headset. To
 Charging connector
maintain splash-resistance, be sure to fasten the cap in place before
using the headsets.
Listening to Music
When this headset is connected to a mobile phone or portable audio player with A2DP
support, you can listen to audio played from that device on this headset.
Also, when connected to a device with AVRCP (remote control capability), the device can be
controlled remotely by this headset.
The remote control functions may vary depending on the device connected and the audio
player application being used, and in some cases may not work.
Play/Pause/Mute
Perform with the Play/Pause button.
Press the Play/Pause button to pause the music that is currently playing.
If the device is not AVRCP-capable, this becomes a mute function.
Press the Multi-function button quickly.
Volume adjustment
Adjust the volume by pressing the Volume button quickly. Pressing [+] increases volume,
while pressing [-] decreases volume.
Press the Volume button quickly.
Track skip forward/Track skip reverse
Hold down the Volume button for about two seconds to perform track skip forward
or track skip reverse.
Holding down [-] performs track skip forward, while holding down [+] performs
track skip reverse.
* Depending on the connected device, some functions may not work as specified.
Hold down the Volume button
for about two seconds.
Function List
Function/Status Operation
Power ON Press and hold the Multi-function button for approx. 3 seconds Blinking blue
Blinks blue once every 3 seconds
Powered ON Not connected to any devices
Blinks blue twice every 4 seconds
Connected to a device
Power OFF Press and hold the Multi-function button for approx. 3 seconds Blinks red then turns off
-
Charging Lights red
-
Charging complete Unlit
Not enough charge in battery Blinks red twice every 30 seconds
When the power is off, press and hold the Multi-function button Alternately blinking
Pairing mode
for approx. 5 seconds red and blue
Volume adjustment Press the Volume button.
Pause/Mute Press the Multi-function button once
Track skip forward/reverse Hold down the Volume button.
Answer call Quickly press the Multi-function button once when phone is ringing.
Hang up phone Quickly press the Multi-function button once when in a call.
Redial Press the Multi-function button two times when in standby Rapidly blinking blue
S T E P
1 Charging
This product must be charged before use.
To charge the product, connect the included USB cable to a commercially available USB-AC
adapter, or to the USB power source of a PC that is conducting electrical power.
Connect to the charging
Connect to a commercially available
connector of this product.
USB-AC adapter or a computer USB port.
To AC wall outlet
USB charging cable
The LED lamp lights red during charging,
and turns off when charging is complete.
Allow approx. two hours for charging to complete. If the LED lamp has not turned
off after two hours, immediately disconnect the charging cable and stop charging.
Charging for more than two hours can shorten the battery life and may lead to
device failure.
Making a Call on a Mobile Phone, etc.
Phone conversation can be performed through the microphone on the headset when
connected to a smartphone or mobile phone with HFP/HSP capability. This product is
equipped with a microphone located on the right side front of the headset.
The following functions can only be used when Head-Set Profile (HSP) or
Hands-Free Profile (HFP) pairing has been performed.
Depending on the device specifications, your mobile phone may behave in a different
manner than described in relation to the operation of this product. Please refer to the
manual of your mobile phone.
Receiving a call
When a call is received, you will hear a ringtone. If music is playing at this time, it will be
interrupted. Press the Multi-function button to answer the call and begin talking.
* Depending on the device specifications, ringtones may not be heard on the Bluetooth
headset.
Press the Multi-function button
when you hear the ringtone.
Placing a call
To place an arbitrary call, switch the sound output setting after dialling the recipient number.
For iPhone 4
After the call, change the sound output setting to LBT-NB02 (the device name for this product).
For Android
After the call, press the Menu button and then press the Bluetooth button.
Refer to the manual of your mobile phone for information of switching the sound output setting.
Hanging up
When in a call, press the Multi-function button once to hang up.
Redialling
Press the Multi-function button two times.
Voice Conversation Using a PC
When performing voice conversation on a PC, control conversation start/end on the PC side. Please
refer to the manual for the software or OS which you are using for information on how to start/end a
voice call on your PC. For detailed information, please refer to the online help of the software or OS
which you are using.
Continue in the background
LED Display
-
-
-
-
-
