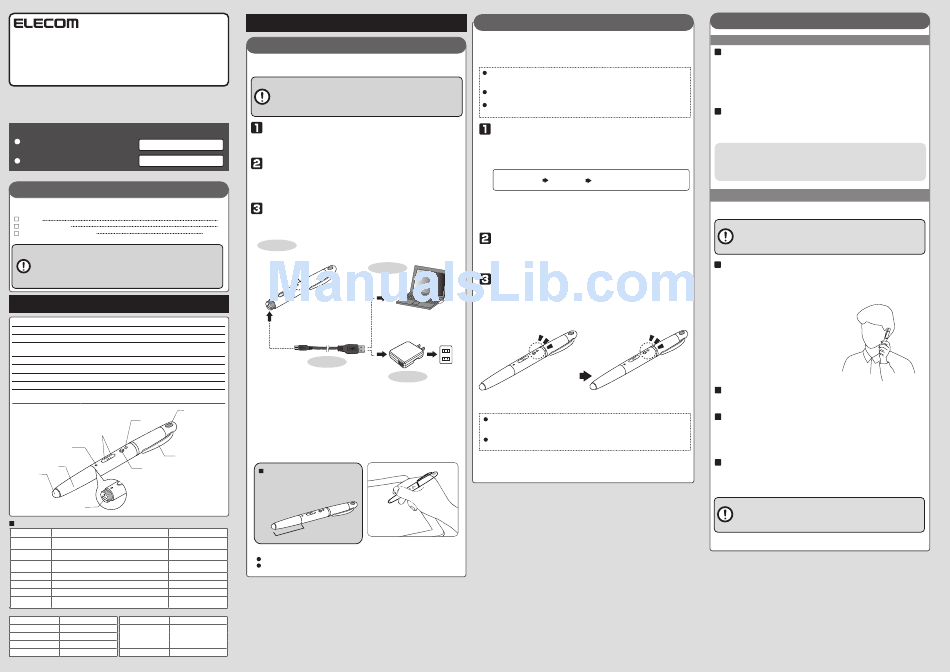

Elecom LBT-MPPHS01 series User Manual

User's Manual
Bluetooth ver3.0
Stylus type
Bluetooth headset
LBT-MPPHS01 series
* In this user's manual, this product is generally referred to as [LBT-PHS01] unless there is a specific reason
to refer to it as otherwise.
Thank you for purchasing this quality ELECOM product.
This user's manual explains the methods for the proper and safe usage of this stylus
type Bluetooth headset. Use this product after carefully reading and understanding the
contents of this manual. Store this document safely in a place where it can be accessed
whenever it is needed.
Necessary information when connecting:
Product device name when detected
LBT-PHS01
in a search from a mobile device:
Link Key: 0000 (Four zeros)
* If connecting to a device which uses Bluetooth 2.1 or later, it is not necessary to enter a link key.
Package Contents
The following are included in the package for this product. Confirm package
contents before using.
Headset
USB charging cable
User's Manual (this document)
Important Notice
The included USB charging cable is meant for use with this product ONLY.
Do not use this cable for any purpose other than charging this product.
Even if the connector type is the same, the pin configuration may differ and
cause a malfunction. Similarly, do not use a charging cable included with
another product to charge this product.
Part Names
 Speaker Outputs sound. Use this by holding it close to your ear.
 Clip
Clips to your shirt, breast pocket, etc. to secure the headset.
 LED lamp Two-color (red and blue) LED lamp that displays pairing and power status.
 Multi-function button This button controls functions such as power ON/OFF, pairing, answering/
terminating a call, etc.
 Volume button ( /  ) Press  to increse volume or  to decrese volume.
 Microphone Microphone to input sound.
 Charging connector Insert the included USB cable to charge.
 Grip
Remove grip when charging.
 Stylus tip Stylus tip that supports an electrostatic touch panel.
* May be less responsive when a protective film is used.









Primary operations
Operation LED display
When the power is OFF, press and hold the multi-function
Power ON Lights blue for 1 second > Off
button for approximately 3 seconds or more.
When the power is ON, press and hold the multi-function
Power OFF Lights red for 1 second > Off
button for approximately 3 seconds or more.
When the power is OFF , press and hold the multi-function Alternately blinking red and
Pairing mode
button for approximately 5 seconds or more.
Volume adjustment Press the volume button (/) once.
Answer call When a call is received, press the multi-function button once.
Terminate call During a call, press and hold the multi-function button for approx. 1 second.
When a call is received, press the volume buttons (/)
Reject call
twice at the same time.
Product status
LED display LED display
Charging Lights red
Blinks every 6 seconds in
pairing mode
Charging complete Lights blue Standby mode
Blinks every 10 seconds in
non-pairing mode
Receiving a call Blinks blue approx. every 1 second
During a call Blinks blue approx. every 3 seconds Not enough battery charge remaining Blinks red every 5 seconds
How to use this product
Before using
Vo.2
This product must be charged before use.
Use the included USB cable to charge.
It takes about 2 hours before charging is completed. If the LED does
not change to blue after 2 hours, immediately disconnect the charging
cable and stop charging. Charging for more than two hours can
shorten the battery life and may lead to device failure. Also, the
product cannot be used while being charged.
Turn the grip to remove it and connect the charging
connector to the plug.
Connect the microB connector of the included USB charging cable to the
charging connector.
Via the USB charging cable, connect the headset to
a PC, USB AC adapter or other USB power source.
Connect the series A connector of the USB charging cable to the USB port of
your PC, etc.
* If the PC is not connected to a power source, it will not output charging power.
Charging is completed when the LED lamp changes
to blue.
1
1
[Charging connection]
1 sheet
Headset
Lights red when charging.
Lights blue when charging is complete.
To PC USB port
Turn the grip to
remove it.
microB Series A
connector connector
USB charging cable
Be careful of the connector
orientation with connecting.
(Cannot be connected in reverse.)
Recommended AC adapters
(commercially available)
Can also be charged by connecting to a
separately-sold ELECOM AC adapter.
• AVA-ACU series
• AVA-PA10ACU series
While this product is compatible with capacitive touch panels, it may not respond
well when held near the top, when used while wearing gloves, or when used in a
similar fashion. When using this product as a stylus, always hold the grip with a
bare hand.
Correct usage
When holding the stylus, hold the grip
(the part that can be removed) in the
same way that you would normally hold
a ballpoint pen.
Grip
* Hold the pen near the tip as though using
an ordinary ballpoint pen
*Note - The pen will not work in the following situations:
When held near the top
When used while wearing gloves
blue
—
—
—
—
How to perform pairing
To use this product with a mobile phone or smartphone, it is required to perform the
pairing function (registering the device for the first time) with the device with which you
want to use the product.
Please refer to the manual of your device for information regarding the operation of
the device.
Up to 8 pairing devices can be stored in memory. If more than 8 devices are stored, the oldest
device in memory will be erased. If reconnecting to a device which was erased from the
memory, pairing must be performed again.
If pairing cannot be completed due to problems such as a setting on the connection device,
turn off the power once, and try again.
This product conforms to Bluetooth 3.0 standards. If connecting to a device which uses
Bluetooth 2.1 or later, it is not necessary to enter a link key.
Enter the headset into pairing mode
With the power of this product turned OFF, press and hold the multi-function
button for 5 seconds or more. When the LED lamp begins alternately blinking red
and blue, the device has entered pairing mode.
When pressing and holding the button for 5 seconds, the LED lamp will display
as follows:
Light is off Blinks blue
(Power OFF) (Power ON)
* If any devices which have already been paired are nearby, you can take your finger off
of the button as soon as the power turns on. Reconnection will occur automatically.
Depending on the device, an automatic reconnection function may not be available. In
that case, the device may be connected by pressing the multi-function button several
times. Some operation may also be required on the connected device.
Searching for the headset from the connection device
Perform a search for this product from the pairing device (smartphone, tablet, or
mobile phone).
Search method varies depending on the device you are using. For information
about searching from your device, please refer to the manual of your device.
PC
Register the headset with the device with which you
want to perform pairing.
When this product is detected from a smartphone, tablet, or mobile phone, it
displays as [LBT-PHS01]. Please select and register this item.
When pairing is complete the LED lamp will blink blue in a loose pattern (approx.
If the PC is not connected to a
once every 6 seconds). Then, connection will occur automatically.*
power source, it will not output
charging power.
Red/Blue
To USB terminal To AC wall outlet
USB AC adapter
Blinks alternately red/blue
(pairing)
When using this headset with your mobile phone or smartphone, it is recommended that you
pair them using the Hands-Free Profile (HFP) to make the functions of the phone available on
this product. If Hands-Free Profile is not available, use Headset Profile (HSP) for pairing.
If a message appears prompting you to enter a link key, enter [0000] (four zeros). Depending on
the device (Bluetooth 2.1 or later), registration may complete without having to enter a link key.
* Depending on the device, it may be necessary to perform a [Connection] procedure after
pairing is completed. Please refer to the manual of your mobile device for information, and
perform a [Connection] procedure if necessary.
Basic operation
(registering the device for the first time with the device)
Power ON/OFF
Turn power ON
With the power off, press and hold the multi-function button on this product for approx.
3 seconds. The LED lamp lights blue for 1 second and the product powers ON. The
headset will automatically connect to any devices in range on which pairing has
already been performed. When connection is completed, the LED lamp will begin to
blink blue in a loose pattern, and the device is now ready to use.
* You may need to approve or authenticate the headset connection (device name LBT-PHS01) or
perform a [Connection] procedure from the mobile device.
Turn power OFF
When the power is ON, press and hold the multi-function button on this device for
approx. 3 seconds. The LED lamp lights red for 1 second and then turns off, and the
product turns OFF.
About the auto power-off function
If there is no power or signal from a connected device or any paired devices
detected within approx. 5 minutes after turning this product on, this product will
automatically turn OFF. When the power is ON, the LED lamp blinks blue.
Alternately blinking red and blue
(Pairing mode)
Making a call on a mobile phone or smartphone
If your conversation partner cannot hear your voice clearly, move the microphone
closer to your mouth.
Answering a call
When a call is received on the connected device, the headset vibrates and the LED
lamp blinks blue.
Press the multi-function button once.
* A small incoming call ringing is output from the speaker. The volume cannot be adjusted.
* The vibration function cannot be turned off.
* Due to the device specifications, you cannot set incoming call
ringing to play on the Bluetooth headset.
Hold the speaker to your ear to talk.
Blue
The LED lamp blinks (once every 3
seconds) during conversation.
Terminating a call
Slowly blinks blue
When in conversation, press and hold the multi-function button for approx. 1 second.
(approx. once every 6 seconds)
(pairing completed)
Placing a call
To place a call, after dialling the recipient number switch the sound output setting.
iPhone 4: After placing a call, select (LBT-PHS01) as the sound output device.
Android: After placing a call, press the [Bluetooth] button on the screen.
* For information on switching the sound output on your mobile device, please refer to the manual of
that device.
Adjusting the volume
Perform using the volume button on this product. If you cannot achieve the desired
level of volume using the volume button on this product even when it is at maximum,
adjust the volume on the paired device.
Depending on the device specifications, your mobile phone or
smartphone may behave in a different manner than described in
relation to the operation of this product.
This product is not equipped with a redial function. Place a call from
your device and then change the sound output setting to this product.
