Lorex CVC2274P Owner's Manual

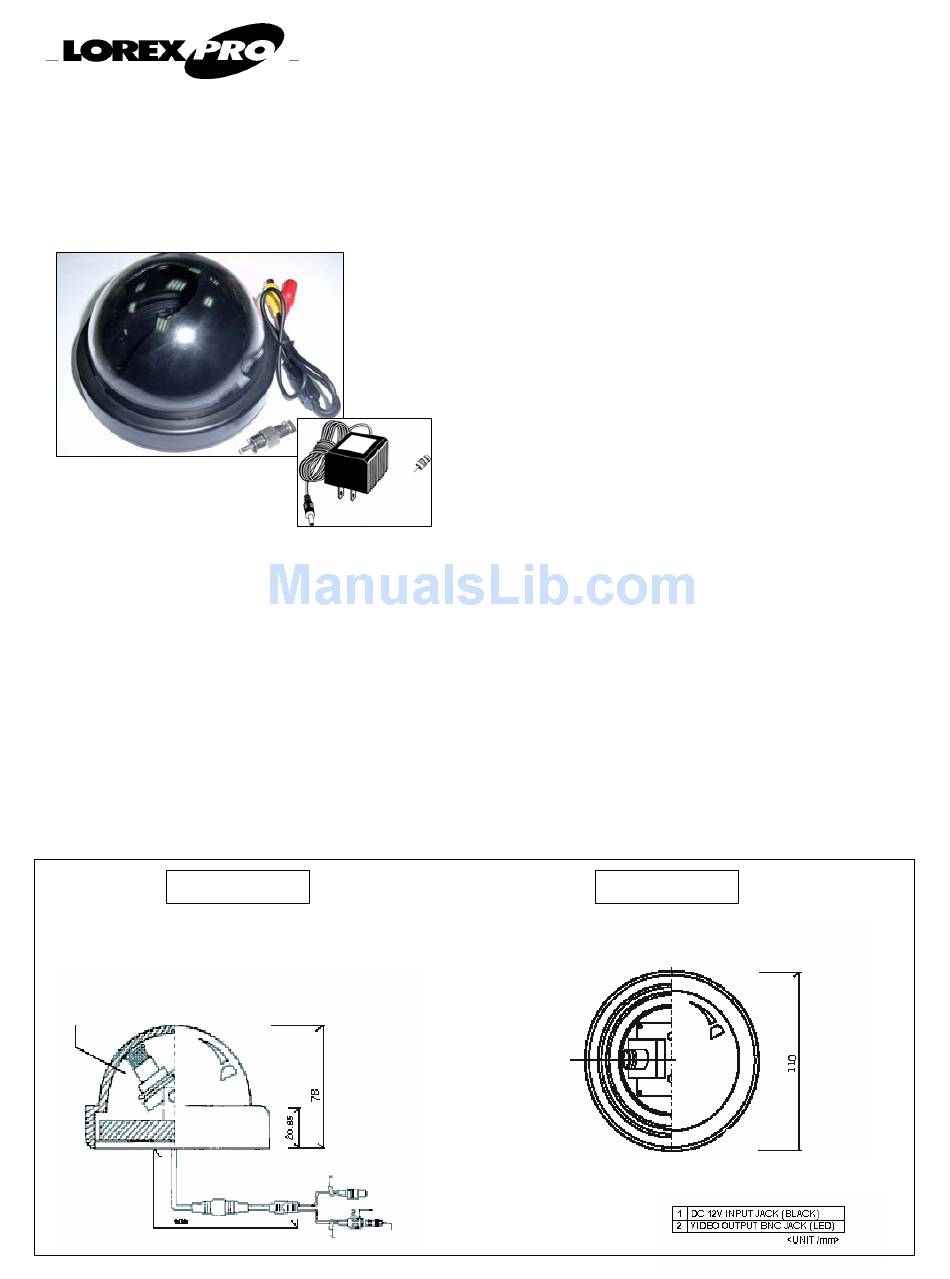

THIS PACKAGE CONTAINS:
B&W Dome Camera
with Finished Leads
INSTALLATION
• Mount the bracket with the supplied mounting screws.
• Screw the camera to the mounting bracket post.
• Supply 12V DC power to marked Power Cable using
the supplied 12V DC Adapter (center pole positive +).
• Connect video to the marked Video cable. Connect directly
to the RCA Jack or use the supplied RCA/BNC coupler.
• Adjust the camera direction for the desired picture view.

SIDE VIEW

CHROME COATING REFLECTED
ACRYLIC 2.0t
MODEL CVC2274P
1/3" CCD B&W DOME CAMERA
RCA/BNC Connector
12V DC Power Supply
+12V
1
VIDEO
• Built in 3.6mm Wide Angle Lens.
• Super 0.1 Lux Sensitivity.
• Smoked housing provides unobtrusive
appearance.
• Rotate camera 360° and/or tilted ± 90°
for optimum angle selection.
• Camera includes Finished Leads, Power
Supply and RCA/BNC Connector for Ease
of Installation.

TOP VIEW

RCA(female)
BNC(male)
FEATURES
