Lorex CVC2051P/R Manual

1/4 inch ccd color weatherproof bullet camera

Download this manual

1/4" CCD COLOR WEATHERPROOF BULLET CAMERA

THIS PACKAGE CONTAINS:

Color Weatherproof Bullet

Camera with Finished Leads

INSTALLATION

• Mount the bracket with the supplied mounting screws.

• Screw the camera to the mounting bracket post.

• Supply 12V DC power to marked Power Cable using the

supplied 12V DC Adapter (center pole positive +).

• Connect video to the marked Video cable. Connect directly

to the RCA Jack or use the supplied RCA/BNC coupler.

• Adjust the camera direction for the desired picture view.

DIMENSIONS

MODEL CVC2051P/R

RCA/BNC Connector

12V DC Power Supply

GENERAL FEATURES

• Ultra Small Size Allows For Simple Application

And Installation

• 1.0 Lux Minimum Illumination

• Built-in Electronic Auto Iris For Automatic Light

Compensation

• Extremely Low Power Consumption

• Ultra Compact Camera

• CCD Area Image Sensor For Long Camera Life

Do you have a question about the CVC2051P/R and is the answer not in the manual?

Page 1: General Features

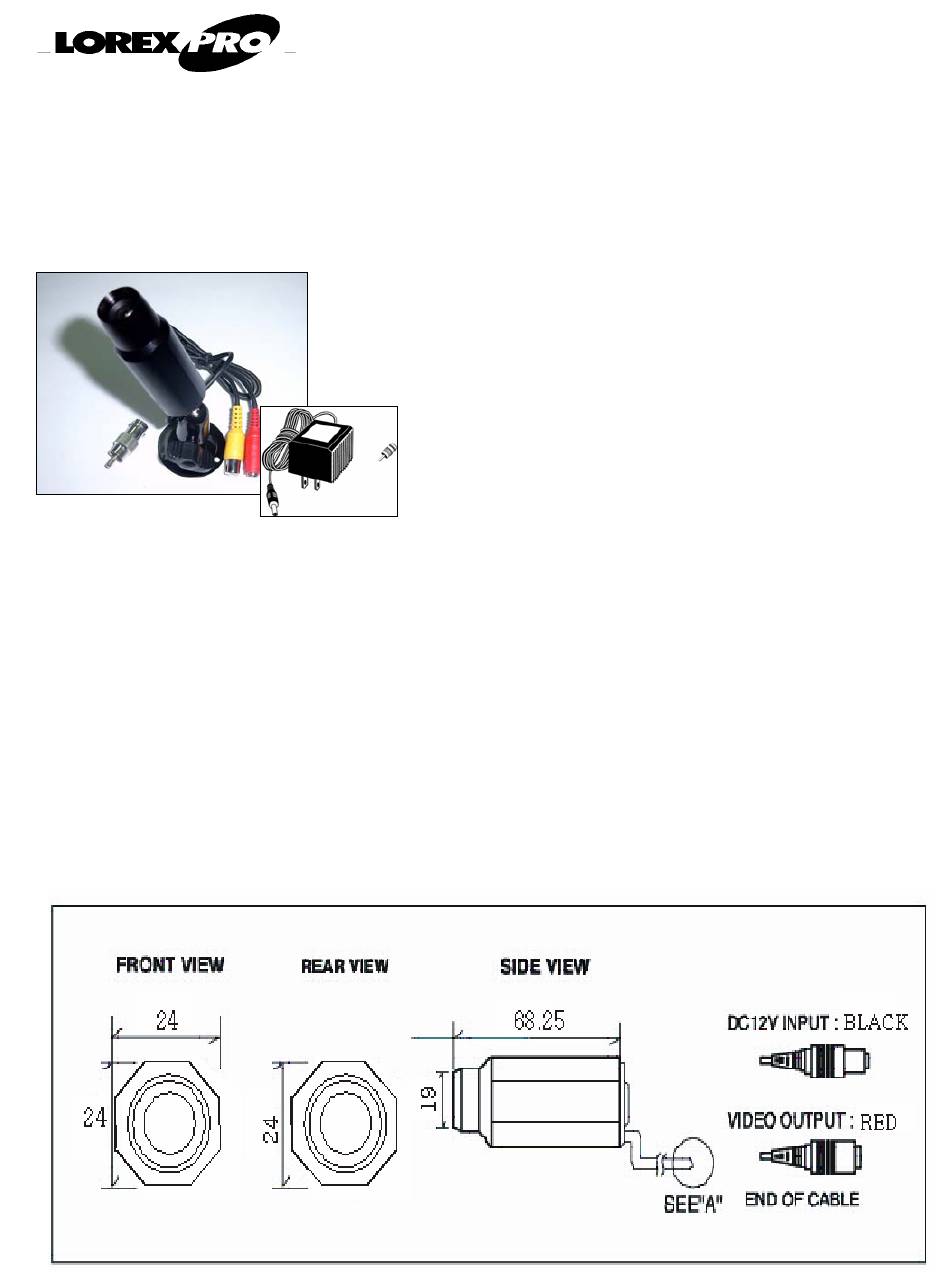

MODEL CVC2051P/R 1/4” CCD COLOR WEATHERPROOF BULLET CAMERA THIS PACKAGE CONTAINS: GENERAL FEATURES • Ultra Small Size Allows For Simple Application And Installation • 1.0 Lux Minimum Illumination • Built-in Electronic Auto Iris For Automatic Light Compensation • Extremely Low Power Consumption RCA/BNC Connector •...
Page 2: Specifications
SPECIFICATIONS Image Pickup Device 1/4” CCD Area Sensor TV System NTSC,PAL No. of Pixels NTSC = 510(H) x 492(V) PAL = 500(H) x 582(V) Pixel Pitch NTSC= 9.6 uM(H) x 7.5 uM(V) PAL = 9.8uM(H) x 6.3uM(V) Scanning System 2:1 Interlaced Sync System Internal Sync Resolution...
