Page 1: Installation Guide

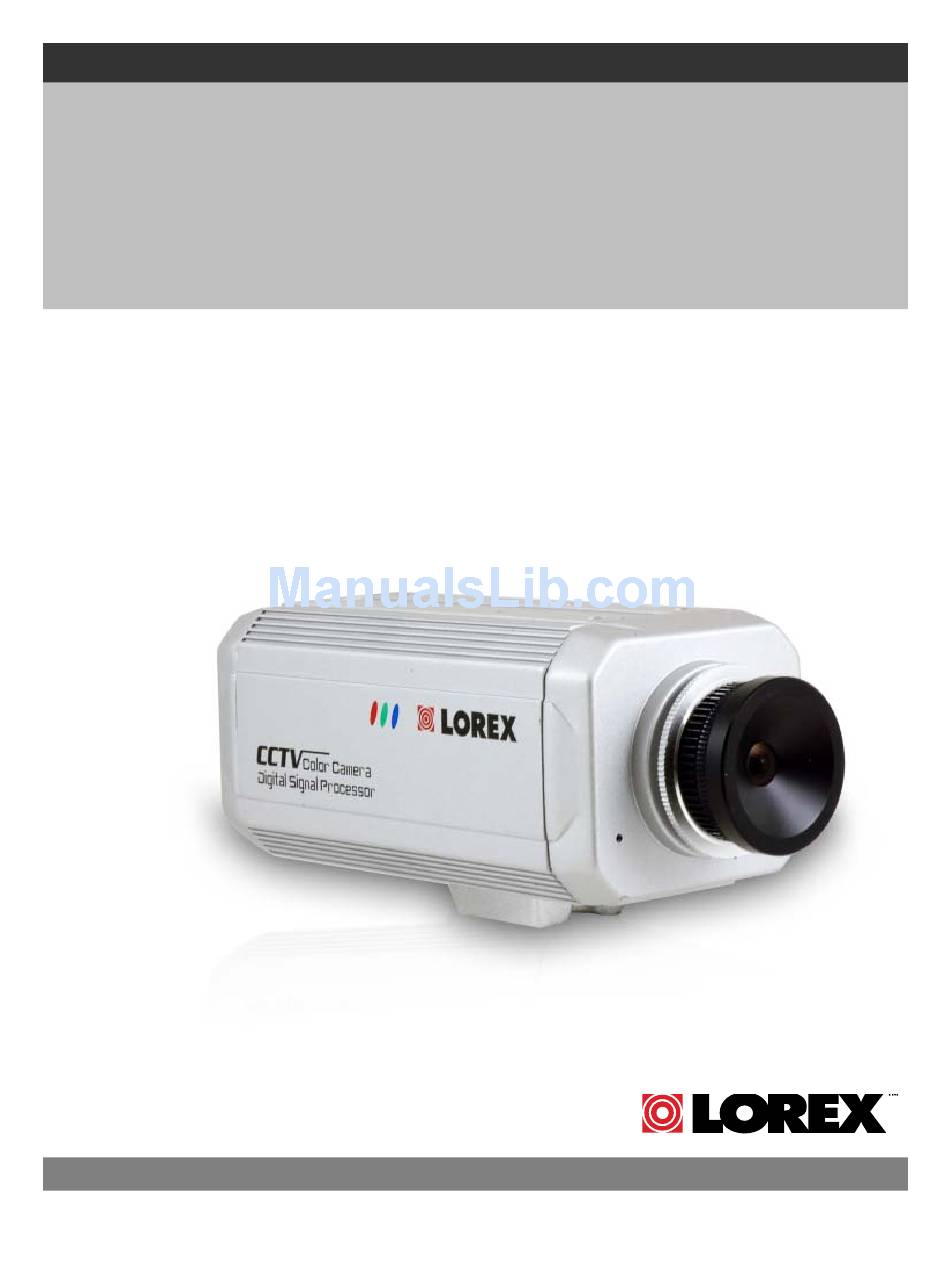

COLOR PRO-STYLE SURVEILLANCE CAMERA Installation Guide English Version1.0 MODEL: CVC8001 www.lorexcctv.com Copyright © 2008 Lorex Technology Inc. -
Page 2: Camera Features
Camera Features Camera Features • Large (1/3”) CCD Image Sensor for Exceptional Image Quality and Sharpness • Super Low Light Sensitivity with the Built-in High Sensitivity Produces Clear Images Even in Low Light Conditions • C/CS Lens Mount Allows for Lens Option Flexibility •... - Page 3 Camera Switches Please set the Camera Switches prior to powering on the Camera. ① Function Selection Switches: AUTO IRIS LENS Switch – Set the switch to either the “DC” or “VIDEO” position, depending on the type of lens attached to the camera. Set the switch to “DC”...
-
Page 4: Installing The Camera
Installing the Camera Installing the Camera 1. Mount the camera stand to the desired mounting surface. 2. Attach the Camera to the supplied stand at the connection point located on the bottom of the camera. Use the Thumbscrew on the stand to adjust the position and aim of the camera, and tighten the screw to secure the position. -
Page 5: Lens Installation
Lens Installation The lens on the Camera can be changed to one of the following types: Installing C-MOUNT LENS 1. Removing the Protection Cap 2. Screw the new lens onto the camera by turning clockwise. Installing CS-MOUNT LENS 1. Remove the Protection Cap and C-Mount Adapter. 2. -
Page 6: Camera Specifications
Camera Specifications Camera Specifications Model No. CVC8001 Type PROFESSIONAL COLOR CCD CAMERA Image Sensor 1/3 “COLOR CCD Effective Pixel 512(H)×492(V) Resolution 420 TV Line TV Type NTSC Sync. Type Internal Scanning System 2:1 Interlace Video Output 1.0V , Termination 75Ω... - Page 7 Notes: Notes:...
