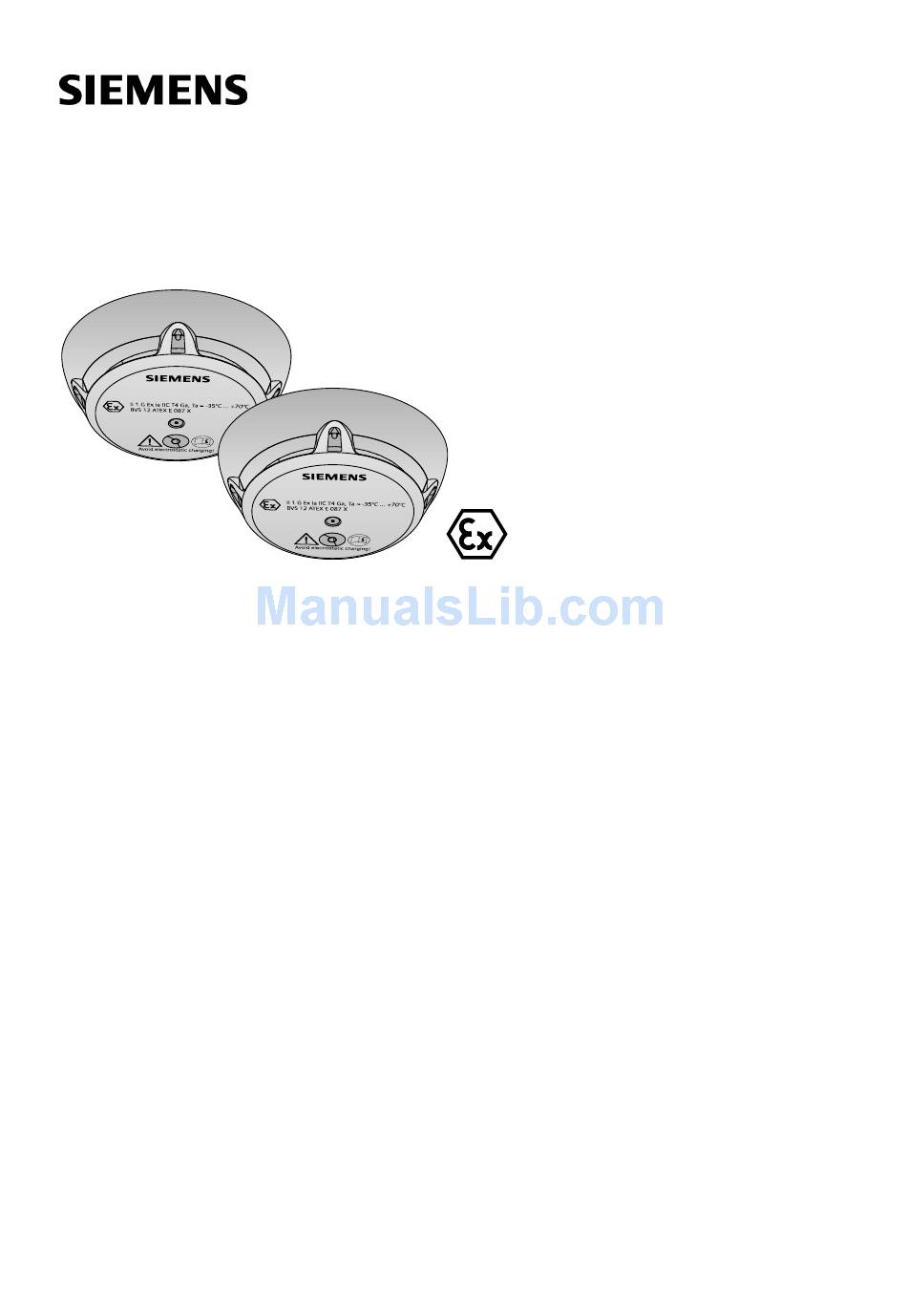

- Page 1 Modernizing fire detection installations with multiple protocol detectors in areas at risk of explosion Technical Manual Building Technologies A6V10443621_a_en_-- 2014-09-01 Control Products and Systems...
- Page 2 Legal notice Technical specifications and availability subject to change without notice. © 2014 Copyright by Siemens Switzerland Ltd Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without express authorization are prohibited.
-
Page 3: Table Of Contents
Table of contents About this document ..................5 Technical terms ....................7 Applicable documents ..................8 Download center ....................8 History of changes ....................9 Principles and conditions of modernization ..........10 Using multiple protocol detectors ............... 10 Characteristics of multiple protocol detectors ............ 10 Step-by-step modernization ................ - Page 4 Building Technologies A6V10443621_a_en_-- Fire Safety 2014-09-01...
-
Page 5: About This Document
1 About this document Goal and purpose This document only contains information about modernizing existing collective Ex detector lines with the following multiple protocol detectors: Neural fire detector FDOOT241-A9-Ex Neural fire detector OOH740-A9-Ex This document does not cover the process of planning new detector lines in areas at risk of explosion. - Page 6 About this document Technical terms Reference document and source language The source language of this document is German (de). The reference version of this document is the international version in English. The international version is not localized. The reference document has the following designation: ID_x_en_-- x = version, en = English, -- = international Document identification...
-
Page 7: Technical Terms
About this document Technical terms Technical terms Term Explanation Electromagnetic compatibility End-of-Line Product version Intrinsically safe Circuit in which the electrical values are limited to such an extent that there can be no source of ignition which could lead to an explosion. The conditions for intrinsic safety are defined in EN 60079- FDnet/C-NET Addressed detector line... -
Page 8: Applicable Documents
Planning, Mounting/Installation, Commissioning, Maintenance of fire detection installations with addressed detector lines in potentially explosive atmospheres A6V10346580 Technical Manual Automatic fire detector FDOOT241-A9-Ex A6V10367521 Technical Manual Automatic fire detector OOH740-A9-Ex Please also observe the documentation for your fire detection system. -
Page 9: History Of Changes
About this document History of changes History of changes The reference document's version applies to all languages into which the reference document is translated. The first edition of a language version or a country variant may, for example, be version 'd' instead of 'a' if the reference document is already this version. The table below shows this document's history of changes: Modification index Edition date Brief description... -
Page 10: Principles And Conditions Of Modernization
Installed point detectors can be replaced e.g. during scheduled maintenance visits by a service technician. Characteristics of multiple protocol detectors The multiple protocol detectors FDOOT241-A9-Ex and OOH740-A9-Ex may communicate via different detector line protocols. These detectors automatically recognize the protocol on the detector line (e.g., FDnet-Ex/C-NET-Ex or collective Ex) and switch to this protocol. -
Page 11: Step-By-Step Modernization
Principles and conditions of modernization Step-by-step modernization Step-by-step modernization Step-by-step modernization involves firstly replacing the existing detectors with ones which support both the current detector protocol – hereinafter referred to as the alternative protocol – and the FDnet-Ex/C-NET-Ex. The replaced detectors initially continue to be operated with the alternative protocol. -
Page 12: General Limitations On Modernization
Principles and conditions of modernization General limitations on modernization General limitations on modernization When planning a modernization, the following limitations must be taken into account: The following devices can generally not be replaced with a multiple protocol device: – All flame detectors –... -
Page 13: Limitations On The Collective Ex Detector Family
When using a point detector FDOOT241-A9-Ex or OOH740-A9-Ex on a collective Ex detector line, you must observe the following points: Only a stub topology is permitted for intrinsically safe collective Ex detector ... -
Page 14: Point Detectors And Base Adapters
Base adapter replaced detectors DO1101A-Ex Collective Ex: FDOOT241-A9-Ex - - - DT1101A-Ex Siemens/Cerberus OOH740-A9-Ex - - - DT1102A-Ex The point detectors FDOOT241-A9-Ex and OOH740-A9-Ex may not be installed using base adapters. Building Technologies A6V10443621_a_en_-- Fire Safety 2014-09-01... -
Page 15: Undertaking Modernization
The detector lines are still operated in collective mode. Non-Ex Area Ex Area Collective Ex-line DC1192 DO1101A- DT1101A- DT1102A- EOL22 (Ex) Collective Ex-line DC1192 FDOOT241-A9-Ex/ FDOOT241-A9-Ex/ FDOOT241-A9-Ex/ EOL22 OOH740-A9-Ex OOH740-A9-Ex OOH740-A9-Ex (Ex) Building Technologies A6V10443621_a_en_-- Fire Safety 2014-09-01... -
Page 16: Base Replacement
Risk of explosion ● When modernizing the collective Ex detector line, point detectors FDOOT241-A9-Ex and OOH740-A9-Ex may only be used with detector bases FDB20x or FDB22x. Do not use detector bases from the AlgoRex product range or base adapters. You will find information about installing the detector bases FDB20x and FDB22x in document A6V10208546. -
Page 17: Configuration Of Detector Type
Procedure: Detector bases FDB20x or FDB22x are installed. 1. Install a point detector FDOOT241-A9-Ex or OOH740-A9-Ex directly in the new detector base as a replacement for a point detector DO1101A-Ex. 2. If the point detector FDOOT241-A9-Ex or OOH740-A9-Ex is intended to replace a heat detector: Also install a standard resistor to set another parameter set. -
Page 18: Test The Detectors
Undertaking modernization Step 1: Detector modernization 4.1.3 Test the detectors 4.1.3.1 Test methods The various detector types can be tested with the following tools: Detector type Test method Tool Hot air RE7T DT (thermal) Detector exchanger and tester FDUD292, FDUD293 ... -
Page 19: Testing Detectors Without Detector Exchanger And Tester/Detector Tester
Undertaking modernization Step 1: Detector modernization 4.1.3.2 Testing detectors without detector exchanger and tester/detector tester The point detectors are highly resistant to deceptive phenomena. This means that optical fire detectors, for example, will recognize the immediate occurrence of smoke (such as that which occurs during testing with test gas) as a deceptive phenomenon and will not trigger an alarm. -
Page 20: Step 2: Replacing The Control Panel And Changing Over To Fdnet-Ex/C-Net-Ex Protocol
(top detector line in the diagram). Non-Ex Area Ex Area Collective Ex-line DC1192 DO1101A- DT1101A- DT1102A- FDOOT241-A9-Ex/ EOL22 OOH740-A9-Ex (Ex) Collective Ex-line DC1192 DM1103 EOL22 (Ex) Building Technologies... - Page 21 Undertaking modernization Step 2: Replacing the control panel and changing over to FDnet-Ex/C-NET-Ex protocol Migration to the following protocols can take place, depending on the control panel being used: FDnet-Ex: Use the multiple protocol detector FDOOT241-A9-Ex Non-Ex Area Ex Area FDnet...
-
Page 22: Converting Collective Ex Detector Lines
Step 2: Replacing the control panel and changing over to FDnet-Ex/C-NET-Ex protocol 4.2.3 Converting collective Ex detector lines When switching a collective Ex detector line with point detectors FDOOT241-A9-Ex or OOH740-A9-Ex, the following points must be observed in particular: Remove the EOL resistors on the collective Ex detector lines. -
Page 23: Configuration
Undertaking modernization Step 2: Replacing the control panel and changing over to FDnet-Ex/C-NET-Ex protocol 4.2.5 Configuration The multiple protocol detectors are configured directly on the control panel or using the relevant configuration software for the fire control panel. You will find information about configuration with the software for the respective fire detection system in the following documents: Fire detection Software... -
Page 24: Index
Index Index Alternative protocol, 11 Base adapter, 14 Configuration Cerberus PRO, 23 Sinteso, 23 Software, 23 Detector base Replacement, 16 Sinteso, 16 Detector line Topology, 12 Detectors/devices which cannot be replaced, 12 Documentation for fire detection system, 8 Download center URL, 8 Line card Replacing, 11... - Page 25 Index Building Technologies A6V10443621_a_en_-- Fire Safety 2014-09-01...
