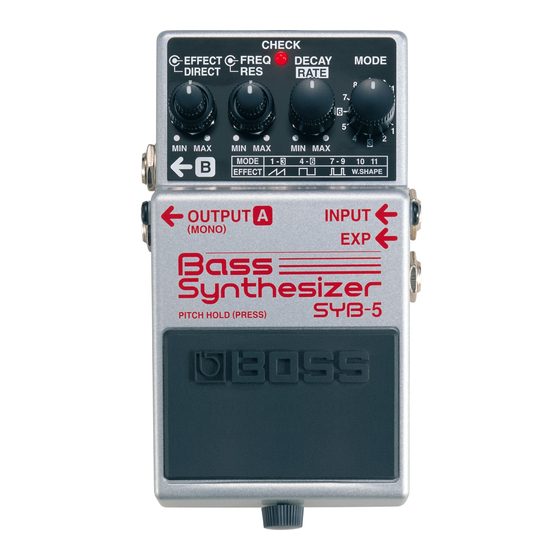

Boss SYB-5 Owner's Manual

Bass synthesizer
Hide thumbs Also See for SYB-5:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Owner's Manual
Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY"
and "IMPORTANT NOTES" (separate sheet). These sections provide important
information concerning the proper operation of the unit.
After reading, keep the document(s) where it will be available for immediate
reference.

Advertisement

Table of Contents
loading

Related Manuals for Boss SYB-5

Summary of Contents for Boss SYB-5

  • Page 1 Owner’s Manual Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (separate sheet). These sections provide important information concerning the proper operation of the unit. After reading, keep the document(s) where it will be available for immediate reference.

  • Page 2: Main Features

    7 In the stereo output mode, the effect sound (synthesizer sound) and direct sound can be output separately. 7 The SYB-5 not only works with four-string basses, it is compatible with five- and six-string basses as well (the range for detecting pitch is A0–C5).
  • Page 3 Panel Descriptions 1. DC IN jack 3. OUTPUT A (MONO) Jack, OUTPUT B Jack Accepts connection of an AC Adaptor (PSA series; sold The output jacks are used to connect the unit to amplifiers or separately). By using an AC Adaptor, you can play without being other devices.
  • Page 4 Panel Descriptions 8 9 10 11 12 13 5. EXP jack Connect an expression pedal (the optional Roland EV-5, BOSS EV-30) here. You can then use the expression pedal to change the bass synth sound. * For more details, refer to “Using the EXP Jack” (p. 12).
  • Page 5 Panel Descriptions 10. FREQ (frequency) knob 13. MODE knob This adjusts the frequency of the filter. This knob switches the tone. The sound becomes brighter as you turn the knob clockwise. For more on the tones for each mode, refer to the”Mode Chart” 11.
  • Page 6 Connections AC Adaptor (PSA series; sold separately) OUT 9V DC/500mA Bass Guitar Bass Amp Expression Pedal For mono use, make the connection to the Roland EV-5, OUTPUT A (MONO) BOSS EV-30, FV-500L, jack. FV-500H (Optional)
  • Page 7 Connections * To ensure stable conditions, connect the SYB-5 directly to your bass’s output. * When running the unit on battery power, inserting a plug into the INPUT Jack will automatically switch the unit on. * If operating this unit on batteries, please use alkaline batteries.

  • Page 8: Mode Chart

    * The SYB-5 not only works with four-string basses, it is compatible with five- and six-string basses as well (the range for detecting pitch is A0–C5).
  • Page 9 Mode Chart 10–11: WAVE SHAPE MODE This mode directly transforms the audio input from the bass guitar into a synthesized bass sound. The direction in which the frequency shifts differs depending on the number you select. 10: Up The frequency of the filter rises when the string is played, then gradually returns to the original frequency.

  • Page 10: Operating The Unit

    Operating the Unit 4. Set the DECAY/RATE knob to your taste, depending on the selected mode. When MODE is 1, 2, 4, 5, 7–11 Use the knob as a decay knob to set the time for the frequency of the filter to move. When MODE is 3, 6 Use the knob as a rate knob to adjust the speed at which the filter fluctuates.

  • Page 11: Using The Hold Function

    The Hold function remains in effect and the CHECK indicator flashes as long as you continue to press the Pedal Switch. In this state, the SYB-5 continues to output the effect sound. 5. To switch off the Hold function, release the Pedal Switch.

  • Page 12: Using The Exp Jack

    Using the EXP Jack With an expression pedal (the optional Roland EV-5, BOSS EV-30) connected to the EXP jack, you can then have the bass synth sound change as you move the pedal. * Use only the specified expression pedal (the optional Roland EV-5, BOSS EV-30). By connecting any other expression pedals, you risk causing malfunction and/or damage to the unit.

  • Page 13: Outputting The Direct Sound And Effect Sound Separately

    * In this case, sounds are output only from the OUTPUT B jack when the effect is switched off. Bass Amp Bass Guitar Multiple Effects, etc. Bass Amp * To ensure stable conditions, connect the SYB-5 directly to your bass's output. Connect any additional effects to the SYB-5’s OUTPUT A (MONO) or OUTPUT B jacks.

  • Page 14: Using The Mode Label

    Using the Mode Label The SYB-5 is supplied with a Mode Label which shows the effect obtained with each of the modes. The label (which serves as a quick reference) can be attached as shown in the illustration.

  • Page 15: Changing The Battery

    Changing the Battery 1. Hold down the pedal and loosen the thumbscrew, When the indicator goes dim or no longer lights while an effect is on, it means that the battery is nearly dead and must be then open the pedal upward. replaced.

  • Page 16: Setting Samples

    Setting Samples SAW WAVE SQUARE WAVE SLOW AUTO FILTER FAT SOUND...
  • Page 17 Setting Samples TALKING PULSE WIDTH MODULATION DEEP FILTER SWEEP...

  • Page 18: Main Specifications

    Main Specifications BOSS SYB-5: Bass Synthesizer Accessories Owner’s Manual, Mode Label, Leaflet (“USING THE UNIT SAFELY, ” Nominal Input Level -20 dBu “IMPORTANT NOTES, ” and Input Impedance 1 MΩ “Information”), Dry battery/9 V type (6LR61) Nominal Output Level -20 dBu...
