Boss SYB-5 Owner's Manual

Bass synthesizer
Hide thumbs Also See for SYB-5:
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
AC
DC
AC & BATTERY
POWERED
FET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SYB-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Boss SYB-5

Summary of Contents for Boss SYB-5

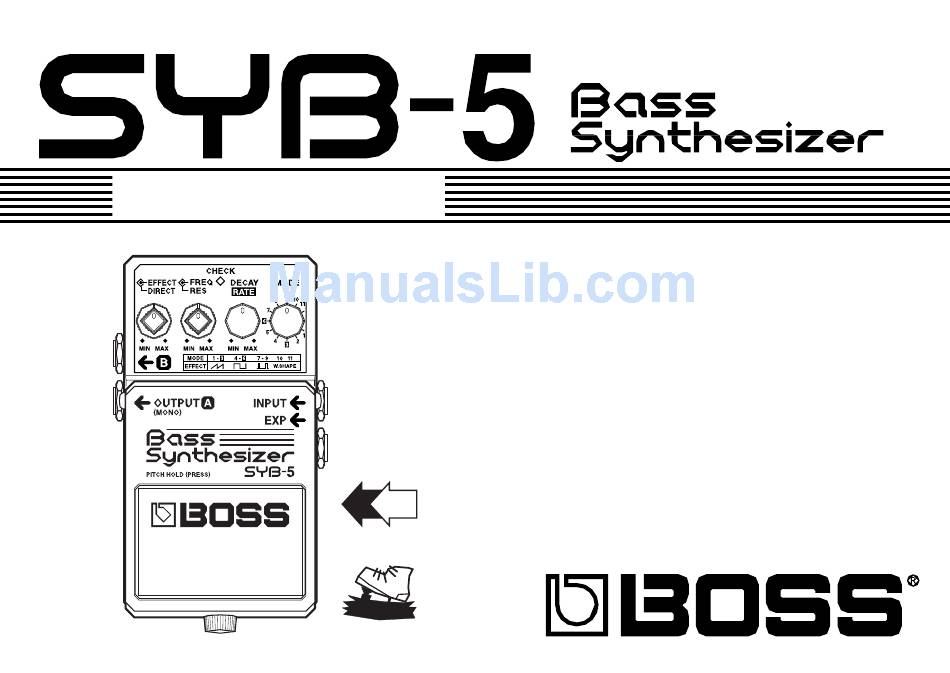

  • Page 1 Owner’s Manual AC & BATTERY POWERED...
  • Page 2 Thank you, and congratulations on your choice of BOSS SYB-5 Bass Synthesizer. Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (separate sheet). These sections provide important information con- cerning the proper operation of the unit.

  • Page 3: Main Features

    ● In the stereo output mode, the effect sound (synthesizer sound) and direct sound can be output separately. ● The SYB-5 not only works with four-string basses, it is compatible with five- and six-string basses as well (the range for detecting pitch is A0–C5).

  • Page 4: Ac Adaptor Jack

    Panel Descriptions fig.01 1. AC Adaptor Jack Accepts connection of an AC Adaptor (op- tionally available BOSS PSA-series). By using an AC Adaptor, you can play without being concerned about how much battery power you have left. * As soon as you connect the AC adaptor, the unit is turned on.

  • Page 5: Input Jack

    5. EXP Jack Connect an expression pedal (the optional Roland EV-5) here. You can then use the ex- pression pedal to change the bass synth sound. * For more details, refer to “Using the EXP Jack” (p.
  • Page 6 Panel Descriptions 6. Pedal Switch This switch turns the effects on/off. This is also used for the Hold function. 7. Thumbscrew When this screw is loosened, the pedal will open, allowing you to change the battery. * For instructions on changing the battery, refer to “Changing the Battery”...

  • Page 7: Mode Knob

    9. DIRECT (Direct Level) Knob This adjusts the output level of the direct sound. The volume of the direct sound in- creases as you turn the knob clockwise. * Rotating the knob fully counterclockwise will eliminate the direct sound. 10 .FREQ (Frequency) Knob This adjusts the frequency of the filter.
  • Page 8 Connections fig.03 OUT 9V DC / 200 mA For mono use, make the connection to the OUTPUT A (MONO) jack. Bass Amp AC Adaptor BOSS PSA series (Optional) Bass Guitar Expression Pedal Roland EV-5 (Optional)
  • Page 9 * To ensure stable conditions, connect the SYB-5 directly to your bass’s output. * When running the unit on battery power, inserting a plug into the INPUT Jack will automatically switch the unit on. * The use of an AC adaptor is recommended as the unit’s power consumption is relatively...

  • Page 10: Mode Chart

    Depending on the number selected, the output sound of the in- ternal sound source will differ as follows: * The SYB-5 not only works with four-string basses, it is compatible with five- and six-string basses as well (the range for detecting pitch is A0–C5).
  • Page 11 ■ PULSE WAVE A pulse wave is output. This produces a sharp-edged sound, but one that differs from that produced with the sawtooth wave. This outputs a pulse wave using an all-pass filter. Creates a sound that has a sense of depth and motion.

  • Page 12: Operating The Unit

    Operating the Unit fig.04 1. When you have made the necessary connections (p. 8), set the knobs as shown in the illustration. fig.05 2. Depress the pedal switch to turn the effect on. (Make sure that the CHECK indicator lights.) 3.
  • Page 13 fig.07 5. Adjust the frequency of the filter using the FREQ knob. fig.08 6. Adjust the feedback amount of the filter using the RES knob. Operating the Unit fig.09 7. Adjust the volume of the effect and direct sounds using the EFFECT Level and DIRECT Level knobs.

  • Page 14: Using The Hold Function

    The Hold function remains in effect and the CHECK indicator flashes as long as you continue to press the Pedal Switch. In this state, the SYB-5 continues to output the effect sound. 5. To switch off the Hold function, release the Pedal Switch.
  • Page 15 Using the EXP Jack With an expression pedal (the optional Roland EV-5) connected to the EXP jack, you can then have the bass synth sound change as you move the pedal. * Use only the specified expression pedal (EV-5; optional). By connecting any other expression pedals, you risk causing malfunction and/or damage to the unit.
  • Page 16 *In this case, sounds are output only from the OUTPUT B jack when the effect is switched off. fig.10 Bass Multiple Effects, etc. Bass *To ensure stable conditions, connect the SYB-5 directly to your bass's output. Connect any additional effects to the SYB-5’s OUTPUT A (MONO) or OUTPUT B jacks. Bass Guitar...
  • Page 17 Using the Mode Label The SYB-5 is supplied with a Mode Label which shows the effect obtained with each of the modes. The label (which serves as a quick reference) can be attached as shown in the illustration. fig.11...

  • Page 18: Changing The Battery

    Changing the Battery When the indicator goes dim or no longer lights while an effect is on, it means that the battery is nearly dead and must be replaced. Replace the battery following the steps below. * The use of an AC adaptor is recommended as the unit’s power consumption is relatively high.

  • Page 19: Troubleshooting

    Check the connection once more (p. 8). * Never use any AC adapter other than one specified for use with the SYB-5. ● Is the battery low or dead? Replace with a new battery (p. 18).
  • Page 20 Troubleshooting No sound / Low volume: ● Is the SYB-5 properly connected to your instrument? Check the connection once more (p. 8). ● Is the volume turned down on any bass amp or effects device you have connected? Check the settings of the connected device.
  • Page 21 (the range for detecting pitch is A0–C5) is not detected correctly. ● Are you playing chords with the SYB-5 set to an internal sound mode (MODE 1–9)? The internal sound modes (MODE 1–9) feature effects meant for use only with single notes.

  • Page 22: Setting Samples

    Setting Samples SAW WAVE fig.13-1 SLOW AUTO FILTER fig.13-2 SQUARE WAVE fig.13-3 FAT SOUND fig.13-4...

  • Page 23: Pulse Width Modulation

    TALKING fig.13-5 DEEP fig.13-6 PULSE WIDTH MODULATION fig.13-7 FILTER SWEEP fig.13-8 Setting Samples...

  • Page 24: Setting Memo

    Setting Memo fig.14 fig.14 fig.14 fig.14...

  • Page 25: Specifications

    Specifications SYB-5: Bass Synthesizer Nominal Input Level... -20 dBu Input Impedance... 1 MΩ Nominal Output Level... -20 dBu Output Impedance ... 1 kΩ Recommended Load Impedance ... 10 kΩ or greater Residual Noise ... -96 dBu (IHF-A, Typ.); All knobs at center position Controls...
  • Page 26 SAFELY,” “IMPORTANT NOTES,” and “Information”), Dry battery/9 V type (6LR61) The battery that was supplied with the unit is for temporary use- intended primarily for testing its operation. We also suggest replacing this with an alkaline dry cell. Expression Pedal (Roland EV-5)

  • Page 27: Federal Communications Commission Radio Frequency Interference Statement

    This product complies with the requirements of European Directive 89/336/EEC. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 28 G6017385...
