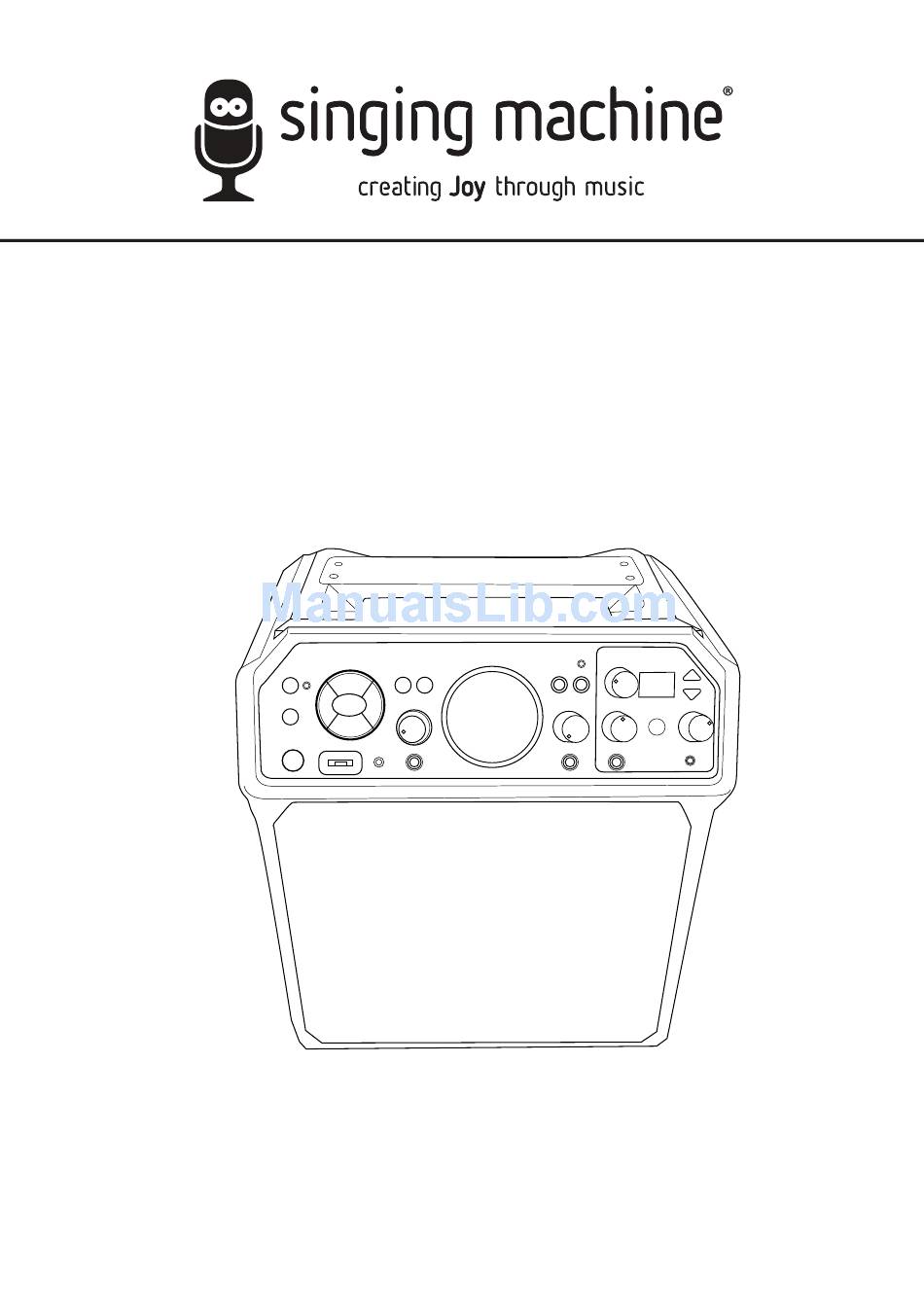

- Page 1 SDL2093 STUDIO INSTRUCTION MANUAL www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc.
-
Page 2: Table Of Contents
Contents Warnings and Important Safety Information ................1 Included ..............................2 Location of Controls ........................3-5 Connection ............................6 Connecting the Microphone(s) .....................6 Connecting the Unit to a TV ....................6 Connecting to AC Power ......................7 Connecting Headphones ......................7 Changing the Interactive Microphone’s Battery ..............8 Rechargeable Battery ........................9 Singing Machine USB Flash Drive ....................10 Operation ............................11... -
Page 3: Warnings And Important Safety Information
Warnings CAUTION WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. RISK OF ELECTRIC SHOCK DO NOT OPEN FCC WARNING: This equipment may generate or use radio frequency CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT energy. -
Page 4: Included
Included Please make sure the following items are included. Main Unit Wired Interactive Microphone Manual AC Adapter Singing Machine Flash Drive — 2 —... -
Page 5: Location Of Controls
Location of Controls (Front) 7 8 9 10 1112 10. KEY SELECT/FX LEVEL 20. MIC 2 VOLUME Control 1. ENTER/ Button Control 21. Speaker 2. Navigation Buttons (Up 11. MIC 1 VOLUME Control 5, Right , Down , 22. Handle/Cradle Left ... - Page 6 Location of Controls (Rear/Top) 1. HDMI Jack 2. Battery Level Button 3. Battery Level Indicators 4. Mic Holder (Slides out) 5. DC IN Jack 6. Mic Holder (Slides out) 7. Accessory Storage — 4 —...
- Page 7 Location of Controls (Mic) Interactive Microphone 1. Mic ON/OFF Switch 4. ENTER/ Button 2. MENU Button 5. Remote Transmitter (Rear) 3. Navigation Buttons 6. Battery Compartment (Rear) Location of Controls (Playback Display) Song Total Time Lead Vocal Status Song Title Song Current Record Status...
-
Page 8: Connection
Connection Connecting the Microphone(s) Microphones: Connect a microphone into MIC 1 Jack u as well as MIC 2 Jack v (when desired). Note: Do not drop or tap the Mic as damage to the Mic or speakers may occur. Do not twirl the microphone by the cord as it will cause damage to the encased wiring. -
Page 9: Connecting To Ac Power
Connection HDMI Cable Connecting to AC Power Insert the small end of the AC adapter into the DC IN Jack on the rear of the unit. Insert the other end (with the 2 blades) into a conveniently located AC outlet having 120V AC, 60Hz. Note: Make all connections before connecting to AC power. -
Page 10: Changing The Interactive Microphone's Battery
Connection Changing the Interactive Microphone’s Battery When performance suffers, change the batteries as follows: Unscrew the Battery Compartment screw and remove the door. CR2032 Replace battery with CR2032 button cell battery. Replace Battery Compartment and screw. BATTERY PRECAUTIONS: Follow these precautions when using batteries in this device: 1. -
Page 11: Rechargeable Battery
HDMI Jack (Out) Rechargeable Battery Rear of External TV HDMI Jack (In) HDMI IN This unit comes with a built-in rechargeable battery pack that will allow the unit to be used without being connected to AC power. The Battery indicator (top of the unit) will show the battery charge remaining, indicated by the amount of bars. -
Page 12: Singing Machine Usb Flash Drive
Flash Drive which is used for storing Karaoke songs as well as recordings from this unit. There are two songs included on the Singing Machine USB Flash Drive but you can access the Karaoke Store for many more songs. See Welcome Kit for more information. -
Page 13: Operation
Operation Microphone Remote Operation The Microphone is also a remote control that can be used to control the unit. See below for instructions on using the Microphone Remote. It is very important to point the remote’s sensor at the unit’s remote sensor (see illustration). This Microphone Remote’s buttons will operate the same way as the main unit’s ENTER, Navigation and MENU buttons. -
Page 14: Light Mode
Operation Light Mode There are three Light modes. Repeatedly press the LIGHT MODES button to select a mode as follows: Light Mode 1: The unit will synchronize to the music being played. Light Mode 2: The unit will light up with random colors and patterns. -
Page 15: Auto-Tune
Operation Auto Tune® The Auto Tune® feature is shown in a dedicated area at the front (top right) of the unit. This will allow you to Auto-Tune® your voice like the professionals. With the unit on, press the AUTO-TUNE® control button once to activate; the first Auto-Tune®... - Page 16 Operation Auto Tune® (Continued) Name Display Effect Description None No Vocal Effects Studio Pop Short ‘n fast echo followed by clean ‘n bright studio plate reverb 80’s Pop A familiar 80’s-style long echo with vocal chorusing Live Pop Live pop show performance in a large auditorium School gym echo with a fast &...
-
Page 17: Auto-Tune® Advanced Settings
Operation Auto Tune® Advanced Settings The Auto Tune® Advanced Settings will allow you to create custom presets and make adjustments as desired. Connect the unit to a TV as described previously. Press the STANDBY/ON button to turn the unit ON. Press the Navigation Right or ... - Page 18 Operation Auto Tune® Advanced Settings (Continued) Note: The previous steps showed how to adjust the settings using the Navigation and ENTER buttons on the main unit. You can also use the following controls: • Navigation and ENTER buttons on the mic’s remote. •...
-
Page 19: Playing Songs From The Usb
USB plug. Insert it into the USB slot on the unit so it faces upward. Note: The Singing Machine flash drive has an 8GB capacity (the actual capacity may vary slightly). The USB mode will be selected by default; press the ENTER button to enter the USB mode;... - Page 20 Operation Playing Songs from the USB (Continued) Use the Navigation 5 Up and Down buttons to navigate through the list of songs that you have previously downloaded on your USB. Press the ENTER button to start the playback. The HD karaoke video will play on the TV.
- Page 21 Operation Playing Songs from the USB (Continued) LEAD VOCAL: To sing with the lead singer on the recording press the LEAD VOCAL button; “ ” will appear at the top right of the TV screen). To listen to music only, press the LEAD VOCAL button again;...
- Page 22 Operation Playing Songs from the USB (Continued) RECORDING YOUR SINGING: To record your singing as well as the music, press the Record button; recording will begin and the record indicator will light. When done recording, press the Record button again; the Record indicator will turn off.
- Page 23 Operation Playing Songs from the USB (Continued) SEARCHING BY GENRE, ARTIST or TITLE: To filter by Genre, Artist or Title, select the Genre, Artist, or Title using the Navigation left and right buttons, then press the ENTER button. The alphabet will appear at the bottom of the TV screen;...
- Page 24 Operation Playing Songs from the USB (Continued) USING THE PLAYLIST: To play your previously created playlist, select Playlist using the Navigation Right and Left buttons, then press the ENTER button; the row under Playlist will be highlighted. Select the desired selection using the Navigation ...
- Page 25 Operation Playing Songs from the USB (Continued) CREATING FAVORITES: To create a favorite playlist, select a song using the Navigation 5 Up and Down buttons, then scroll to the Favorite column using the Navigation Right or Left button. Press the ENTER button to confirm the operation;...
-
Page 26: Using A Bluetooth Device
Operation Using a Bluetooth Device Connect the unit as described previously. Press the STANDBY/ON button to turn the unit on. Press the Navigation Right or Left button to select the Bluetooth mode, then press the ENTER button; the Function indicator will light blue. - Page 27 Using a Bluetooth Device (Continued) Note: You can view the lyrics on your mobile device/tablet and get more songs by downloading the “The Singing Machine Mobile Karaoke App”; refer to the Welcome Kit for more information. You can control your Bluetooth device...
- Page 28 Operation Using a Bluetooth Device (Continued) a desired effect (see page 14). Rotate the KEY SELECT/FX LEVEL control to select the desired level which will be indicated temporarily on the display. RECORDING YOUR SINGING: To record your singing as well as the music, press the Record button;...
-
Page 29: Playing Songs From The Recorded Files
Operation Playing Songs from the Recorded Files Connect the unit as described previously and make sure a USB drive is inserted into the USB port. Press the STANDBY/ ON button to turn the unit on. Press the Navigation Right or Left button to select the Recordings mode and press the ENTER button... - Page 30 Operation Playing Songs from the Recorded Files (Continued) You can sing along with your previously recorded song. Simply connect the microphone(s). Slide the Mic’s ON/OFF switch to the ON position. Adjust the MIC VOLUME 1 or 2 control as desired. Increasing this will increase the volume of respective microphone.
-
Page 31: Using The Line In Jack
Operation Using the LINE IN Jack Connect the unit as described previously. Press the STANDBY/ON button to turn the unit on. Connect the external unit to the LINE INPUT Jack using a 3.5mm auxiliary audio cable (not included). Connecting an external unit will allow the audio to be played through your Singing Machine. - Page 32 Operation Using the LINE IN Jack (Continued) Adjust the MIC VOLUME 1 or 2 control as desired. Increasing this will increase the volume of the respective microphone. AUTO-TUNE®: See pages 13 to 16 for more details. Press the AUTO- TUNE® control button once to activate;...
-
Page 33: Using The External Input Jack
Operation Using the EXTERNAL INPUT Jack Connect the unit as described previously. Press the STANDBY/ON button to turn the unit on. Connect the external unit to the EXTERNAL INPUT jack using a 6.3mm cable (not included). Connecting an external unit will allow the audio to be played through your Singing Machine. -
Page 34: Troubleshooting Guide
Troubleshooting Guide Should this unit exhibit a problem, check the following before seeking service: No Power • Power is not on; press the STANDBY/ON button to turn power ON. • Make sure the unit is connected to AC power • Confirm the AC adapter is connected securely to the back of the unit. •... -
Page 35: Updating The Firmware
2. Download the latest software (e.g xxxxxx.img) from www.singingmachine.com/ softwareupdates and save it into this folder. 3. Plug the Singing Machine USB Flash Drive into the USB jack on the unit and turn the unit on. 4. The unit will update automatically. - Page 36 Visit Our Website: www.singingmachine.com Copyright © 2018 - All Rights Reserved. The Singing Machine Company, Inc. 4060 E Jurupa Street, Unit B Ontario, CA 91761-1413 USA PRINTED IN CHINA xxxxxxx — 34 —...
