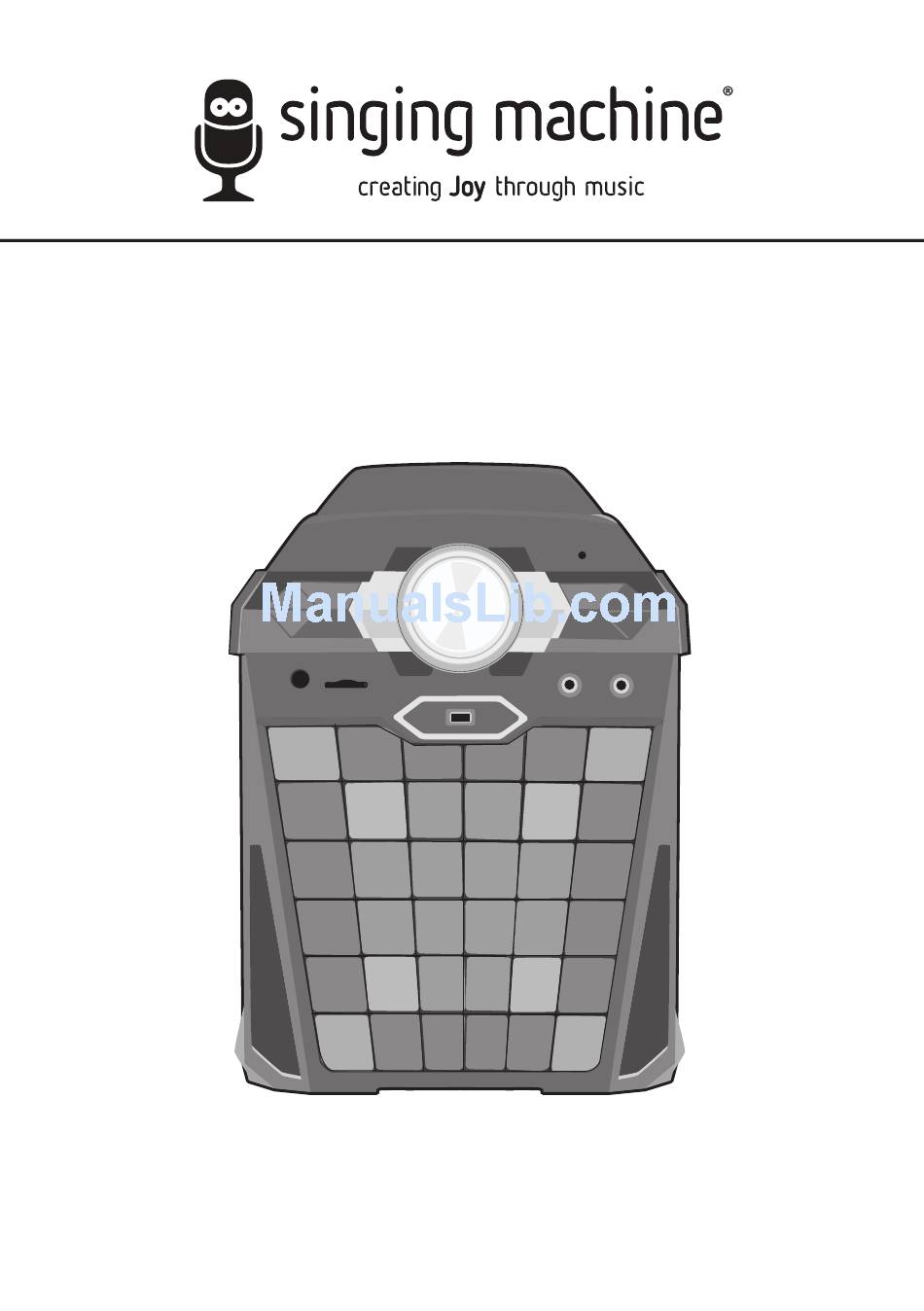

- Page 1 SDL366 INSTRUCTION MANUAL www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc.
- Page 2 Warnings WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE CAUTION THIS UNIT TO RAIN OR MOISTURE. RISK OF ELECTRIC SHOCK FCC WARNING: This equipment may generate or use radio frequency DO NOT OPEN energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT instruction manual.
- Page 3 Included Please make sure the following items are included. Main Unit Wired Interactive Microphone AC Adapter Manual Singing Machine Flash Drive — 2 —...
- Page 4 Location of Controls (Top/Front) 1. Cradle 14. Function Indicator 2. MASTER VOLUME Control 15. FUNCTION Button 3. ON/OFF Button 16. Bluetooth Indicator 4. MIC VOL + Button 17. MENU Button 5. ECHO + Button 18. Navigation UP 5 Button 6. VOCAL Button 19.
- Page 5 Location of Controls (Rear) 1. MIC 1 Holder 4. MIC 2 Holder 2. HDMI Jack 5. LINE IN Jack 3. DC IN Jack — 4 —...
- Page 6 Location of Controls (Interactive Microphone) 1. Mic ON/OFF Switch 4. ENTER/ Button 2. MENU Button 5. Battery Compartment (Rear) 3. Navigation Buttons 6. Remote Transmitter (Rear) 1. Right Tower Speaker Jack 4. HDMI Jack 2. Left Tower Speaker Jack 5. LINE IN Jack 3.
- Page 7 Connection Connecting the Microphone(s) Microphones: Connect a microphone into Mic jack 1 u as well as Mic jack 2 v (when desired). Note: Do not drop or tap the Mic as damage to the Mic or speakers may occur. Do not twirl the microphone by cord as it will cause damage to the encased wiring.
- Page 8 Connection HDMI Cable Connecting to AC Power Insert the AC power cord into a conveniently located AC outlet having 120V AC, 60Hz . Note: Make all connections before connecting to AC power. Changing the Microphone’s Battery When performance suffers, change the batteries as follows: Unscrew the Battery Compartment Screw and remove the door.
- Page 9 Drive which is used for storing Karaoke songs as well as recordings from this unit. There are two songs included on the Singing Machine USB Flash Drive but you can access the Karaoke Store for many more songs. Just follow the Welcome...
- Page 10 The Karaoke Store application can be installed on Microsoft Windows computers running Vista, Windows 7 and Windows 8 or higher. The Karaoke Store application requires connection to the Internet (a high-speed connection is recommended). Insert the Singing Machine USB Flash Drive into a powered USB slot on your computer.
- Page 11 The Karaoke Store application can be installed on Apple Macintosh computers running OS X 10.8 and higher. The Karaoke Store application requires connection to the Internet (a high- speed connection is recommended). Insert the Singing Machine USB Flash Drive into a powered USB slot on your computer.
- Page 12 Operation Microphone Remote Operation The Microphone is also a remote control that can be used to control the unit. See below for instructions on using the Microphone Remote. It is very important to point the remote’s sensor at the unit’s remote sensor (see illustration). This Microphone Remote’s buttons will operate the same way as the main unit’s ENTER, Navigation and MENU buttons.
- Page 13 Operation Light Mode There are four Light modes. Repeatedly press the LIGHT MODE button to select a mode as follows: Light Mode 1: The unit will light up with random colors and patterns. Light Mode 2: The unit will light up with set colors (Green = low, Red = mid, Blue = high) depending on the music being played or the live singing performance.
- Page 14 USB plug. Insert it into the USB slot on the unit so it faces upward. Note: The Singing Machine flash drive has an 8GB capacity (the actual capacity may vary slightly). The USB mode will be selected by default;...
- Page 15 Operation Playing Songs from the USB (Continued) Use the Navigation 5 Up and Down buttons to navigate through the list of songs that you have previously downloaded on your USB. Press the ENTER button to start the playback. The HD karaoke video will play on the external screen.
- Page 16 Operation Playing Songs from the USB (Continued) VOCAL: To sing with the lead singer on the recording press the VOCAL button; “ ” will appear at the top right of the TV screen). To listen to music only, press the VOCAL button again; “ ”...
- Page 17 Operation Playing Songs from the USB (Continued) RECORDING YOUR SINGING: To record your singing as well as the music, press the RECORD button; recording will begin and the record icon at the top right corner of the monitor will display red. When done recording, press the RECORD button again;...
- Page 18 Operation Playing Songs from the USB (Continued) SEARCHING BY GENRE, ARTIST or TITLE: To filter by Genre, Artist or Title, select the Genre, Artist, or Title using the Navigation left and right buttons, then press the ENTER button. The alphabet will appear at he bottom of the TV screen;...
- Page 19 Operation Playing Songs from the USB (Continued) USING THE PLAYLIST: To play your previously created playlist, select Playlist using the Navigation Right and Left buttons, then press the ENTER button; the row under Playlist will be highlighted. Select the desired selection using the Navigation ...
- Page 20 Operation Playing Songs from the USB (Continued) CREATING FAVORITES: To create a favorite playlist, select a song using the Navigation 5 Up and Down buttons, then scroll to the Favorite column using the Navigation Right or Left button. Press the ENTER button to confirm the operation;...
- Page 21 Operation Using a Bluetooth Device Connect the unit as described previously. Press the ON/OFF button to turn the unit on. Press the Navigation Right or Left button to select the Bluetooth mode, then press the ENTER button; the Function indicator will light yellow. You can also repeatedly press the FUNCTION button until the Function indicator lights yellow to select the Bluetooth mode.
- Page 22 Using a Bluetooth Device (Continued) Note: You can view the lyrics on your mobile device/tablet and get more songs by downloading the “The Singing Machine Mobile Karaoke App”; see the Welcome Kit for full instructions and to get your ten free downloads.
- Page 23 Operation Using a Bluetooth Device (Continued) RECORD YOUR VOCAL PERFORMANCE: To record your singing as well as the music, press the RECORD button. Recording will begin and the record icon at the bottom right corner of the TV display will blink red and blue.
- Page 24 Operation Playing Songs from the Recorded Files Connect the unit as described previously. Press the ON/OFF button to turn the unit on. Press the Navigation Right or Left button to select the Recordings mode and press the ENTER button to continue;...
- Page 25 Operation Playing Songs from the Recorded Files (Continued) You can sing along with your previously recorded song. Simply connect the microphone(s) as shown on page 6. Slide the Mic’s ON/OFF switch to the ON position. Adjust the MIC VOLUME control as desired.
- Page 26 Operation Using the LINE IN Jack Connect the unit as described previously. Press the ON/OFF button to turn the unit on. Connect the external unit to the LINE IN Jack on the rear of this unit. Connecting an external unit will allow the audio to be played through your Singing Machine.
- Page 27 Operation Using the LINE IN Jack (Continued) Adjust the MIC VOLUME control as desired. Increasing this control will increase the volume of connected microphone(s). Press ECHO +/- buttons to add an echo effect to your voice. The higher the number, the more echo effect. RECORDING YOUR SINGING: To record your singing as well as the music, press the RECORD button;...
-
Page 28: Troubleshooting Guide
Troubleshooting Guide Should this unit exhibit a problem, check the following before seeking service: No Power • Power is not on; press the ON/OFF button to turn power on. • Confirm the AC adapter is connected securely to the back of the unit •... -
Page 29: Specifications
2. Download the latest software (e.g xxxxxx.img) from www.singingmachine.com/ softwareupdates and save it into this folder. 3. Plug the Singing Machine USB Flash Drive into the USB jack on the unit and turn the unit on. 4. The unit will update automatically. - Page 30 Visit Our Website: www.singingmachine.com The Singing Machine Company, Inc. 4060 E Jurupa Street, Unit B Ontario, CA 91761-1413 USA PRINTED IN CHINA 9030DB-1508-ENG01 — 29 —...
