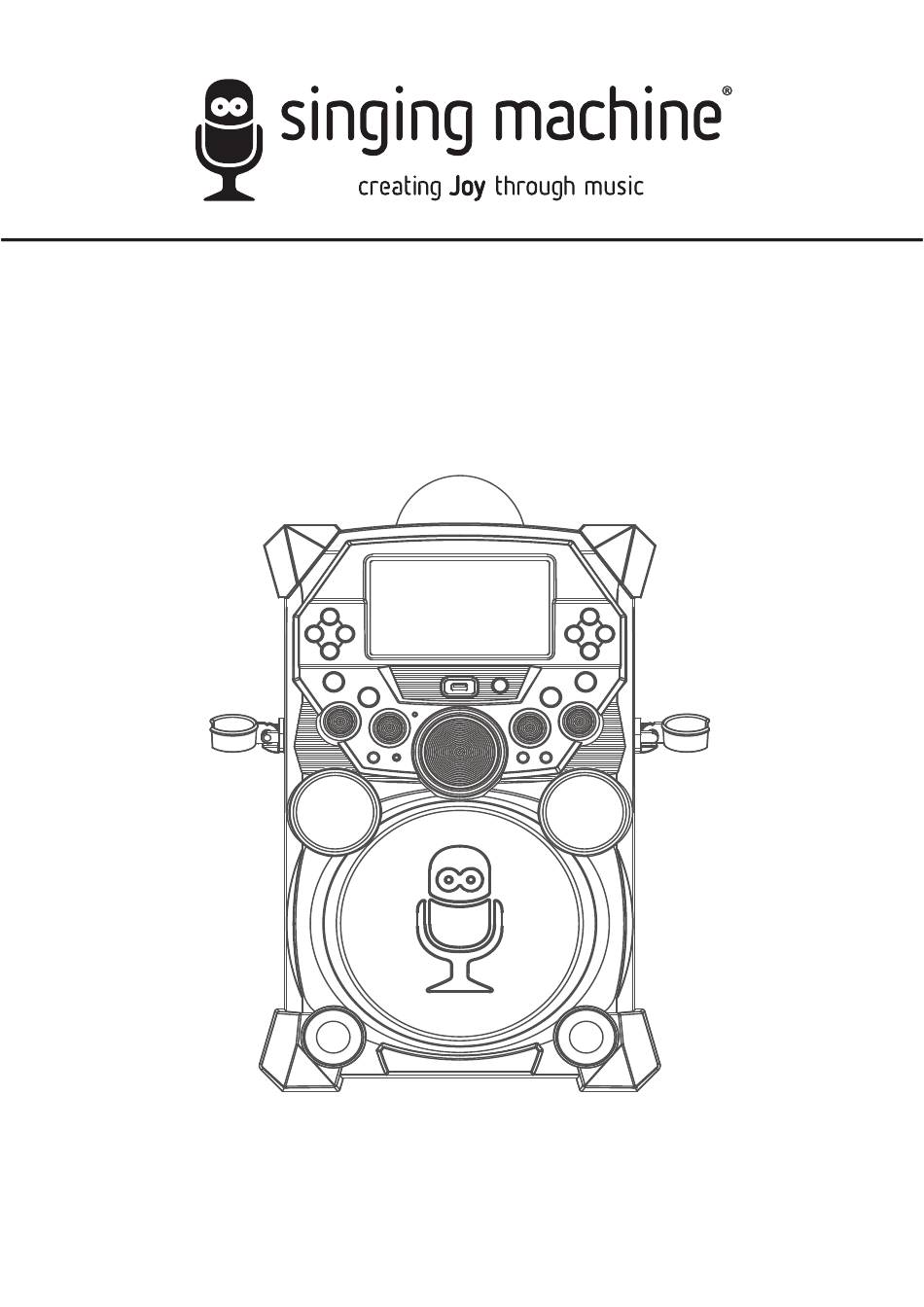

- Page 1 SDL9040 FIESTA VOICE INSTRUCTION MANUAL www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co.,Inc.
- Page 2 Warnings WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE CAUTION THIS UNIT TO RAIN OR MOISTURE. RISK OF ELECTRIC SHOCK FCC WARNING: This equipment may generate or use radio frequency DO NOT OPEN energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE instruction manual.
- Page 3 Included Please make sure the following items are included. Wired Interactive Microphone Main Unit Wired Microphone Manual AC Adapter Singing Machine Flash Drive — E2 —...
- Page 4 Location of Controls (Top/Front) 1. Disco Ball 16. MASTER VOLUME Control 2. TFT LCD Color Screen 17. Navigation LEFT Button 3. VOCAL/PAIR Button 18. Navigation UP Button 4. FUNCTION (Monitor ON/OFF) Button 19. Navigation RIGHT Button 5. MENU Button 20. Navigation DOWN Button 6.
- Page 5 Location of Controls (Rear) 1. Adjustable Handle 4. Handle Release 2. DC IN Jack 5. HDMI Jack 3. Wheels — E4 —...
- Page 6 Location of Controls (Microphones) Interactive Microphone Standard Microphone 1. Mic ON/OFF Switch 4. ENTER/ Button 2. MENU Button 5. Remote Transmitter (Rear) 3. Navigation Buttons 6. Battery Compartment (Rear) Location of Controls (Playback Display) Song Total Time Lead Vocal Status Song Title Song Current...
- Page 7 Connection Connecting the Microphone(s) Microphones: Connect a microphone into Mic jack 1 u and the other microphone into Mic jack 2 v (if desired). Note: Do not drop or tap the Mic as damage to the Mic or speakers may occur. Do not twirl the microphone by cord as it will cause damage to the encased wiring.
- Page 8 Connection Connecting to AC Power Insert the AC power cord into a conveniently located AC outlet having 120V, 60Hz. Note: Make all connections before connecting to AC power. Changing the Interactive Microphone’s Battery When performance suffers, change the batteries as follows: Unscrew the Battery Compartment screw and remove the door.
- Page 9 Rechargeable Battery This unit comes with a built-in rechargeable battery pack that will allow the unit to be used without being connected to AC power. The Battery indicator (top right of the display) will show the battery charge left indicated by the amount of bars. The rechargeable battery pack must NOT to be replaced by the user.
- Page 10 Drive, which is used for storing Karaoke songs as well as recordings from this unit. There are two songs included on the Singing Machine USB Flash Drive, but you can access the Karaoke Store for many more songs. Just follow the Welcome...
- Page 11 The Karaoke Store application can be installed on Microsoft Windows computers running Vista, Windows 7, and Windows 8 or higher. The Karaoke Store application requires connection to the Internet (a high-speed connection is recommended). Insert the Singing Machine USB Flash Drive into a powered USB slot on your computer.
- Page 12 The Karaoke Store application can be installed on Apple Macintosh computers running OS X 10.8 and higher. The Karaoke Store application requires connection to the Internet (a high- speed connection is recommended). Insert the Singing Machine USB Flash Drive into a powered USB slot on your computer.
- Page 13 Operation Microphone Remote Operation The Microphone is also a remote control that can be used to control the unit. See below for instructions on using the Microphone Remote. It is very important to point the remote’s sensor at the unit’s remote sensor (see illustration).
- Page 14 Operation Light Mode There are four Light modes. Repeatedly press the LIGHT MODE button to select a mode as follows: Light Modes 1: The unit will synchronize to the music being played. Light Mode 2: The unit will light up with random colors and patterns.
- Page 15 Operation Voice Effects Rotate the VOICE EFFECTS control u to select ECHO, FEMALE, MALE, CHIPMUNK, ROBOT or RADIO to transform a singer’s voice. TFT screen will show: Radio Echo Radio Echo Radio Echo Female Female Female Robot Robot Robot Voice Voice Voice Male...
- Page 16 USB plug. Insert it into the USB slot on the unit so it faces upward. Note: The Singing Machine flash drive has an 8 GB capacity (the actual capacity may vary slightly). The USB mode will be selected by default;...
- Page 17 Operation Playing Songs from the USB (Continued) Use the Navigation Up and Down buttons to navigate through the list of songs that you have previously downloaded on your USB. Press the ENTER button to start the playback. The HD karaoke video will play on the screen.
- Page 18 Operation Playing Songs from the USB (Continued) VOCALS: To sing with the lead singer on the recording, press the VOCAL/PAIR button; “ ” will appear at the top right of the monitor. To listen to music only, press the VOCAL/PAIR button again;...
- Page 19 Operation Playing Songs from the USB (Continued) RECORDING YOUR SINGING: To record your singing as well as the music, press the RECORD button; recording will begin and the record icon at the top right corner of the monitor will blink red.
- Page 20 Operation Playing Songs from the USB (Continued) SEARCHING BY GENRE, ARTIST or TITLE: To filter by Genre, Artist or Title, select the Genre, Artist, or Title using the Navigation Left and Right buttons, then press the ENTER button. The alphabet will appear at the bottom of the screen;...
