FrSky Archer R10 Pro Instruction Manual

Introduction

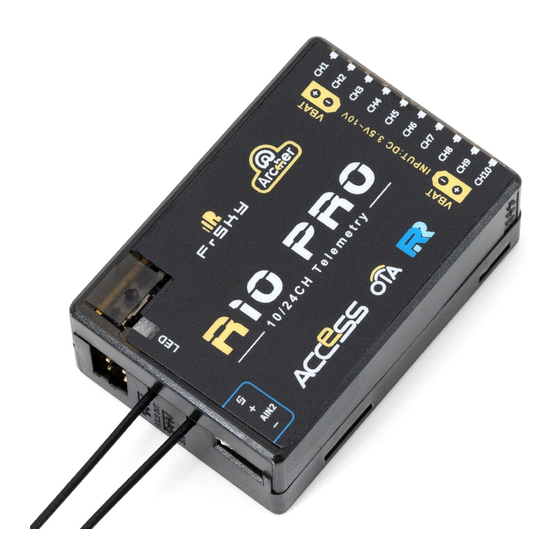

The Archer R10 Pro has 10 high-precision PWM channel outputs and features excellent Anti-interference performance when it comes
to spark-ignition on internal combustion models. It supports full-range signal strength with dual detachable antennas that assure
optimal antenna reception and maximum range. In addition to all this, the R10 PRO can also be used as a redundancy receiver along
with any other FrSky ACCESS capable receiver equipped with a SBUS port. This 10-channel receivers' noticeable features are its
Anti-vibration performance and dual-battery ports for redundancy.
All of the Archer receivers are hyper-matched with the ACCESS protocol. They not only feature wireless firmware upgrades, increased
range, and telemetry performance, the R10 PRO now supports more functions like configurable telemetry power, S.Port/F.Port
switching and FLR output. Additional valuable features are under development to unlock the true potential of the ACCESS protocol.

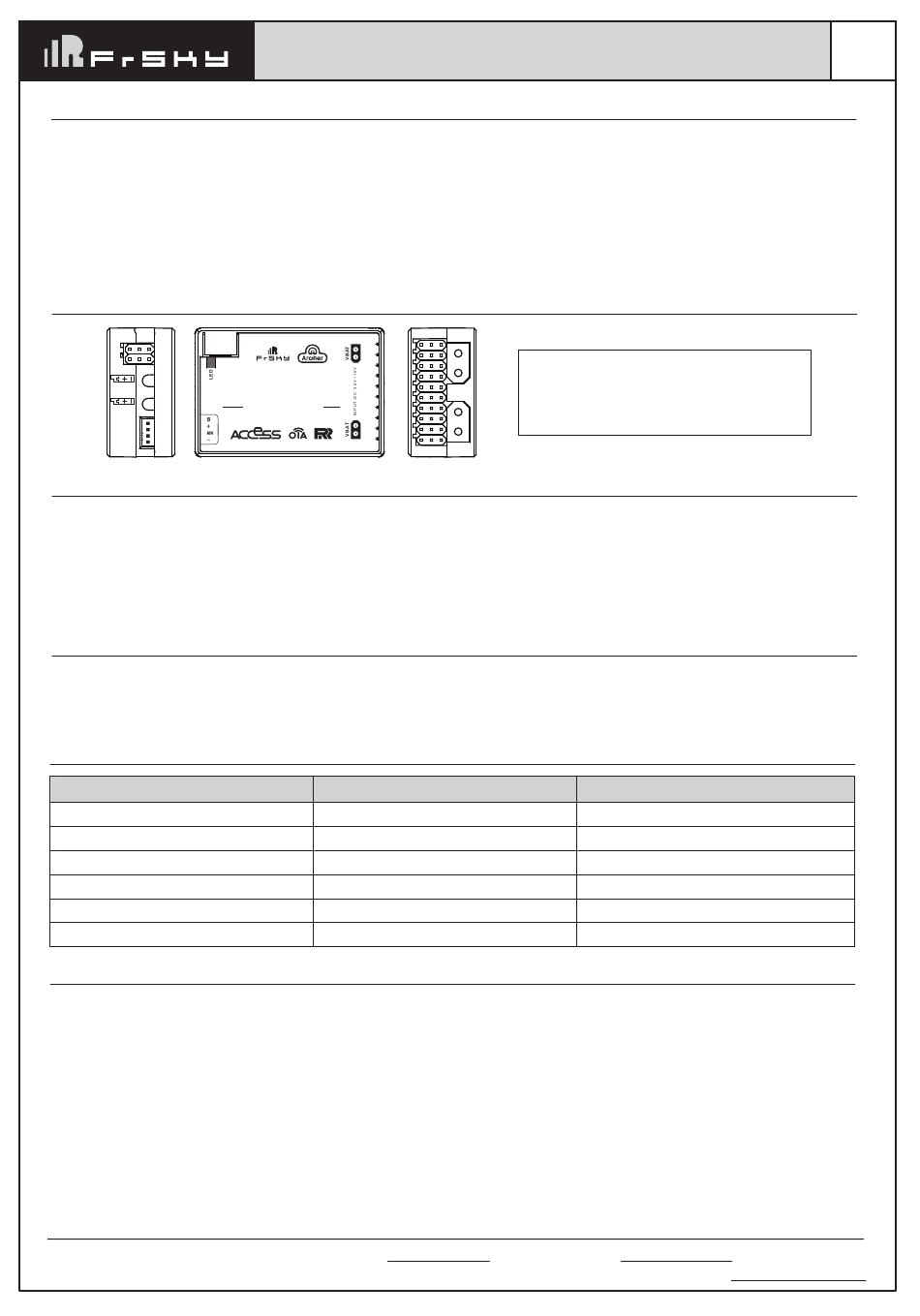

Overview

BUTTON
SBUS OUT
SBUS IN
2

Specifications

● Dimension: 48.5*33*17mm (L*W*H)
● Weight: 21g
● 16/24 Configurable SBUS Channels
● 10 High-precision PWM Channels
● Operating Voltage Range: 3.5-10V
● Operating Current: 80mA@5V
● Battery ports: XT30

Features

● ACCESS protocol with Over The Air (OTA)
● Supports signal redundancy (SBUS In)
● Supports power redundancy (Dual battery ports)
* it will automatically be powered by the one with highervoltage.

LED state

Green LED
On
Flash
On
On
On
Off
Registration & Automatic binding (Smart Match )
With the FrSky ACCESS protocol, the transmitter/transmitter module can bind receiver without using the "REG" button.
Follow the step below to finish the Registration & binding procedure:
1. Put the transmitter/transmitter module into [Reg] status.
1.1 For Taranis X-Lite Pro as an example, turn on the transmitter, go to the MENU-MODEL SETUP-PAGE 2,choose Internal or External
RF, and select [Reg].
2. Connect the battery to the receiver while holding the button on the receiver. The RED LED and GREEN LED on the receiver will be
on, indicating into the [Reg] status. Select [ENTER] on the transmitter, The RED LED and GREEN LED on the receiver will flash, and
the transmitter displays [Registration ok].
3. Turn off the receiver.
4. Move the cursor to select the receiver 1 [Bind].
5. Connect the battery to the receiver, the GREEN LED will flash, indicating into the [Bind] status. Select the RX, the GREEN will keep
lit, and the transmitter displays [Bind successful].
6. The transmitter exit [Bind], GREEN LED will keep lit, RED LED will be off, indicating Working normally.
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky ARCHER GR8 Receiver
Instruction Manual for FrSky ARCHER R10 PRO Receiver
CH1
CH2
CH3
CH4
R 1 0 P r o CH5
CH6
1 0 / 2 4 C H T e l e m e t r y
CH7
CH8
CH9
CH10
www.frsky-rc.com
Warning: Do not plug the additional
power supply in other port ( Channel,
S.Port, SBUS, etc. ) while using dual
battery to power the receiver.
● Control Range: Full range* with telemetry
(*Full Range: ＞2km, range may vary based
on local conditions.)
● Voltage Measurement Range via AIN2
(External device): 0-36V
(Battery Voltage Division Ratio: 1:10）
● Compatibility: All FrSky ACCESS transmitters
● S.Port / F.Port
● Anti-interference in spark-ignition
● Anti-Vibration
● External battery / device voltage detection
● VFR (Valid Frame Rate) telemetry
Red LED
On
Flash
On
Off
Off
On
TM
Contact us : frsky@frsky-rc.com
01140166
Status
Register
Register successfully
Bind
Bind successfully
Working normally
Failsafe
Version Version
1.1 1.0
