Summary of Contents for Phonak Lyric 3

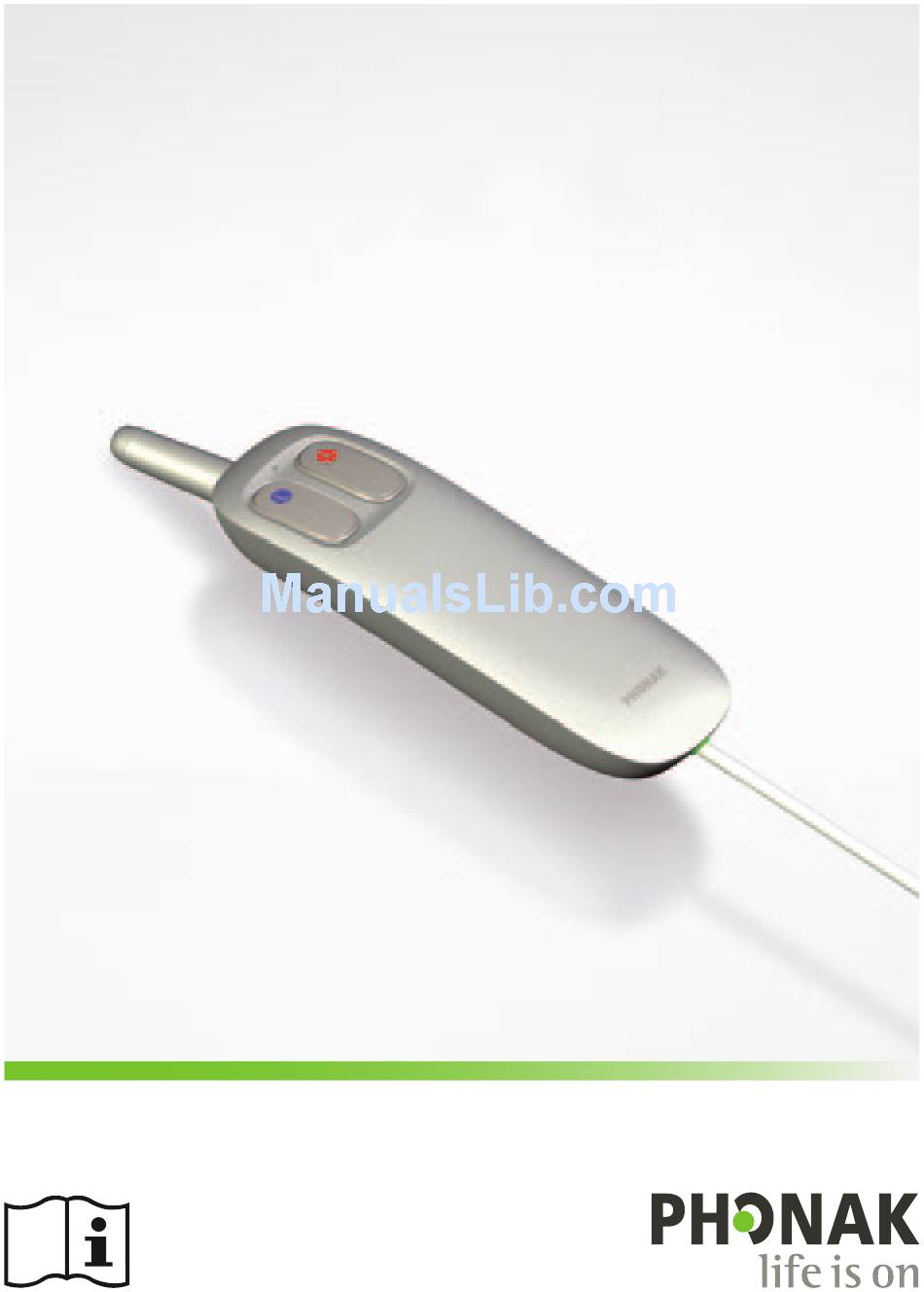

- Page 1 Lyric programming wand User Guide for professionals...
- Page 2 PC to your client’s Lyric3 hearing instruments. Please read this manual carefully to benefit from all the features of your Lyric3 programming wand. Phonak – life is on...
- Page 3 Description a Tip b Status LED c Programming button left / right d Wand body e USB cable...
-
Page 4: Getting Started
Getting started To connect the Lyric3 programming wand, plug the USB- plug into an available USB-port on your fitting computer. There is no driver installation required for the Lyric3 programming wand. After successful set-up, the status LED on the wand will turn green to indicate that the wand is ready for use. - Page 5 Programming To program, hold the tip of the wand close to the lateral end of the Lyric3 hearing aid and press the programming button according to the ear you want to fit. The status LED will flash green during programming. The status LED turns back to solid green after 3 seconds.
- Page 6 Lyric3 will play a double beep to indicate that it has been programmed. When Lyric3 is programmed for the first time, it will switch from “Ship Mode” to ON when successfully programmed. This can be verified by listening for feedback or using a listening stethoscope. If programming is performed in the ear, ask the patient to pay attention and confirm the beeps to make sure the programming was successful.
- Page 7 Further indicators If an error occurs during programming, the status LED will flash orange for 3 seconds before turning back to green. In that case repeat the programming procedure. If any other malfunctions occur with the wand, the status LED will turn red. In that case, reboot the wand by disconnecting and reconnecting it to the USB-port.
-
Page 8: Care And Maintenance
The wand must not be dipped in water or other detergents. Compliance information Hereby Phonak AG declares that this Phonak product is in compliance with the essential requirements of the Medical Devices Directive 93/42/EEC. The full text of the... -
Page 9: Important Safety Information
Lyric3 hearing aids with fitting parameters. Changes or modifications to the Lyric3 programming wand are not permitted. Such changes may damage the Lyric3 programming wand. Phonak is not responsible for situations resulting from a modified device. The Lyric3 programming wand contains a magnet. - Page 10 Never immerse the Lyric3 programming wand in water. Protect it from excessive moisture as it contains sensitive electronic parts. Protect your Lyric3 programming wand from heat (never leave near window or in a car). Never use a microwave or other heating devices to dry the Lyric3 programming wand.
-
Page 11: Information And Description Of Symbols
Information and description of symbols With the CE symbol, Phonak AG confirms that this Phonak product meets the requirements of the Medical Devices Directive 93/42/EEC. This symbol indicates that the products described in these user instructions adhere to the requirements for an application part of Type B of EN 60601-1. - Page 12 This symbol indicates that it is important for the user to pay attention to the relevant warning notices in these user guides. Important information for handling and product safety. Operating The product is designed such that conditions it functions without problems or restrictions if used as intended, unless otherwise noted in these user guides.
- Page 13 Atmospheric pressure: 200 hPa to 1500 hPa. The symbol with the crossed-out garbage bin is to make you aware that the Lyric3 programming wand may not be thrown away as normal household waste. Please return it to your group company. Proper disposal protects the environment and health.
- Page 14 Manufacturer: Phonak AG Laubisrütistrasse 28 CH-8712 Stäfa Switzerland US Representative: Phonak LLC 4520 Weaver Parkway US-Warrenville, IL 60555-3927 www.lyrichearing.com www.lyrichearing.co.uk www.lyrichearing.co.au www.phonak.com...
