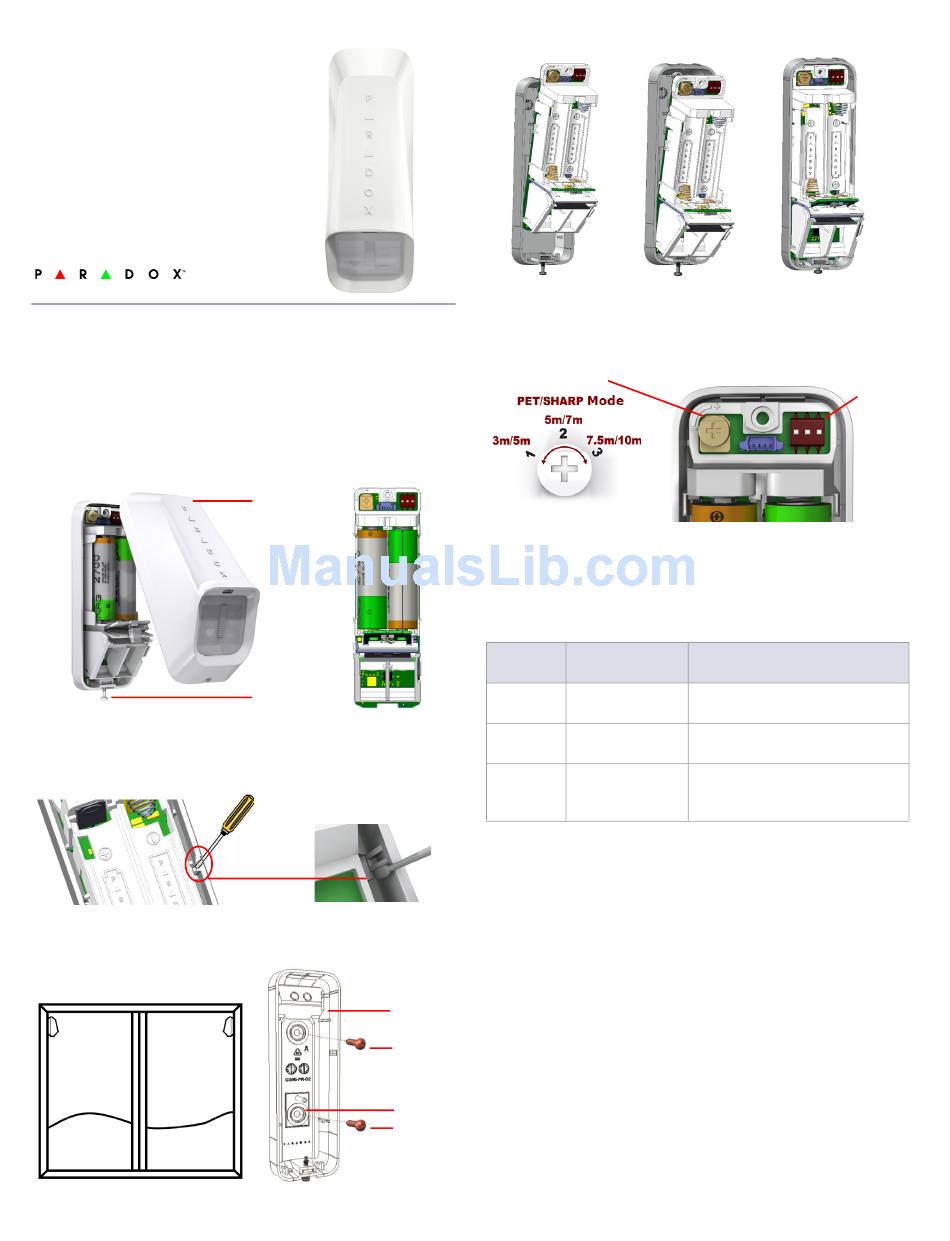

Paradox NVR35M Installation Manual

NVR35M
Installation Manual V1.0
Wireless Outdoor/Indoor
Dual Band
Window and Sliding Door
Dual Detector with
Anti-Masking and
Pet Immunity
NVR35M-EI01

General Description NVR35M

Thank you for choosing the NVR35M Wireless for your professional
protection needs. The NVR35M wireless Dual Band version will provide you
the most advanced window and sliding doors protection either in Pet
Immune or Sharp mode. If you have any comments please write to us at
Paradox.com/products/feedback.

Installing the NVR35M

1. Remove the front cover - open the Captive screw.
Figure 1 – Removing the Front Cover
2. Remove the Main Unit: open the two snap-lock mechanisms on each
side of the back cover attaching the Main Unit to the back cover as
displayed below. Then remove the Main Unit.
Figure 3 – Removing the Main Unit
3. Pull the wires from the control panel through the knockout holes and
mount the back cover onto the window frame or wall using screws..
Figure 4 – Mounting the Back Cover
Front cover
Captive screw
Figure 2 – Main Unit
Knockout
holes
Mounting
screw 1
Tamper
knockout
hole
Mounting
Tamper
screw 2
4. Attach the Main Unit to the back cover - ensure the locks snap closed.
1
Figure 5 – Attaching the Main Unit
5. Insert two AA batteries.
6. Set the following Detector settings according to requirements.
Sensitivity Trimmer
Default Sensitivity level: 2
LED flashes green 1-3 times
according to the selected level.
Figure 6 – Detector Settings
The following table displays the Dip Switch settings.
Table 1: DIP Switch Functionality
Dip Switch
Function
Number
1 LED
PET Immunity/
2
SHARP Mode
3* RF
* For USA and Canada: 433MHz frequency is set by the manufacturer and
cannot be modified.
7. Replace the front cover and close the Captive screw.
Warning: Do not obscure the detector's field of view.

Testing the NVR35M

Perform a Walk-Test to test successful installation: Walk slowly across the
far end of the detection range and ensure detection.
Walk test mode lasts 5 minutes after the tamper screw is closed.
2
3
DIP
Switches
Mode Description
: LED on (default)
ON
: LED off
OFF
: PET Immunity mode (default)
ON
: SHARP mode
OFF
: 433.92 MHz (default)
*
ON
: 868.35 MHz- applicable for EU
OFF
versions only
