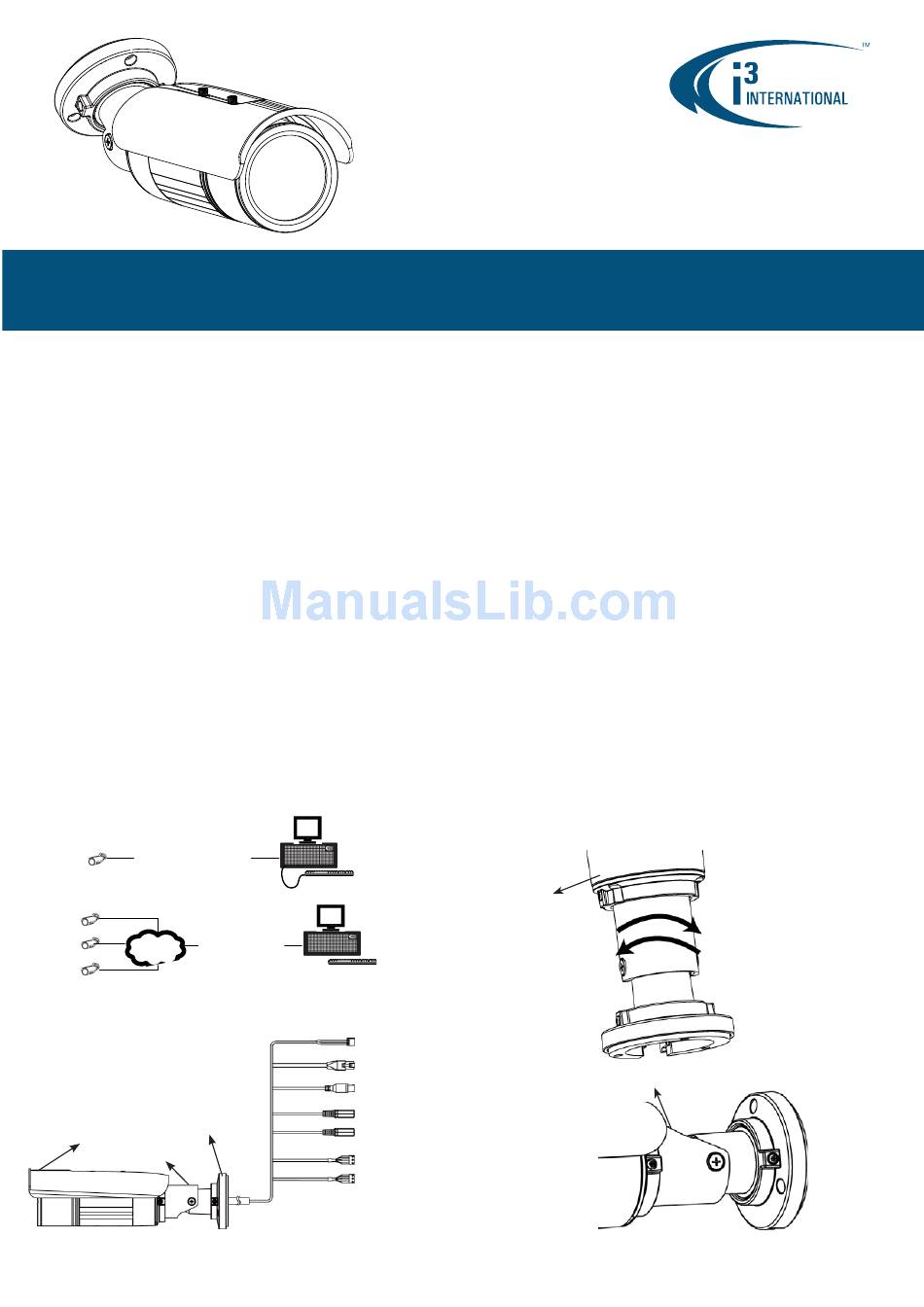

i3 International Ax41B1MVR Quick Start Manual

MEGAPIXEL IR BULLET CAMERA
• SAFETY
1. This quick start guide is designed for users who have an adequate
knowledge of network cameras.
2. Do not touch the imaging surface of the sensor. Use a soft cloth moistened
with alcohol to clean the surface if it is touched accidentally.
3. Ensure the power supply voltage is correct for the particular variant of
camera before operation.
4. Do not attempt to service this camera yourself unless you are authorized
to do so. Opening the camera may expose you to electrocution or other
hazards. Refer all servicing to qualified personnel only.
5. For more detail on installation and operation, please refer to CD provided.
• PACKAGE CONTENTS
Camera x1
Insulation caps x3
Self-tapping screws x3
RJ 45 female coupler x 1
Printed Quick Start Guide x1
• Concept of Network Camera
Connection type: 1
Crossover direct connection
Connection type: 2
LAN
•PARTS' LOCATIONS AND FUNCTIONS
mount adjustment
sunshield
pipe segment
Extendable Sunshield
Rubber Pad x1
Guide Pattern Sticker x1
Plastic anchor x3
Document CD x1
i³ iP-Pro Server
VIA a Gigabit Switch
i³ iP-Pro Server
1
2
3
4
5
6
7
Quick Start Guide
Please read this manual thoroughly before using, and keep it handy for future reference.
1. Power In (Red+/Black-): power connector, DC12V/AC24V.
2. RJ-45 Ethernet Connector: network connection. Support PoE
(Power over Ethernet).
3. BNC: video output
4. Audio Out (Green):
Future use
5. Audio In (Red):
Future use
6. Alarm Out (Orange): alarm signal output port.
RS485+(Green):
Future use
RS485- (Yellow):
Future use
7. GND: ground (electricity) in electrical circuits.
Alarm In (Red): alarm signal input port.
Alarm Reset (Brown): for resetting an external alarm device.
•Camera Installation
A. Mounting the camera
1. Marking hole positions: use the guide pattern sticker to mark
hole positions on the desired location. If you want to mount the
camera on a cement surface, insert the plastic anchor into holes
before using the self tapping
2. Adjust a mounting angle: loosen the screw as shown below to
rotate the pipe segment to adjust the concave surface.
a. loosen the screw
c. adjust the concave surface
Ax41B1MVR
b. rotate the pipe segment
