i3 International Ax49 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CONTENTS
1.
Warnings and operation notes..........................................3
2.
Product Overview ............................................................4
3.
Unpacking....................................................................5
4.
Installation.....................................................................6
5.
6.
Advanced Camera Setup..................................................17
7.
Specifications.................................................................30
Before attempting to connect or operate this product, read these instructions carefully.
Save this manual for future use.

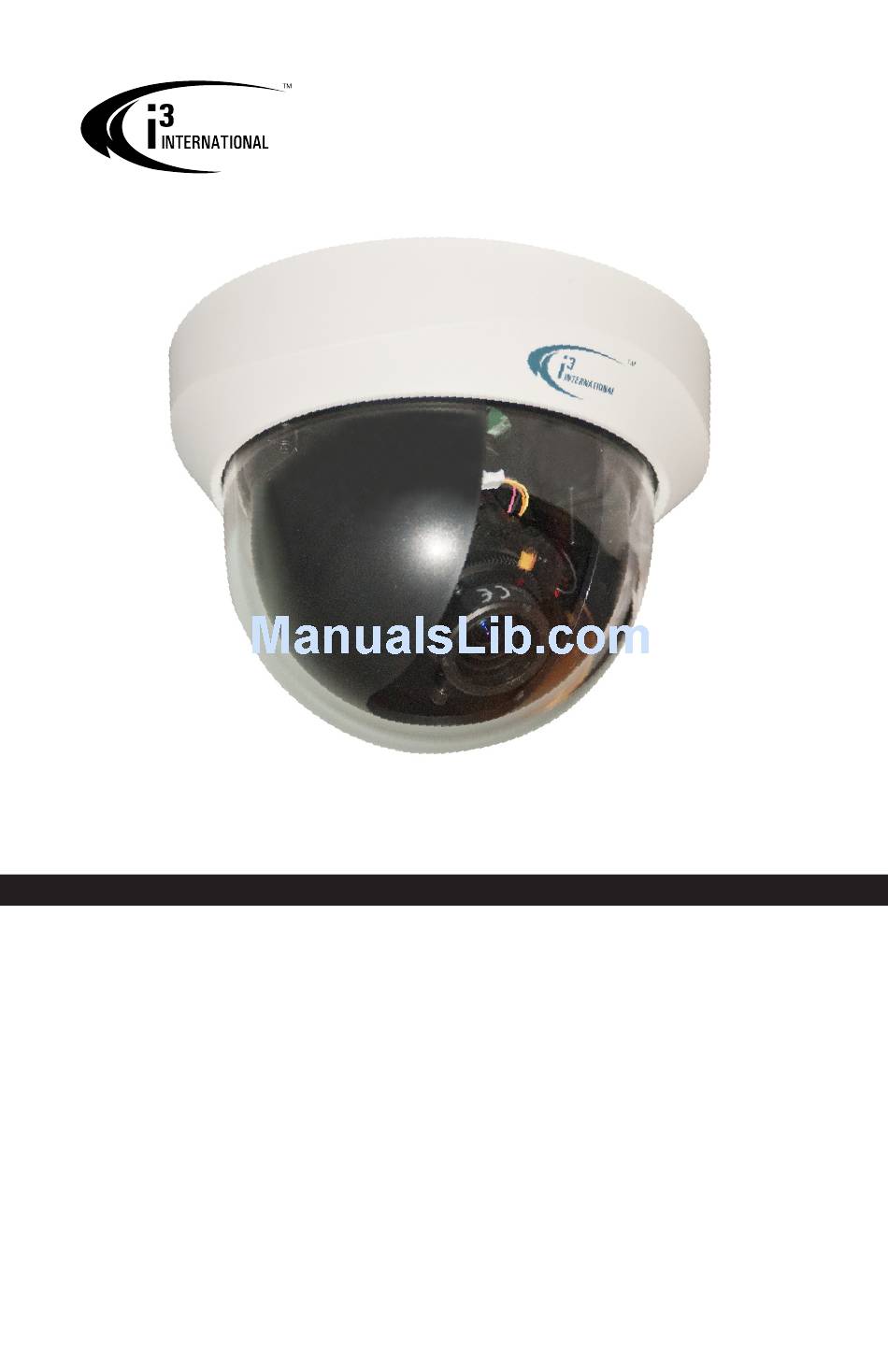

Ax49, Ax50, Ax51-series

User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ax49 and is the answer not in the manual?

Questions and answers

Related Manuals for i3 International Ax49

Summary of Contents for i3 International Ax49

  • Page 1: Table Of Contents

    Ax49, Ax50, Ax51-series User Guide CONTENTS Warnings and operation notes..........3 Product Overview ............4 Unpacking..............5 Installation..............6 Connecting your IP Camera to the SRX-Pro Server..10 Advanced Camera Setup..........17 Specifications..............30 Before attempting to connect or operate this product, read these instructions carefully. Save this manual for future use.

  • Page 2: I3-Trng-Cams-Ax49/Ax50/Ax51.Indd

    Neither i3 International Inc. nor its dealers or distributors shall be liable to any person or entity with respect to any liability, loss, or damage, caused or alleged to have been caused directly or indirectly by this information.

  • Page 3: Warnings And Operation Notes

    1. Warnings and operation notes Thank you for purchasing i3 Ax49/Ax50/Ax51 camera. If the system needs to be modified or repaired, contact a certified i3 International Dealer/Installer. When serviced by unauthorized technician, the system warranty will be voided. Should you have any problems or questions regarding our products, contact your local i3 International Dealer/Installer.

  • Page 4: Product Overview

    Blurry images are reduced and individuals and objects of interest come with perfect clarity. • Triple Streaming The AX49-50-51-series Network Camera is designed to show extreme image detail. H.264/MPEG4/MJPEG triple streaming allows you to choose the appropriate code for your bandwidth.

  • Page 5: Unpacking

    7. Printed Quick Start Guide x1 8. CD (User Manual, Annexxus Finder) x1 9. RJ45 Female / Female Coupler x1 10. Fully Assembled Network Dome Camera x1 If any parts are missing or damaged, contact the dealer you purchased the camera from. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...

  • Page 6: Installation

    Note: This connector is absent on Ax49D/Ax50D cameras. • RJ-45 Ethernet Connector: network connection.Supports PoE (Power over Ethernet) cable. Note: If PoE (Power over Ethernet) connector is used, an electrical cable is not required • BNC: video output i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 7 Use tapping type screws for all other surfaces. 4. For cement surfaces, insert the Plastic Anchors into the holes. For softer sur- faces, do not use the Plastic anchors. 5. Use the Rubber Feet for surface mounting. Plastic Anchors Tapping Type Screws i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 8 1. Remove the screw on the base of the camera. (a.) 2. Rotate the dome counter clockwise to unlock and pull free of the housing. 3. Remove the inner liner by gently pulling it free of the two notches in the housing. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 9 4. Adjust the tilt of the camera as necessary. 5. Adjust the pan of the camera as necessary. Note: Maintain tilt at 75 degrees or less to avoid distortion. See the image below to locate the distortion angle of the camera. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...

  • Page 10: Connecting Your Ip Camera To The Srx-Pro Server

    5.2 Camera Connection Options 5.3 Hardware/Software Requirements The following requirements must be met to achieve a successful network connection with the Ax49/Ax50/Ax51 IP camera. SRX-Pro Server: • i3 SRX-Pro Version 2.0 or higher • Windows XP, XPe or 7 Pro or 7e •...
  • Page 11 7. Follow the Annexxus Finder installation instructions until the application has been successfully installed on your SRX-Pro Server. 8. Double-click Annexxus Finder icon on the Desktop to launch the application. The application window will appear displaying a list of active network cameras i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 12 Edit. 10. Enter the new IP address and Subnet Mask of the camera in the Change IP Address area. The new camera IP address must match the original range of your SRX-Pro LAN or NIC1 card. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 13 15. Launch Internet Explorer on your SRX-Pro Server and enter the IP Address you have just assigned to your Annexxus camera. The password window will be displayed. Default Login/Password: Firmware Version: AP_01-00-60-33_i02 Login: admin Password: 1234 Firmware Version: AP_01-00-60-35_i02, or higher Login: i3admin Password: i3admin i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 14 17. Annexxus camera interface will be displayed in the Internet Explorer window. You should be able to see the camera image on the screen. If you do not see the camera image on the screen, call i3 International tech support for troubleshooting tips: 1.877.877.7241 18.
  • Page 15 20. Log In and go to the Setup -> IP Camera tab. 21. Click the Search button to display connected Annexxus cameras. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 16 25. Your Annexxus camera is now connected to SRX-Pro Server and is ready to record. You may change resolution and frame rate for the Annexxus camera in the IP Camera tab menu or you may choose to configure the camera’s advanced settings (see the following section). i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...

  • Page 17: Advanced Camera Setup

    The password window will be displayed. Enter the default camera User Name and the default Password. Camera’s user interface will be displayed in a separate Internet Explorer window. Default Login/Password: Firmware Version: AP_01-00-60-33_i02 Login: admin Password: 1234 Firmware Version: AP_01-00-60-35_i02, or higher Login: i3admin Password: i3admin i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 18 After making any setting adjustments, remember to click the Save button to save any changes made. You may switch to the advanced setup at any time by clicking the button in the bottom left-hand corner. To switch back to the Basic Setup, click the same button again. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...

  • Page 19: Camera Settings

    Switch to the Advanced Setup by clicking the Advance Setup button on the bottom left-hand corner of the screen as shown on the previous page. The Setup screen will change to reveal multiple setup tabs. Video Setup tab is displayed by default. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 20 » CBR (Constant Bit Rate): Produces the smoothest streaming for variable scenes, but is not ideal if highest image quality is desired. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 21 Configure Stream 3 - Third Streaming (Live View): • Video Codec: OFF or MJPEG. OFF setting will result in no video on Live View. • Resolution: Resolution for Third Streaming is pre-set to VGA and cannot be changed. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 22 IP Address: Manually enter the camera’s IP address here. This option should NOT be used if DHCP is enabled. • Subnet Mask: Manually enter the camera’s Subnet Mask here. This option should NOT be used if DHCP is enabled. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...

  • Page 23: System Setup

    NTP Server: assign an IP address or domain name for a time server. Default NTP Server: us.pool.ntp.org • Time Zone: select the correct time zone. After making any setting adjustments, remember to click the Save button to save any changes made. 6.4 System Setup i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...

  • Page 24: System Information

    All Annexxus-series cameras are sold with the most recent version of the firmware already installed. If in the future firmware updates are released, you can update your camera’s firmware by first downloading the firmware file from i3 International’s website or FTP site. After downloading firmware file, click the Browse... button in the camera’s System setup tab and locate the new firmware file.

  • Page 25: User Management

    Two types of user permissions exist: Aministrator and Viewer. Administrator users have access to the camera’s setup settings, while Viewer may only view camera live stream. Up to 10 unique users can be created per Annexxus camera. Note: The default Administrator account may not be deleted. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 26 1. Select a user in the User List 2. Click the Delete User button 3. Click OK in a confirmation window. The user will be deleted from User List. 6.6 Logs Logs setup tab displays all login and Alarms log records. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 27 4. If you are not satisfied with the size or positioning of the privacy zone, repeat steps 1-3 to re-draw it. 5. Set the Privacy Zone to ON to activate this setting. After making any setting adjustments, remember to click the Save button to save any changes made. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 28 Min Exposure: Set the minimum exposure time. Values range from 1/30 to Unlimited. • Sensitivity: Set the exposure sensitivity. Exposure will increase as the sensitivity value increases relative to the time interval. Values range from 1 to 10 with 10 being the most sensitive. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...
  • Page 29 • Set ICR (Mechanical) D/N Control to Auto, Forced BW or Forced Color Digital WDR • Set the Wide Dynamic Range Level if desired. The WDR can be turned OFF, set to Auto or to Levels 1-5. i3-TRNG-CAMS-Ax49/Ax50/Ax51.indd Rev. 141120...

  • Page 30: Specifications

    Rev. 141120...
  • Page 31 Rev. 141120...

  • Page 32: Birchmount Road, Unit

    i³ INTERNATIONAL INC. 1.866.840.0004 U.S.A. 1967 Wehrle Drive, Canada 780 Birchmount Road, www.i3international.com Suite 1, PMB# 034 Buffalo Unit 16, Scarborough, NY, 14221 ON, M1K 5H4...

This manual is also suitable for:

Ax50Ax51
