E-Wheels EW-74 Owner's Manual

4 wheel mobility scooter
Hide thumbs
Table of Contents

Advertisement

Quick Links

EW-74
Owner's Manual
Table of Contents
Page 2 - Feature Guide
0

Advertisement

Table of Contents
loading

Related Manuals for E-Wheels EW-74

Summary of Contents for E-Wheels EW-74

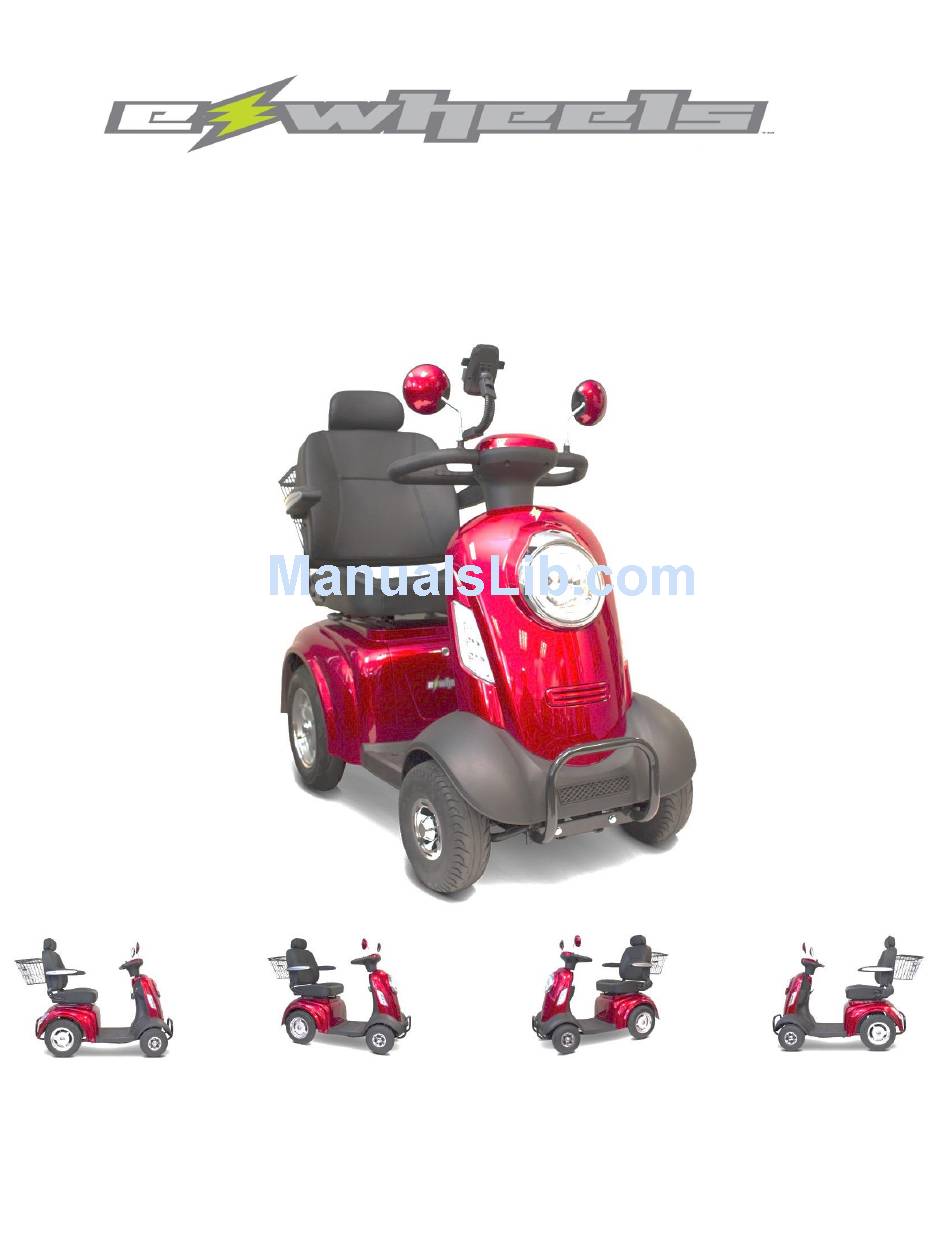

  • Page 1 EW-74 Owner’s Manual Table of Contents Page 2 - Feature Guide...
  • Page 2 Page 3 - Technical Specifications Page 4-8 - Operation of Scooter Page 9-10 - Charging and Battery Information Page 10 - Ramps and Curbs Page 11 - General Page 11 - Use While Under Influence Page 12-13 - Safety Requirements Page 14 - Warranty Captain’s Style Comfort Seat Large Rear Basket...

  • Page 3: Technical Specifications

    Ignition Location Rear Tubeless Tires Front Bumper Guard Technical Specifications Model EW-74 Weight Capacity 400LBS Speed: Up to 14mph Distance: Up to 45 miles per charge (distance varies on terrain, riders...

  • Page 4: Operation Of Scooter

    weight, road surface, etc.) Front Seat: Type Adjustable Comfort Seat Front seat: Size 17” x 19” x 23” Front Windshield: Rear Seat: Type Rear Seat: Size Seat Cushion Height: 24” From Floor Rear Foot Rest: Power: Electric 48 volts Motor Wattate: 700 Watt Peak Motor Type: Brushless Transaxle with Differential...
  • Page 5 Insert key into ignition and turn clockwise to turn the scooter on. The battery indicator bars will display the current charge level when on. Turn the key counter- clockwise to power off when stopped. 2. Battery Power Indicator Lights The battery power indicator bars will light up when turned on.
  • Page 6 can be adjusted upwards or downwards as needed to light up the path ahead. Apply light pressure to the headset, and push in the desired direction. 4. Delta Multi-Directional Variable Throttle The forward and reverse movements are controlled by the Delta variable throttle.
  • Page 7 There is a lever to engage either the electromagnetic braking system, or allows the machine to be free rolling. Pull the lever backwards until you hear a click to activate the electromagnetic brakes. Pull the handle forwards until you hear a click to allow for the machine to free rolling.
  • Page 8 The turn signal, light on/off button, high/low beam light, and horn buttons are all located in one area. Push the symbol with the labeled function as needed. See symbol functions below. Left Turn Signal High/Low Beam Right Turn Signal Horn Light On/Off 8.

  • Page 9: Charging Instructions

    The batteries and circuit breaker can be accessed by using the same key for the ignition. The batteries are maintenance free, so accessing the batteries will only need to be done when they need to be replaced. 10. Cell Phone Holder There is an optional cell phone holder that is installed on the handle bar assembly.
  • Page 10 The smart charger included with your scooter will shut off its high current mode when the scooter is fully charged. When the light on the charger is red, the scooter is still charging. When the light turns green, this means the scooter is fully charged.

  • Page 11: Ramps And Curbs

    - Do not use automotive starter batteries. They are not designed to handle long deep discharge and are unsafe for use in your scooter. - The useful life of a battery is quite often a reflection of the care it receives.

  • Page 12: Use While Under The Influence Of Medication Or Alcohol

    1. Always keep your feet on the scooter while riding. 2. Do not exceed the weight capacity of 400lbs. 3. Do not attempt to lift or move the scooter by any of its removable parts. Personal injury and damage to the scooter may result. 4.
  • Page 13 The EW-74 has the best stability and performs the best under the normal driving conditions (dry, level ground with concrete or asphalt). Extra care must be taken when riding on other surfaces (grass, gravel, etc.). DO NOT exceed the specified climbing angle. Do not operate the scooter before you have fully read and understood the manual.

  • Page 14: Warranty

     Always use required safety equipment while operating.  Do not modify or change the electrical system and frame. Doing so will void the warranty. Warranty: For valid warranty claims E-Wheels will, at their discretion, replace/repair/refund items mutually agreed to be defective.
  • Page 15 E-Wheels warranty as following: 1. Frame: (3) year limited warranty. 2. Electronic components: (1) year limited warranty. 3. Controllers: (1) year limited warranty. 4. Batteries: Not warranted. 5. Consumables: Not warranted (Tires, tubes, seat cushions, etc). 6. Labor costs are NOT covered by warranty.
