  • Page 1: Quick Start Guide

    8680i Wearable Scanner Quick Start Guide 8680-EN-QS Rev (a) 3/18...

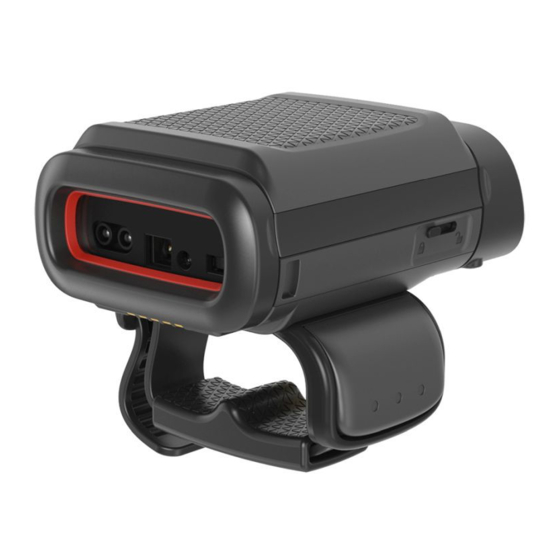

  • Page 2 Overview Battery Battery latch Right button Left button User window Trigger Scanner Note: The battery must be fully charged before the first use. An MB4-BAT-SCN02 or an MB4-SCN02 Charging Station must be purchased separately.
  • Page 3 Attach the Scanner to Your Hand Slide your fingers into the loosened strap. Pull the strap to secure to your fingers.
  • Page 4 Right or Left Handed Operation To release the finger trigger, turn over the scanner. Slide the latch toward the user window to release the finger trigger. Turn the finger strap around and snap it into place to change the operation to the correct hand.
  • Page 5: Wrist Position When Scanning

    Warning: Do not stare directly into the laser beam. How to Scan a Bar Code The 8680i scanner has a view finder that projects a bright aimer line. This aimer line should be centered over the bar code, but it...
  • Page 6 Linear bar codes 2D Matrix symbol s The aimer line is smaller when the scanner is closer to the code and larger when it is farther from the code. Symbologies with smaller bars or elements (mil size) should be read closer to the unit.
  • Page 7: Pair With A Bluetooth Device Using A Hid Keyboard

    Connect the Scanner via Bluetooth Pair with a Bluetooth Device Using a HID Keyboard The 8680i scanner can pair with host Bluetooth devices such as personal computers, laptops, and tablets. This is the default set- ting for an 8680i scanner. Follow the steps below to establish one-way communication with the host device.
  • Page 8 Some PDT hosts display a prompt for a PIN. Ignore this message. If your host device does not automatically pair with the scanner, a PIN is displayed. This PIN must be scanned within 60 seconds. Using the scanner, you must quickly scan Bluetooth PIN Code below, then scan the numeric bar code(s) for the PIN code from the chart below, then scan the Save bar code.
  • Page 9 The Bluetooth symbol appears in the scanner window when the scanner pairs with a host. Pair with an Android™ Device The 8680i scanner can pair with Android devices. Set your Android device so it searches for other Bluetooth devices. (Refer to your Android device’s User’s Guide for pairing instructions.)
  • Page 10: Tap And Pair

    Pair with a Bluetooth Serial Port - PCs/Laptops The 8680i scanner can pair with a Bluetooth serial port on a PC or laptop. Scanning the Non-Base BT Connection bar code below unlinks your scanner and puts it into a discoverable state.
  • Page 11 Once the scanner battery is charged and you have paired it to a host device, you may begin scanning bar codes. Connect the Scanner via WiFi Note: WiFi capability is only supported by 8680i scanners that are licensed for WiFi.
  • Page 12 The 8680i scanner can be used with WiFi networks using EZConfig Cloud for Scanning. Install EZConfig Cloud for Scanning on page 178 to install the EZConfig software. Use your interface cable to connect the 8680i scanner to your PC and open EZConfig.
  • Page 13 When your WiFi list appears, select the network to which you want to connect the scanner and click on Properties. Use the information shown for the IPv4 address, the IPv4 DNS servers, and the network name to fill in the EConfig screen.
  • Page 14 192.345.67.0 192.345.67.0 Honeywell_86Net Enter network password 192.345.67.89 3390 Note: The TCP Port is always 3390.
  • Page 15: Replace The Battery

    Click on either Create 1D Wifi Bar Code or Create 1D Wifi Bar Code. Print the bar code and scan it with the scanner to connect to the WiFi network. Replace the Battery Note: The battery should be replaced in an environment free from excessive dust or particulate to avoid an internal buildup of dust in the unit.
  • Page 16: User Documentation

    Patents For patent information, see www.hsmpats.com. Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made.
  • Page 17 This document contains proprietary information that is pro- tected by copyright. All rights are reserved. No part of this docu- ment may be photocopied, reproduced, or translated into another language without the prior written consent of HII. Copyright2018 Honeywell International Inc. All rights reserved.
  • Page 18 If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions.
  • Page 19 ‫ﻭﺍﻧﻘﺮ ﻋﻠ‬ ‫)מצא משאבים < אחריות‬ Product Warranty < Get Resources ‫על‬ (Záruka výrobku). Get Resources > Product Warranty (Pobierz zasoby > .(‫מוצר‬ Gwarancja produktu). Honeywell International Inc. 8680-ML-RS Rev (b) 9680 Old Bailes Road 4/18 Fort Mill, SC 29707 USA...
