Bakers Pride DS-805 Single Specifications

SUPER DECK
GS/DS SERIES
BAKERS
GAS DECK OVENS
PRIDE

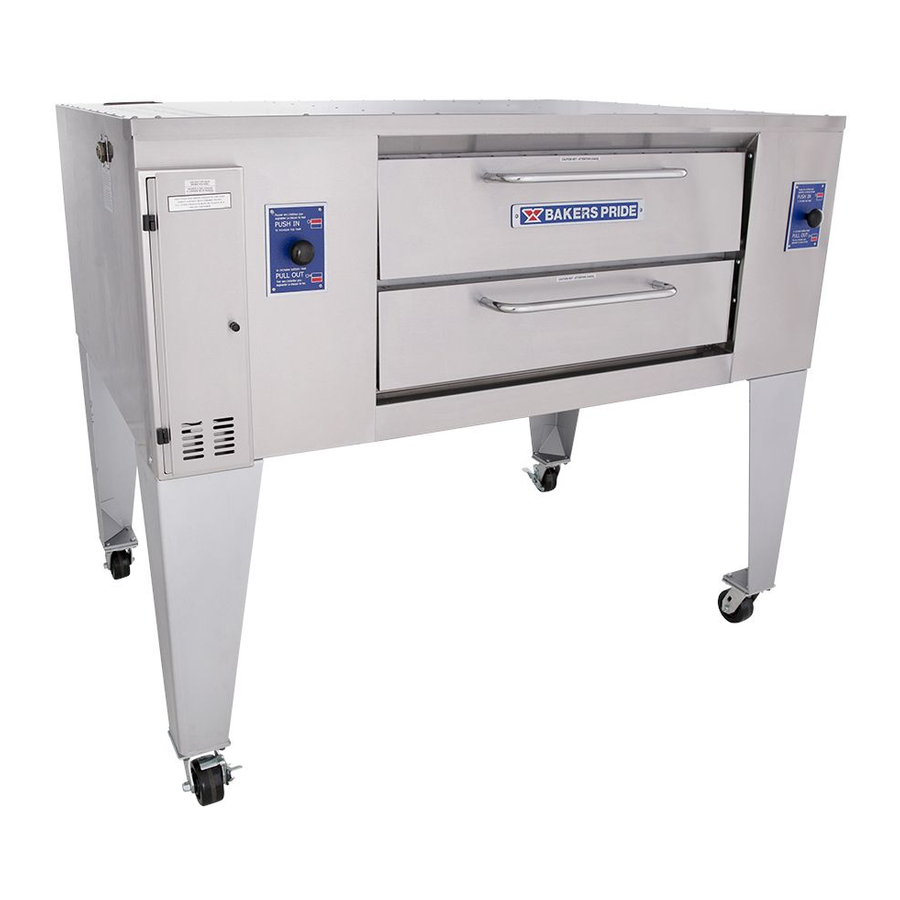

DS -805
with optional casters
SPECIFICATIONS
BAKERS PRIDE Super Deck GS/DS gas Deck Ovens are designed
for high volume pizza and all-purpose operations.
Ovens may be stacked two high. Oven exteriors are all heavy-
gauge, type 403 stainless steel and are fully insulated up to 5"
(127mm) thick for cooler outer temperatures and consistent interior
temperatures.
Interior oven frame is constructed of 1/4" (6mm) heavy-duty angle
iron frame, completely welded to form a single, unitized section.
The oven body and lining are then welded to the framework.
Oven interiors are manufactured of high-heat resistant 16-gauge
aluminized steel. Doors are fully insulated, spring balanced with
tubular steel handles and will remain open or closed until moved.
All models feature independent, operator-controlled top & bottom
heat control dampers and micro slides for perfectly balanced
results.
GS/DS Series features a 300°-650° F (149°-343°C)
thermostat, 6 3/4" (171mm) interior deck height with
(38mm) thick Cordierite hearth stone decks (steel decks optional)
and are supported by a 1/4" (6mm) angle iron frame.
Combination gas control incorporates a manual gas valve, pilot
safety and pressure regulator. Easily removable, slide-out, heavy-
duty flame diverters distributes the burner flame uniformly in the
burner chamber. A 3/4" (19mm) NPT gas connection is located on
the left side and left rear of oven - operator/installer may choose.
Heavy-duty, 7-gauge hot rolled steel legs are standard and finished
with durable Bakertone Gray.
2 Year limited part and labor warranty standard.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
BAKERS
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
PRIDE
www.bakerspride.com
Job ____________
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
throttling
q
1 1/2"
q
q
q
q
Item # ___________
GAS DECK OVENS
Model GS-805 Single
q
Model GS-990 Double
q
Model DS-805 Single
q
Model DS-990 Double
q
STANDARD FEATURES
GS Series @ 60,000 BTUH per deck and DS Series @
70,000 BTUH per deck, natural or LP gas — LP not available
on CE models
300°-650° F (149°-343°C) throttling thermostat
Top & bottom heat control dampers & micro-slides
Combination gas controls with valve, regulator & pilot safety
Heavy-duty, slide-out flame diverter
6 3/4" (171mm) interior deck heights with 1 1/2" (38mm)
thick hearth stone decks
All stainless steel exteriors
Aluminized steel interiors
Spring balanced, fully insulated doors
Side or rear gas connections — installers choice
7-Gauge legs finished in Bakertone Gray
Fully insulated throughout
2 Year limited part and labor warranty
OPTIONS & ACCESSORIES
Steel decks in lieu of hearth stone decks
150°-550° F (65°-288°C) thermostat
Set of 4 casters - two with locks
Stainless steel leg covers
Special height legs
Automatic oven starter
Draft flue for direct vent (not available on CE units)
Light stone decks
CERTIFICATIONS
®
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
G
CERTIFIED
