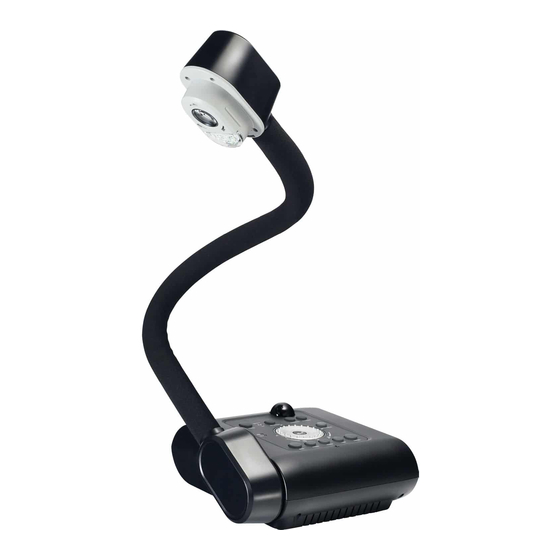

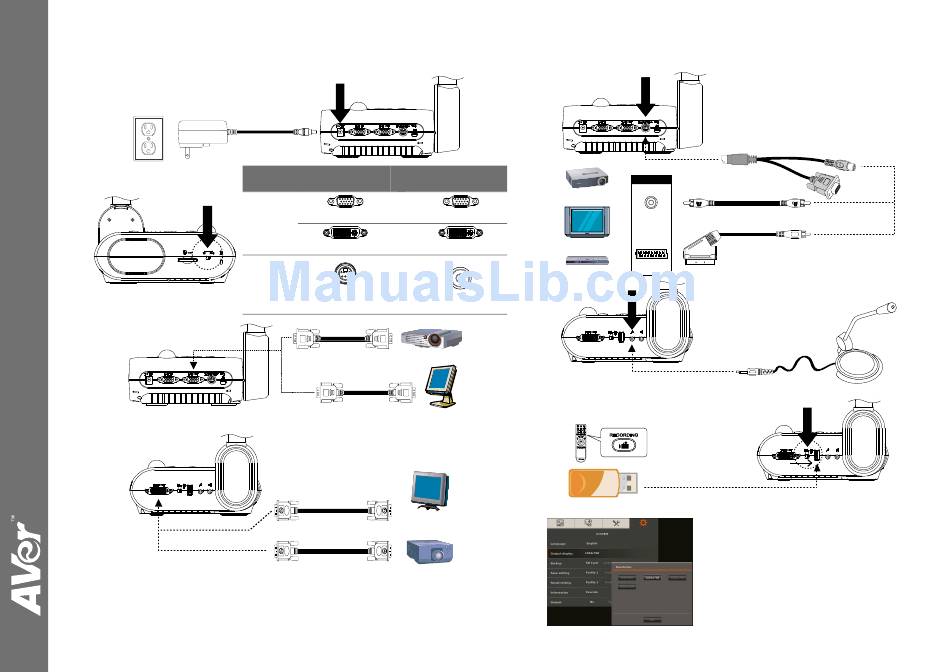

AVerVision F – Series
Quick Guide
(1)
Wall outlet
Power adapter
(2)
(3‐A)
Switch
AVerVision
>
RGB OUTPUT
A. RGB
>
DVI-I OUTPUT
B. TV
>
RS232/CVBS
(use RS-232/CVBS cable)
RGB cable
LCD/DLP projector
RGB cable
LCD Monitor
DVI cable
with DVI interface
(not supplied)
DVI cable
(not supplied)
LCD/DLP projector
with DVI interface
(3‐B)
Display Device
P r o j e c t o r
RGB INPUT
Te l e v i s i o n
DVI-I INPUT
V C R
(4)
VIDEO IN
(5)
LCD monito
r
RM-M3
USB Flash Drive
(6)
RS-232/CVBS cable
I N P U T
RCA cable
VIDEO
RCA to SCART cable
(not supplied)
SCART
Output Display
Set the resolution to display the
image on screen. This selection will
be disabled in TV output mode.
