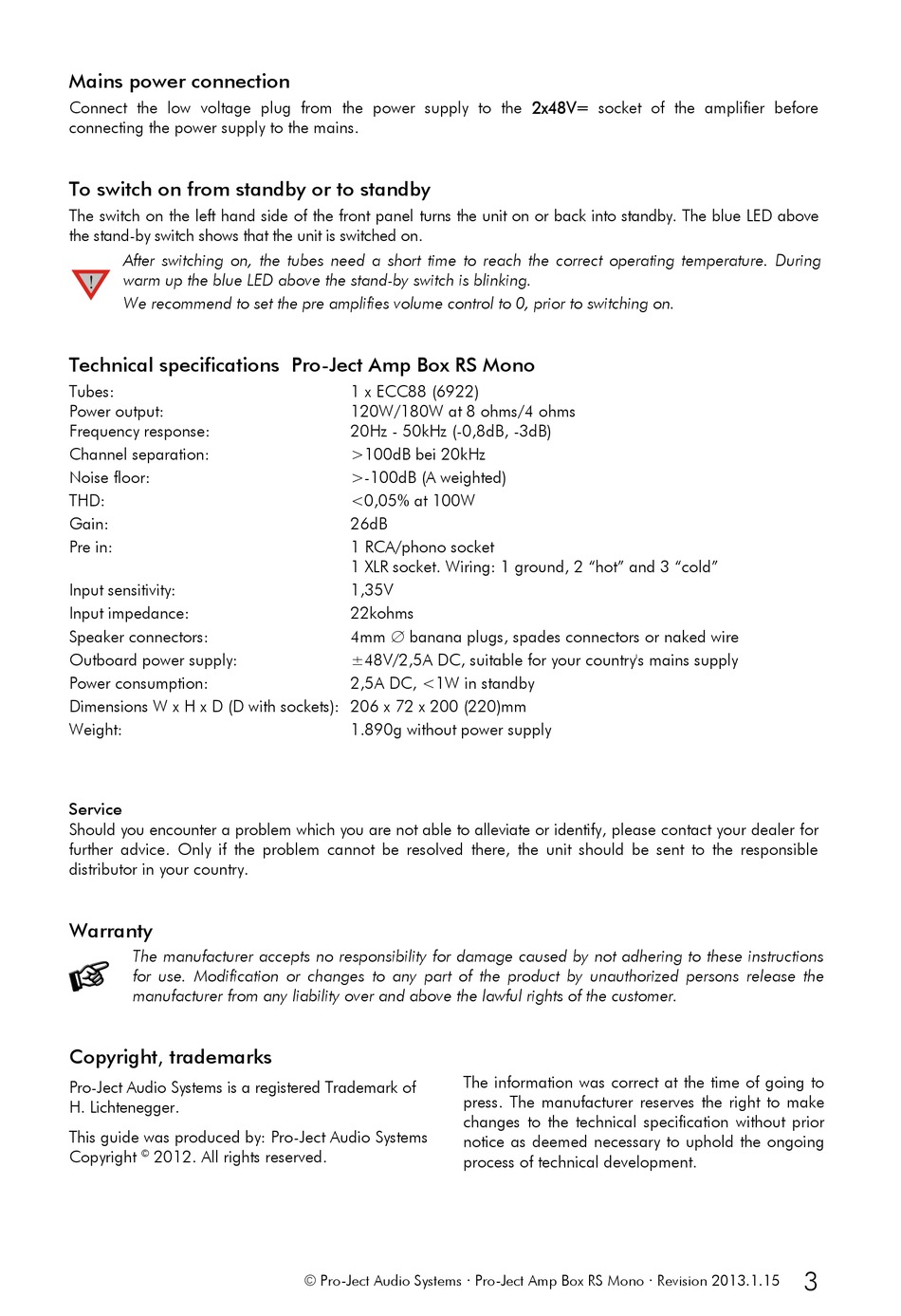

Mains power connection

Connect the low voltage plug from the power supply to the 2x48V= socket of the amplifier before
connecting the power supply to the mains.

To switch on from standby or to standby

The switch on the left hand side of the front panel turns the unit on or back into standby. The blue LED above
the stand-by switch shows that the unit is switched on.
After switching on, the tubes need a short time to reach the correct operating temperature. During
warm up the blue LED above the stand-by switch is blinking.
!
We recommend to set the pre amplifies volume control to 0, prior to switching on.

Technical specifications Pro-Ject Amp Box RS Mono

Tubes:
Power output:
Frequency response:
Channel separation:
Noise floor:
THD:
Gain:
Pre in:
Input sensitivity:
Input impedance:
Speaker connectors:
Outboard power supply:
Power consumption:
Dimensions W x H x D (D with sockets): 206 x 72 x 200 (220)mm
Weight:

Service

Should you encounter a problem which you are not able to alleviate or identify, please contact your dealer for
further advice. Only if the problem cannot be resolved there, the unit should be sent to the responsible
distributor in your country.

Warranty

The manufacturer accepts no responsibility for damage caused by not adhering to these instructions
for use. Modification or changes to any part of the product by unauthorized persons release the
manufacturer from any liability over and above the lawful rights of the customer.

Copyright, trademarks

Pro-Ject Audio Systems is a registered Trademark of
H. Lichtenegger.
This guide was produced by: Pro-Ject Audio Systems
Copyright 2012. All rights reserved.
©
1 x ECC88 (6922)
120W/180W at 8 ohms/4 ohms
20Hz - 50kHz (-0,8dB, -3dB)
>100dB bei 20kHz
>-100dB (A weighted)
<0,05% at 100W
26dB
1 RCA/phono socket
1 XLR socket. Wiring: 1 ground, 2 "hot" and 3 "cold"
1,35V
22kohms
4mm  banana plugs, spades connectors or naked wire
±48V/2,5A DC, suitable for your country's mains supply
2,5A DC, <1W in standby
1.890g without power supply
The information was correct at the time of going to
press. The manufacturer reserves the right to make
changes to the technical specification without prior
notice as deemed necessary to uphold the ongoing
process of technical development.
© Pro-Ject Audio Systems · Pro-Ject Amp Box RS Mono · Revision 2013.1.15
