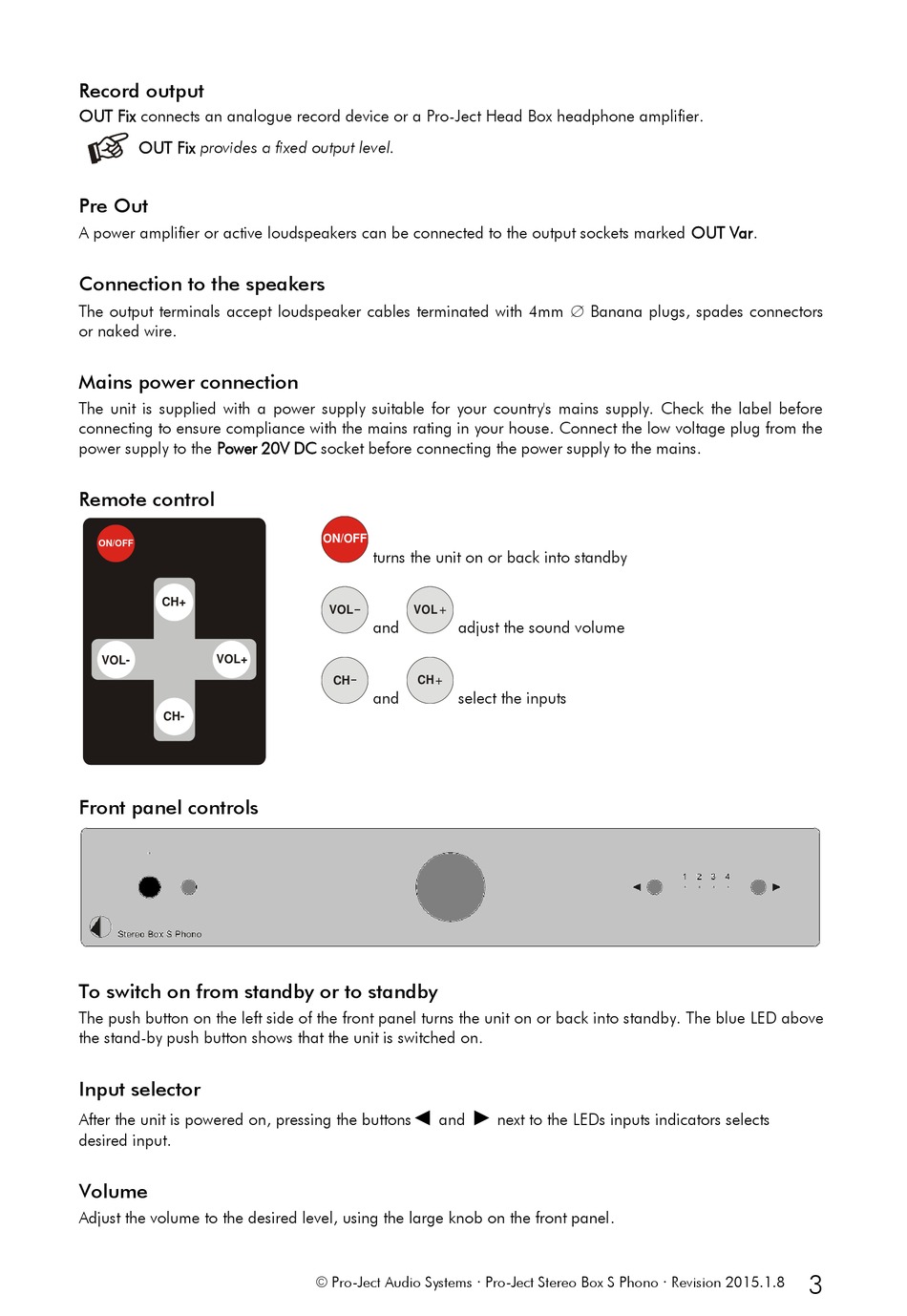

Record output

OUT Fix connects an analogue record device or a Pro-Ject Head Box headphone amplifier.
OUT Fix provides a fixed output level.

Pre Out

A power amplifier or active loudspeakers can be connected to the output sockets marked OUT Var.

Connection to the speakers

The output terminals accept loudspeaker cables terminated with 4mm  Banana plugs, spades connectors
or naked wire.

Mains power connection

The unit is supplied with a power supply suitable for your country's mains supply. Check the label before
connecting to ensure compliance with the mains rating in your house. Connect the low voltage plug from the
power supply to the Power 20V DC socket before connecting the power supply to the mains.

Remote control

ON/OFF
CH+
VOL+
VOL-
CH-

Front panel controls

To switch on from standby or to standby
The push button on the left side of the front panel turns the unit on or back into standby. The blue LED above
the stand-by push button shows that the unit is switched on.
Input selector
After the unit is powered on, pressing the buttons
desired input.

Volume

Adjust the volume to the desired level, using the large knob on the front panel.
1
ON/OFF
turns the unit on or back into standby
0 0
VOL VOL +
and adjust the sound volume
0 0
+
CH CH
and select the inputs
◄ ►
and
© Pro-Ject Audio Systems · Pro-Ject Stereo Box S Phono · Revision 2015.1.8
next to the LEDs inputs indicators selects
3
