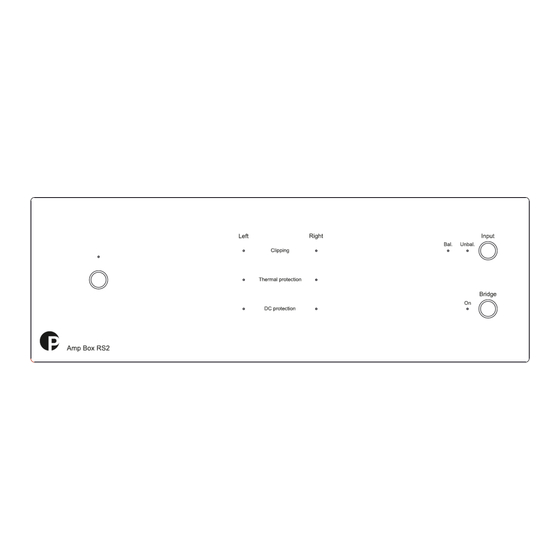

- Page 1 INSTRUCTIONS FOR USE Amp Box RS2...
- Page 2 Connect the low voltage plug from the power supply to the Power 40V DC socket of the unit before connecting the power supply to the mains. Amp Box RS2 can be switched on and off by using 3 different methods which are equal in priorities.
- Page 3 We recommend to set the pre amplifies volume control to 0, prior to switching on. 2. Remote power on - triggers Amp Box RS2 can be switched on via other Box Design components when a 12V trigger voltage is present at the 2.5mm socket marked Trigger Input. Special power-on cables (polarity ) in diverse lengths are available as accessories.
- Page 4 Bridge Mode The Amp Box RS2 can be configured to work as a mono amplifier (Bridge Mode) which offers a higher output power. Connect your speaker to the marked “Bridge +” and “Bridge –“ speaker outputs. Connect the input cable to the left channel XLR input on Amp Box RS2 Activate Bridge mode by pressing the “Bridge”...
- Page 5 This guide was produced by: Pro-Ject Audio Systems notice as deemed necessary to uphold the ongoing Copyright © 2024. All rights reserved. process of technical development. © Pro-Ject Audio Systems · Amp Box RS2 · Revision 06.09.2024...
- Page 6 EC regulation 1275/2008 and its framework directive 2009/125/EC for energy related products (ErP) according to the test performed under the following technical standard EN 50564:2011 Pro-Ject Audio Systems a division of Audio Tuning GmbH 1050 Vienna, Austria, Margaretenstrasse 98 info@project-audio.com © Pro-Ject Audio Systems · Amp Box RS2 · Revision 06.09.2024...
