To power supply
in your system
SATA Power Cable
SATA Data Cable
LED Cable

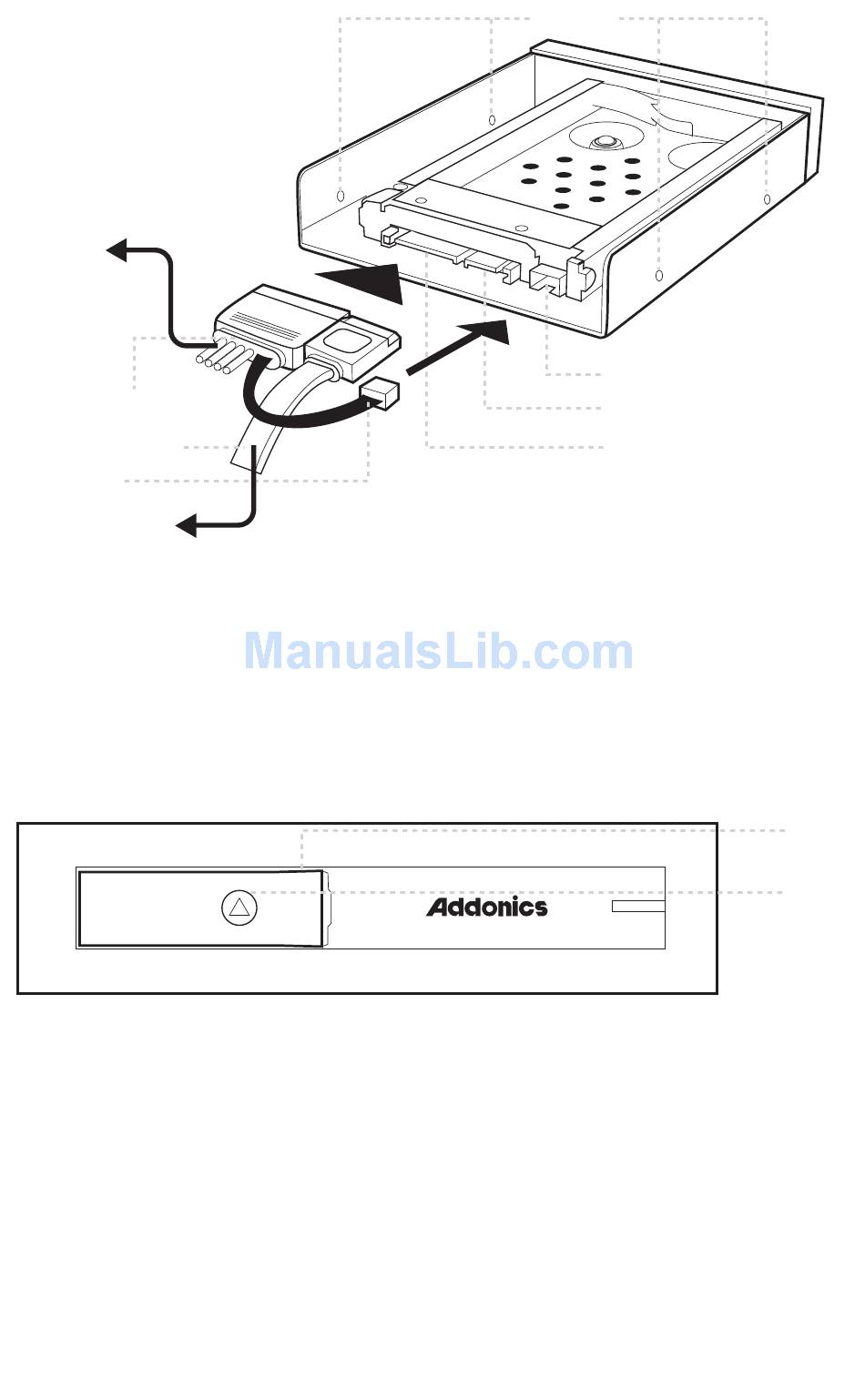

Installing the 2.5" Snap-In SP
Screw the device into the 3.5" drive bay of your computer. After unit is screwed
in, attach the SATA power cable that comes with the unit and the SATA data cable
into the device's connectors as shown above. Connect the LED cable to the 4 pin
LED port on the back of the device. Attach the other end of the cables to your
computer or host controller.
Front View

Opening device and inserting HD

By default the lock should be set to the open (up) position. Pull the lever to open
up the device and slide in the 2.5" HD right side up.
After inserting your HD to the device, close the cover. Lock the cover with the
included key by turning it clockwise all the way.

Removing the HD

Make sure that there is no HD activity before unlocking the cover. Pull the lever
and carefully pull out the HD.
Note: The HD can reach temperatures exceeding 50°C. Handle with care to
prevent accidental burning.
Back View
To SATA port
in your system
Screws
4 Pin LED Port
SATA Data Connector
SATA Power Connector
Lever
Lock
