Insignia NS-CSPGASP-B Quick Setup Manual

Insignia NS-CSPGASP-B Quick Setup Manual

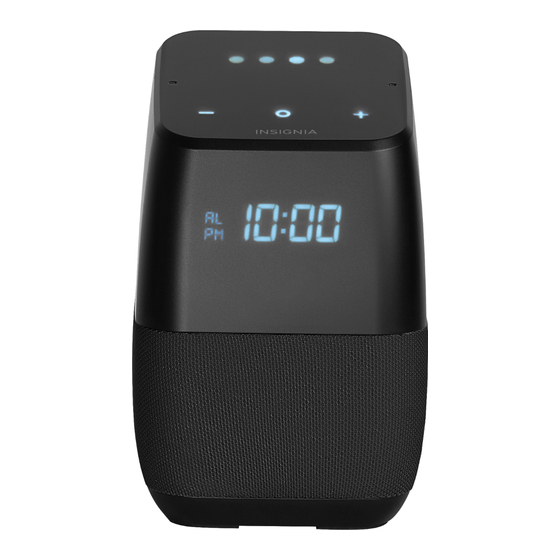

Insignia voice speaker with google assistant built in
Hide thumbs Also See for NS-CSPGASP-B:

Advertisement

Available languages

Available languages

Quick Links

9
Do not defeat the safety purpose of the polarized or grounding plug. A polarized
plug has two blades with one wider than the other. A grounding plug has two
blades and a third grounding prong. The wide blade or the third prong is provided
for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched, particularly at the plugs,
outlets, and at the point where they exit from the apparatus.
QUICK SETUP GUIDE
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or table
Insignia Voice™
specified by the manufacturer, or sold with the apparatus.
When a cart or rack is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13 Unplug the apparatus during lightning storms or when
Speaker With
unused for long periods of time.
14 Refer all servicing to qualified personnel. Servicing is
required when the apparatus has been damaged in any way. Examples of
Google Assistant
service-requiring damages include power supply cord or plug damage, liquids
being spilled or objects falling onto the apparatus, apparatus not operating
normally, and/or apparatus being dropped.
Built in
15 Do not install this equipment in a confined space, such as a book case or similar
unit, and make sure that it is well ventilated. The ventilation should not be impeded
by covering the ventilation openings with items, such as newspaper, table-cloths,
or curtains.
NS-CSPGASP-B / NS-CSPGASP-BC /
16 WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture. The apparatus shall not be exposed to dripping or splashing and
NS-CSPGASP-G
objects filled with liquids, such as vases, shall not be placed on apparatus.
17 WARNING: The power adapter is used as a disconnect device. The disconnect
PACKAGE CONTENTS
device shall remain readily operable.
18 The equipment shall be used at a maximum of 95° F (35° C) ambient temperature.
• Speaker
19 WARNING: Please refer to the information on the exterior bottom enclosure for
• Power adapter
electrical and safety information before installing or operating the apparatus.
• Quick Setup Guide
FIND YOUR USER GUIDE ONLINE!
FEATURES
Google Assistant features
Go to www.insigniaproducts.com, enter
• Play and control music from your favorite services
NS-CSPGASP in the search box, then press ENTER.
Next to Features, click Support & Downloads, then
• Set alarms, add items to your shopping list, learn about
next to User Guide, click the language you want.
your commute, and more
• Tap into the power of Google to get real-time answers to
your questions
IMPORTANT SAFETY INSTRUCTIONS
• Link compatible smart-home products to turn off lights or
1
Read these instructions
enjoy entertainment on your TV
2
Keep these instructions
Insignia Voice
TM
features
3
Heed all warnings
4
Follow all instructions
• Wirelessly stream your music from any Bluetooth-enabled
5
Do not use this apparatus near water, for example, in a wet basement or near a
device to your speaker
swimming pool.
• Check the time, alarm, temperature, volume, and mode
6
Clean only with a dry cloth.
with the built-in display
7
Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8
Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatuses (including amplifiers) that produce heat.
Before using your new product, please read these instructions to prevent any damage.
Control panel
FEATURE
DESCRIPTION
• Quick hand wave (less than one second): Illuminates your buttons and
lowers the volume/snoozes your alarm
Proximity
• Hold hand over: Lowers brightness of all buttons
• Touch button: Raises button to full brightness
Google
Assistant /
Microphone
State
Back
Play/Pause
button
Microphone on/off
Factory reset
Volume + /-
buttons
Power status light
Front
USB charge out
Time and
5V/1A
alarm
Temperature /
Power Input
12V/2.5A
Volume / Mode
FEATURE
DESCRIPTION
Power Input
Plug in to turn your speaker on. The white LED on the back of your speaker blinks
slowly, then turns on.
Microphone
• Short press to turn microphone on or off. The orange LEDs on the top of your
on/off/Factory
speaker light solid when the microphone is muted.
reset
• Press for 12 seconds to reset the product.
BUTTONS
USB charge out
Connect to your device to supply 5V/1A charging.
DESCRIPTION
+
×
×
×
Press to lower your volume. Press and hold to decrease it quickly.
×
×
×
Press to increase your volume. Press and hold to increase it quickly.
• Press quickly to play or pause your audio.
×
×
×
• Hold for four seconds, then release to activate the Google Assistant.
Press to lower your display brightness. Press and hold to lower it quickly.
×
×
×
Note: Use audio controls to completely turn off the display (for example, say
"Hey Google, turn off the display light. " ).
Press to raise your display brightness. Press and hold to raise it quickly.
×
×
×
• Hold for four seconds to turn on Bluetooth mode and pair your device.
×
×
×
• Press quickly to turn Bluetooth off.
Hold for more than four seconds, then release to turn proximity on or off.
×
×
×
The display shows Pon or Poff to let you know if proximity is on or off.
SETTING UP YOUR SPEAKER
Bluetooth Set-up
This speaker is equipped with Bluetooth to allow wireless
1 Place your speaker in a convenient place.
playback from any Bluetooth-enabled phone or tablet.
2 Plug one end of the power adapter into a power outlet,
1 Press and hold - and + buttons for four seconds to enter
then plug the other end into your speaker. Your speaker
Bluetooth pairing mode.
powers on.
3 Make sure that your Wi-Fi, Location Services (GPS), and
2 Click "NS-CSPGASP" or the device name you entered during
Bluetooth are turned on/enabled on your device.
Google Home App setup on your device to pair with the
speaker.
4 Make sure that the clock on your device is set to the
correct time.
3 After the speaker and your device are paired, you can stream
music from your device to the speaker.
5 Download the Google Home app on a phone or tablet to
set up your speaker.
Notes:
• When your speaker is in Bluetooth-pairing mode, the display will
6 To use Google Assistant, you must sign in to your Google
blink bt.
Account.
• When your speaker and Bluetooth-device are paired, the display will
For more help, visit g.co/home/setup.
show a solid bt.
• You can use voice commands to turn Bluetooth on or off. Try, "Turn
Google Assistant
Bluetooth (on/off)."
Just start by saying "Ok Google" or "Hey Google," then ask it
• Your speaker will remember the last three devices that were
connected to it via Bluetooth and will automatically connect to one of
questions or tell it to do things.
those devices when Bluetooth is turned on.
Use these anytime:
• "Play some music"
TURNING PROXIMITY ON OR OFF
• "Turn up the volume"
This speaker is equipped with proximity detection that is turned
• "What's the weather like in Minneapolis?"
on by default. When proximity detection is turned on, your
Your speaker also has some specific voice commands:
speaker will temporarily decrease the volume of the music or
• "Turn screen (on/off)"
snooze your alarm when you wave your hand over your
• "Turn screen to __ percent"
speaker. Turning off proximity detection will only turn off the
• "Turn display (on/off)"
volume decrease function.
• "Turn display to __ percent"
To turn proximity detection on or off:
• "(Increase/decrease) volume"
1 Hold all three buttons on the top of your speaker for more
• "Turn the volume (up/down)"
than four seconds.
• "Turn volume to __ percent"
2 Release all three buttons. The display shows Pon or Poff to
let you know if proximity is on or off.
The LEDs on the top of your speaker are white while
recording your question.
Learn more about what your Assistant can do at:
SPECIFICATIONS
http://assistant.google.com/discover/
• Product dimensions (W × D × H): 3.7 × 3.7 × 5.9 in.
Note: The volume level increments by 10% when using voice
commands to increase or decrease volume.
• Weight: 19.4 oz. (550 g)
• Power input: 12V/2.5A
Google Chromecast built in
• USB power out: 5V/1A
• Speaker wattage: 8W
Follow the three steps below to enjoy this feature:
• Power cord length: 4.9 ft. (1.5 m)
1 Connect a phone or tablet to the same Wi-Fi network as
your speaker using the Google Home App.
• Maximum ambient temperature: 95° F (35° C)
• Android OS: 4.3 or higher
2 Cast podcasts, music, and more from 100+
Chromecast-enabled apps.
3 Tap the Cast button in a Chromecast-enabled app to play
music on your speaker.
TROUBLESHOOTING
LEGAL NOTICES
Warning: Changes or modifications to this unit not expressly approved by the party
PROBLEM
SOLUTION
responsible for compliance could void the user' s authority to operate the equipment.
No power
• Make sure that your speaker is plugged in and turned on.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
No sound or low
• Make sure that your Bluetooth device is turned on, Bluetooth is
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
volume in
turned on, and NS-CSPGASP or the device name you entered during
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
Bluetooth Mode
Google Home App setup is selected.
interference to radio communications.
• Turn up the volume on your speaker.
However, there is no guarantee that interference will not occur in a particular installation. If
• Turn up the volume on your Bluetooth device.
this equipment does cause harmful interference to radio or television reception, which can be
• Make sure that your Bluetooth device is not muted.
determined by turning the equipment off and on, the user is encouraged to try to correct the
• Make sure that your speaker is not paired to another Bluetooth
interference by one or more of the following measures:
device.
—Reorient or relocate the receiving antenna.
• Make sure that your Bluetooth device is not paired to another
—Increase the separation between the equipment and receiver.
Bluetooth device.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
Cannot establish
• Shorten the distance between your speaker and your Bluetooth
Bluetooth
device.
—Consult the dealer or an experienced radio/TV technician for help.
connection
• Turn your devices off, then on. Re-pair your speaker and your
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
Bluetooth device.
conditions: (1) this device may not cause harmful interference, and (2) this device must
• Make sure that your speaker is not paired to another Bluetooth
accept any interference received, including interference that may cause undesired operation.
device.
RF Exposure Statement
• Make sure that your speaker and Bluetooth device are both in pairing
To maintain compliance with FCC' s RF Exposure guidelines, this equipment should be installed
mode.
• Make sure that your Bluetooth device supports Bluetooth v4.0 and
and operated with a minimum distance of 20 centimeters between the radiator and your body.
Industry Canada Compliance
below.
• Make sure that your Bluetooth device is not connected to any other
IC Statement
device.
This device complies with Industry Canada licence-exempt RSS standard(s).
• Make sure that you have selected NS-CSPGASP or the device name
Operation is subject to the following two conditions:
you entered during Google Home App setup.
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
My Bluetooth device
• Shorten the distance between your speaker and your Bluetooth
operation of the device.
keeps unpairing
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
"NS-CSPGASP" does
• Shorten the distance between your speaker and your Bluetooth
not appear on my
device.
(1) l'appareil nedoit pas produire de brouillage, et
Bluetooth device
• Put your speaker into pairing mode, then refresh your list of
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
Bluetooth devices. For more information, see the documentation
brouillage est susceptible d'en compromettre le fonctionnement.
that came with your Bluetooth device.
This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
My device cannot
• Check the Wi-Fi settings on your device to make sure that Wi-Fi is
20 centimeters between the radiator and your body.
connect to Wi-Fi
turned on.
Ce matériel est conforme aux limites d'exposition aux rayonnements rf de ic énoncés dans un
• Make sure that you selected the right network and entered the
autre environnement. ce matériel doit être installé et exploité à une distance minimale de 20
correct password.
(96 × 96 × 151.6 mm)
cm entre le radiateur et votre corps.
• Make sure that your router/modem is on and that you are within
range of it.
- This Class B digital apparatus complies with Canadian ICES-003.
• Turn your device off, then back on.
- Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
• Reset your router/modem.
ONE-YEAR LIMITED WARRANTY
The app cannot find
• Make sure that your device has power and is on.
the device
• Make sure that your network is working properly.
Visit www.insigniaproducts.com for details.
• Make sure that your router/modem is on and that you are within
range of it.
CONTACT INSIGNIA:
• Make sure that the mobile phone has location setting enabled.
1-877-467-4289 (U.S. and Canada)
01-800-926-3000 (Mexico)
www.insigniaproducts.com
Note: If you try the solutions suggested above and still have
connection or operation issues, reset your speaker by pressing the
INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC
Microphone button for 12 seconds.
7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2018 Best Buy. All rights reserved. Made in China
is connected.
V3 ENGLISH 17-0799

Advertisement

loading
Need help?

Need help?

Do you have a question about the NS-CSPGASP-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Insignia NS-CSPGASP-B

  • Page 1 The display shows Pon or Poff to let you know if proximity is on or off. INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC Microphone button for 12 seconds.
  • Page 2 Nota: Si intente las soluciones sugeridas anteriormente y siga • Temperatura de ambiente máxima: 95 °F (35 °C) Chromecast para reproducir música en su altavoz. INSIGNIA es una marca comercial de Best Buy y sus compañías asociadas. Distribuida por Best Buy Purchasing, LLC, × ×...

This manual is also suitable for:

Ns-cspgasp-bcNs-cspgasp-g
