Overland Tandberg RDX QuikStor Quick Start

® ®

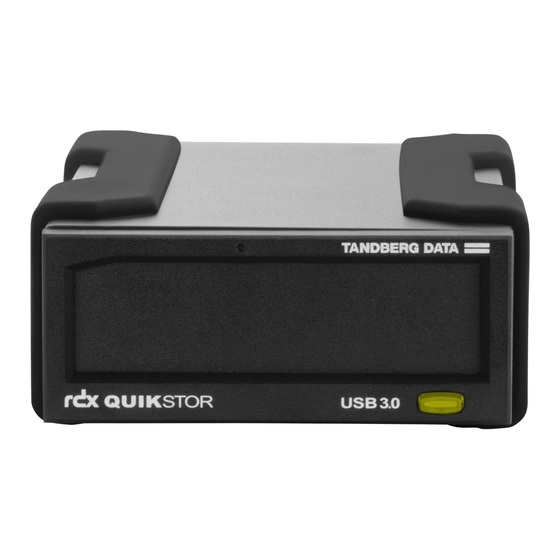

RDX QuikStor
External / Internal USB and SATA
Keyed
Corner

For More Information

Visit the support section of the Tandberg Data web site
(www.tandbergdata.com) for more information, including product
warranty and registration, knowledge base articles, user
documentation and technical support.
WHAT'S IN THE BOX?
Quick Start Guide
USB or SATA Cables
Power Adapter Cable
(Internal Only)
Write
Protect
for USB 3.0
RDX Emergency
Media Eject Pin
Mounting Screws
(Internal Only)
SATA Cable (Internal)
USB Cable (Internal)
USB Y-cable (External)
for SATA
RDX Media
(with Selected Products)

Power Ratings

The following power ratings represent typical-use performance.
DC Input Voltage &
RDX Type Power Source
Rated Input Current
Int SATA III Int Power Cable
5V/1.6A and 12V/0.003A
Int USB 3.0 Int Power Cable 5V/1.6A and 12V/0.003A
USB Cable 5V/1.6A peak (<0.9A typical)
Ext USB3+
Ext Power Supply 5-14VDC/2.4-0.9A
For RDX Warranty Registration and
Technical Support Activation visit:
http://registration.tandbergdata.com/

FCC Compliance Notice

NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
5.5mm
