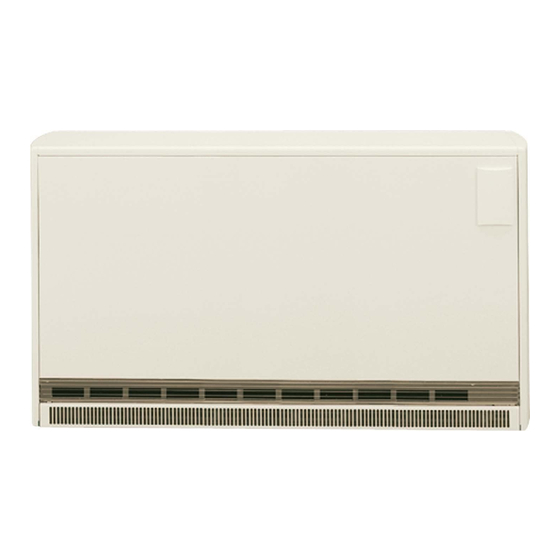

STIEBEL ELTRON ETS 300 Operation And Installation
Storage heater
Hide thumbs
Also See for ETS 300:
- Operating and installation instructions (25 pages) ,
- Operation and installation (132 pages)
Table of Contents
Advertisement
BEDIENUNG UND INSTALLATION
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
BEDIENING EN INSTALLATIE
OBSLUHA A INSTALACE
OBSŁUGA I INSTALACJA
Wärmespeicher | Storage heater | Radiateur à accumulation|
Warmteaccumulator | Akumulační kamna | Zasobniki ciepła
» ETS 200
» ETS 300
» ETS 400
» ETS 500
» ETS 600
» ETS 700 ELECTRONIC
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for STIEBEL ELTRON ETS 300
Summary of Contents for STIEBEL ELTRON ETS 300
- Page 1 OBSLUHA A INSTALACE OBSŁUGA I INSTALACJA Wärmespeicher | Storage heater | Radiateur à accumulation| Warmteaccumulator | Akumulační kamna | Zasobniki ciepła » ETS 200 » ETS 300 » ETS 400 » ETS 500 » ETS 600 » ETS 700 ELECTRONIC...
-
Page 2: Table Of Contents
CoNTENT | SPECIAL INForMATIoN SPECIAL INFORMATION 16.2 Wiring diagram ������������������������������������������������� 40 16.3 Connection diagrams ������������������������������������������ 41 OPERATION 16.4 Reducing the connected load �������������������������������� 42 General information ��������������������������������������� 25 16.5 Output matching (rated charge duration) ������������������ 42 Safety instructions ���������������������������������������������� 25 16.6 Data table ��������������������������������������������������������... -
Page 3: Operation
oPErATIoN general information - Only use a permanent connection to the power 1.1.3 Keywords supply. The appliance must be able to be sepa- KEYword Meaning rated from the power supply by an isolator that DANGER Failure to observe this information will result in serious injury or death. -
Page 4: General Safety Instructions
oPErATIoN Appliance description General safety instructions Appliance description Observe the following safety instructions and regulations. Electrically generated heat is stored with this appliance. The elec- - The electrical installation and installation of the appliance trical heat is generated when the power supply utility enables the must only be carried out by a qualified contractor or by our supply of cheaper off-peak power. -
Page 5: User Interface
oPErATIoN Cleaning, care and maintenance User interface 4.3.2 Appliances with a weather-compensated charge control system f Set the “charge control” rotary selector to stage 3. The weather-compensated charge control system ensures the correct charge level. For differentiated control of individual appliances, you can also manually match the charge volume via the charge controller. -
Page 6: Cleaning The Fluff Filter
oPErATIoN Troubleshooting Cleaning the fluff filter Note Clean the fluff filter in the air inlet grille regularly. This will ensure trouble-free discharging of the appliance. If a fluff filter is added, switch OFF the fan. f Press in the air inlet grille over the catch springs. Troubleshooting Problem Cause... -
Page 7: Installation
INSTALLATIoN Safety INSTALLATIoN Appliance description Safety Only a qualified contractor should carry out installation, commis- sioning, maintenance and repair of the appliance. General safety instructions We guarantee trouble-free function and operational reliability only if original accessories and spare parts intended for the appliance are used. -
Page 8: Standard Delivery
INSTALLATIoN Preparations Standard delivery Minimum clearances To the air outlet grille 500 mm The following are delivered with the appliance: To the r.h. side panel - Storage blocks - for flammable components 100 mm - for non-flammable components 70 mm - Information label To the l.h. -
Page 9: Adjusting The Charge Controller
INSTALLATIoN Installation 10.2.2 Reducing the charge level f Undo the screws on the inner front panel at the bottom edge. f Remove the inner front panel. Operating and fault display Jumper for output reduction has four stages. Jumper for control signal matching has four stages. Electronic charge controller Jumper X17 is located on the electronic charge controller, and NN NN NL... -
Page 10: Power Supply/Connecting Cables
INSTALLATIoN Installation 10.3 Power supply/connecting cables 10.2.4 Operation with charge control system Observe the relevant information in the charge control system instructions. Control signal The electronic charge controller can be connected to different con- trol unit control signals (ED), and can therefore also be integrated into existing systems. -
Page 11: Inserting Storage Blocks
INSTALLATIoN Installation 10.5 Inserting storage blocks WARNING Burns Broken insulation can lead to the casing overheating. f Check the thermal insulation in the appliance for transport damage. f Replace faulty thermal insulation. VII. The appliance must be completely free of foreign bodies such as parts of the packaging. -
Page 12: Cleaning The Appliance
INSTALLATIoN Installation 10.6 Cleaning the appliance 10.7 Power supply f Clean the appliance after installation and inserting the stor- 10.7.1 General information age blocks. For this, proceed as follows: WARNING Electrocution If the appliance is connected to an automatic charge con- trol system, there may be voltage at terminals A1/Z1 and A2/Z2 even if the fuses have been removed. -
Page 13: Closing The Unit
INSTALLATIoN Installation 10.7.4 Type plate Note Document the connected load and the rated charge du- ration. f Mark the relevant boxes on the type plate. f Mark the selected connection diagram in these instructions in chapter "Specification/Connection diagrams". 10.8 Closing the unit f Insert the front panel again. -
Page 14: Commissioning
INSTALLATIoN Commissioning 13. Handover 10.8.1 Affixing information labels If you install the appliance in rooms used for commercial pur- Explain the functions of the appliance to the user. Draw special poses, e.g. hotels, holiday houses or schools, you must affix the attention to the safety instructions. -
Page 15: Troubleshooting
INSTALLATIoN Troubleshooting 14. Troubleshooting 14.1 Status display of the charge controller Status Fault Green No fault The charge controller is working correctly. Fault The rotary selector for charging (R1) or the core sensor (B1) is faulty or not connected. Not charg- ing. -
Page 16: Symbols On The Type Plate
INSTALLATIoN Maintenance 14.3 Symbols on the type plate 14.2.2 Replacing a fuse Typ: ETS 700 373 kg Nr.: 074489 8252 000194 3/N/PE ~ 400V 50 HZ 5,25 5,83 6,42 7,00 6,75 7,50 8,24 9,00 1/N/PE ~ 230V 50 HZ 1,5 kW 26 W 171671 -34511 Made in Germany... -
Page 17: Specification
INSTALLATIoN Specification 16. Specification 16.1 Dimensions and connections ETS 200 ETS 300 ETS 400 ETS 500 ETS 600 ETS 700 Appliance Width 1130 1305 1480 Appliance Feet clearance 1115 1290 Entry electrical cables www.stiebel-eltron.com ETS 200-700 |... -
Page 18: Wiring Diagram
INSTALLATIoN Specification 16.2 Wiring diagram Electronic charge controller Special accessories User interface PCB (Not part of the standard delivery. Tick the boxes for each special Core sensor - charge (at 20 °C ≈ 541 Ω) accessory installed.) E1-E6 Heating element High limit safety cut-out RTI-E3 RTI-EP2... -
Page 19: Connection Diagrams
INSTALLATIoN (N ) Specification 16.3 Connection diagrams Connection diagram for single phase connection (max. 2 kW) The following four connection options are available for connecting the appliance. (N ) Connection diagram for integral room temperature controllers RTI-E3/RTI-EP2 1 1/N/PE/ ~ 230 V (N ) Connection diagram for "old-new"... -
Page 20: Reducing The Connected Load
91.6 % 83.3 % 75 % 100% Connection versions Types Types ETS 200 2.00 1.83 1.67 1.50 2.00 ETS 200 2.00 1.83 1.67 ETS 300 3.00 2.75 2.50 2.22 ETS 300 3.00 2.75 2.50 ETS 400 4.00 3.66 3.33 3.00 ETS 400 4.00 3.66... -
Page 21: Data Table
INSTALLATIoN | guArANTEE | ENVIroNMENT ANd rECYCLINg Specification 16.6 Data table ETS 200 ETS 300 ETS 400 ETS 500 ETS 600 ETS 700 074484 074485 074486 074487 074488 074489 Electrical data Connected load 2000 3000 4000 5000 6000 7000 Rated voltage... - Page 22 Deutschland Verkauf Tel. 05531 702-110 | Fax 05531 702-95108 | info-center@stiebel-eltron.de STIEBEL ELTRON GmbH & Co. KG Kundendienst Tel. 05531 702-111 | Fax 05531 702-95890 | kundendienst@stiebel-eltron.de Dr.-Stiebel-Straße 33 | 37603 Holzminden Ersatzteilverkauf Tel. 05531 702-120 | Fax 05531 702-95335 | ersatzteile@stiebel-eltron.de Tel.
