Escalade® Sports products may be manufactured and/or licensed under the following patents.
6120397, 5816957, 5769744, 5119741, 4911085, 4717157, D460140, D420563, 8414431
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.

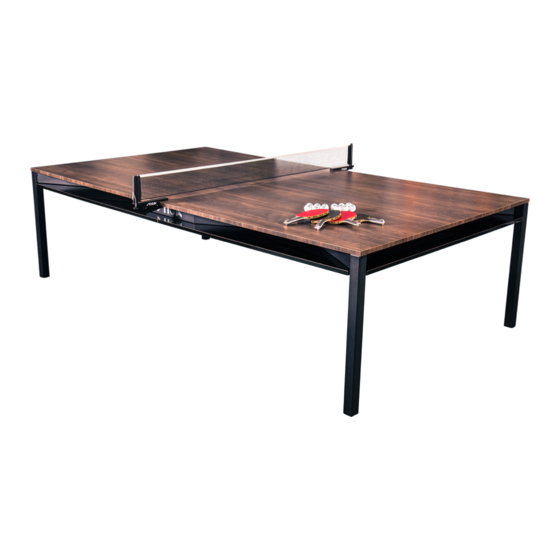

" C O N F E R E N C E "
T A B L E
T E N N I S
T A B L E
MODEL NO.
T8591B
&
T8591W
2L-4244-01
2018 Escalade Sports
Advertisement
Related Manuals for Stiga T8591B
Summary of Contents for Stiga T8591B
- Page 1 “ C O N F E R E N C E ” T A B L E T E N N I S T A B L E MODEL NO. T8591B & T8591W 2L-4244-01 Escalade® Sports products may be manufactured and/or licensed under the following patents.
-
Page 2: P R E - A S S E M B L Y T I P S
P R E - A S S E M B L Y T I P S 1. Read this manual carefully before starting assembly. Read each step completely before beginning each step. 2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons before assembling or ordering parts. - Page 3 P A R T S L I S T ( N O T A C T U A L S I Z E ) T 8 5 9 1 B / B L A C K T A B L E *If you have a black table use these part numbers for re-order TABLE FRAME (BLACK)
- Page 4 P A R T S L I S T ( N O T A C T U A L S I Z E ) T 8 5 9 1 W / W H I T E T A B L E *If you have a white table use these part numbers for re-order TABLE FRAME (WHITE)
- Page 5 H A R D W A R E I D E N T I F I E R ( A C T U A L S I Z E ) 8 10 5/16-18 X 1 1/2” BUTTON 5/16-18 X 1/2” BUTTON HEAD #12 X 2 “...
- Page 6 Keep children away from the assembly area. 1. With the help of another adult take the Table Frame #1 out of the box and set it on with the Stiga logo upside down on cardboard. Make sure Stiga logo...
-
Page 7: Tools Needed
HARDWARE NEEDED (ACTUAL SIZE) TOOLS NEEDED The following pages will have a picture of the Hardware Needed along with the Quantity, Part Number and Description. You can lay the ASSEMBLY TIP hardware on the picture to identify the hardware. 5/16-18 X 1/2” BUTTON 3/16”... - Page 8 TOOLS NEEDED HARDWARE NEEDED (ACTUAL SIZE) 8 10 5/16-18 X 1 1/2” BUTTON 1/2” 3/16” 5/16”-18 LOCK NUT HEAD CAP SCREW 2B-6009M02 1B-4166M00 (QTY.4) DETAIL A (QTY. 8) 4. Attach Leg Brace assemblies with #7 Screw & #10 Nut as shown in Detail A & Detail B. 8 1 0 DETAIL B End with Roller...
- Page 9 THE FOLLOWING STEP REQUIRES 2 CAPABLE ADULTS. 5. With the help of another adult set the Bottom Boards #3 on the Frame assembly as shown in Detail A. Make sure the countersunk holes face up! Center the bottom boards side to side and end to end.
- Page 10 TOOLS NEEDED HARDWARE NEEDED (ACTUAL SIZE) NOTE: When installing screws #9 the screw will first drill a hole in the metal tube and then screw in. Start at high RPM to drill the #12 X 2 “ FLAT HEAD SELF hole and apply pressure downward.
- Page 11 7. With at least 6 capable adults set the table on its side as shown in Detail A. TURNING THE TABLE OVER REQUIRES AT LEAST SIX CAPABLE ADULTS. TABLE MUST BE COMPLETELY PICKED UP OFF 8. With at least 6 capable adults pick the table THE FLOOR, NEVER ROLL ONTO JUST up completely and set it on its legs as shown TWO LEGS THIS WILL BEND THE LEGS!
- Page 12 THE FOLLOWING STEPS REQUIRE TWO CAPABLE ADULTS. 9. With at least two capable adults lift the table top #2 and position it about 11 inches from the center of the table, then lower the top making sure Rollers #12 drop into the opening in the Tracks.
-
Page 13: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY This consumer warranty extends to the original consumer purchase of any ESCALADE ® SPORTS Product (hereinafter referred as the "Product"). WARRANTY DURATION: This Product is warranted to the original consumer purchase of a period of one (1) year from the original purchase.
