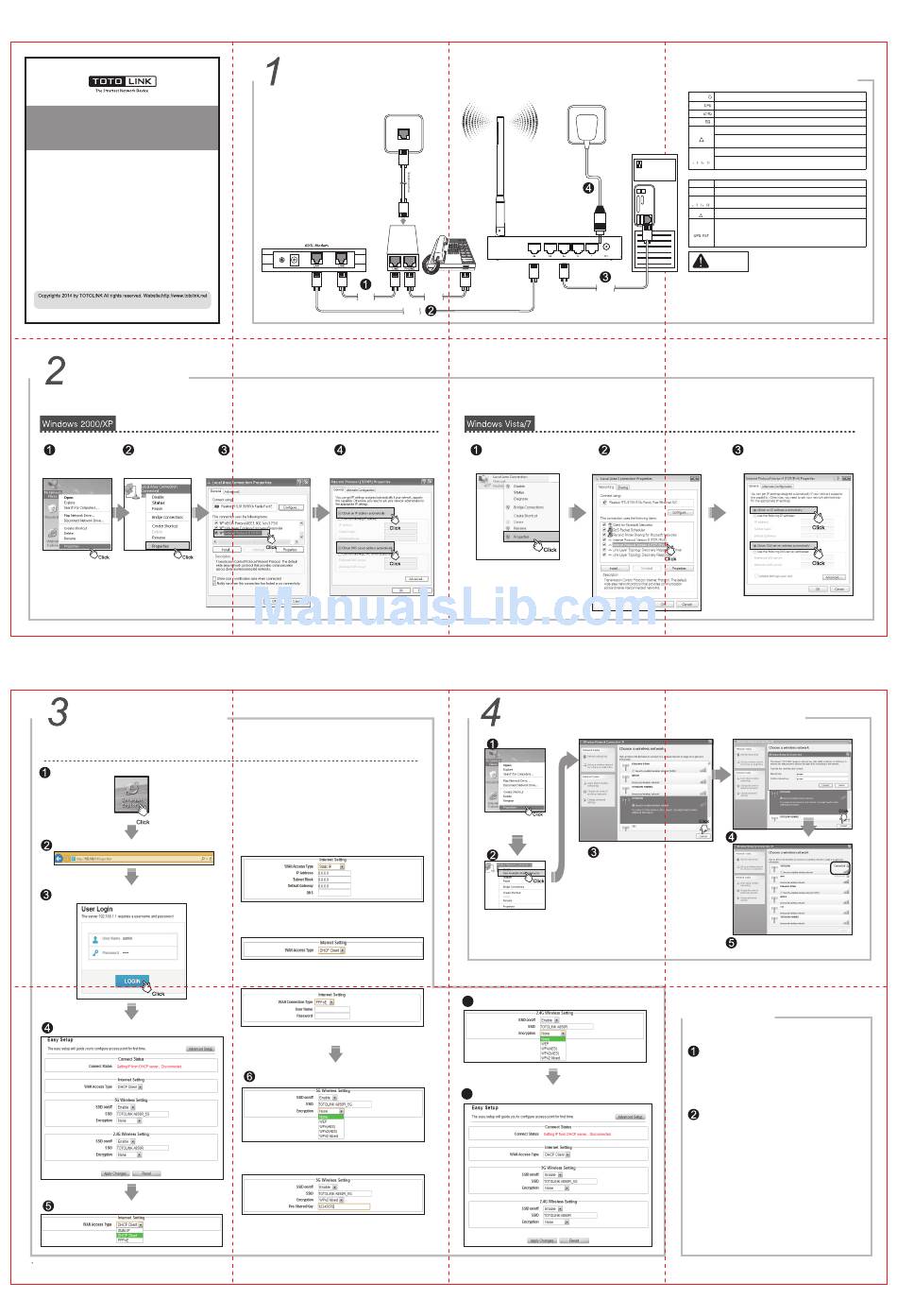

Toto Link A850R Quick Installation Manual

Quick Installation Guide
Wireless-N Broadband Router
Suitable for: A850R
V.14.08
Information in this document is subject to change without prior notice.

Set Up PC

For Windows 2000 or Windows XP Operating System, please comply with following steps to set up.
Right-click "My Network Right-click "Local Area
Places", click "Properties" Connection", click "Properties"

Set Up Router

Please set up the router following below steps.
Run the Web browser.
Type http://192.168.1.1 in the web browser, then press Enter.
Input the User Name and Password, then click Login button
(The default Username and Password is admin).
Now you have logged in the Easy Setup interface.
You can change WAN Access Type directly.
For more information, please go to www.totolink.net

Hardware Installation

Telephone
Wire
Double-click "Internet Protocol Choose "Obtain an IP address
(TCP/IP)" automatically" and "Obtain DNS
server address automatically",
click "OK"; go back to previous
interface and click "OK"
This part allows you to configure the WAN port parameters so that your
computer can access Internet.
Static IP: If your ISP has provided the fixed IP that allows you to access
Internet, please choose this option.
DHCP Client: Dynamic Host Configuration Protocol (DHCP) is a local area
network protocol. If you choose this mode, you will get a dynamic IP address
from your ISP automatically.
PPPoE: Point-to-Point Protocol over Ethernet (PPPoE) is a virtual private
and secure connection between two systems that enables encapsulated data
transport. Select PPPoE option if ISP provides a PPPoE connection.
(1)Choose Static IP
Input the IP Address、Subnet Mask and DNS as your ISP provides.
(2)Choose DHCP Client
(3)Choose PPPoE
Input the User Name and Password as your ISP provides.
You can change wireless state, wireless SSID and encryption conveniently
as well.
Here we take the encryption of WPA2 Mixed for example to setup the router.
If you access Internet by ADSL, please comply with step 1, 2, 3 and 4 in below diagram in correct order; if you access Internet by
residential broadband, please comply with step 2, 3 and 4 to connect the WAN port of your router with the residential broadband directly.
Router
Telephone
Wire
Network
Cable
For Windows Vista or Windows 7 Operating System, please comply with following steps to set up.
Click "Start— Control Panel— Network
and Internet— Network Connection",
right-click "Local Area Connection",
and choose "Properties".

Wireless Network Connection

Right-click "My Network
Places", click "Properties"
Right-click "Wireless Network
Connection", and click "View
Available Wireless Networks"
7
You can setup the 2.4G Wireless Setting referring to 5G Wireless Setting.
8 If you have finished your settings, please click Apply Changes to save them.
Otherwise, you can reset the router to default settings just by clicking Reset.

LED Indicators

POWER This indicator lights blue when the router powered on, otherwise it is off.
CPU When the router powered on, this indicator keeps lighting blue.
This indicator lights blue when the 2.4G wireless connection enabled.
2.4G
5G This indicator lights blue when the 5G wireless connection enabled.
When the WAN port is connected successfully the indicator lights blue.
WAN
While transmitting or receiving data through the WAN port the indicator
blinks blue.
When the LAN port has a successful connection, the indicator lights blue.
1/2/3/4LAN
While transmitting or receiving data through the LAN port the indicator
blinks blue.

Ports Description

This socket is used to connect the power adapter.
DC IN
ON/OFF This slide switch is used to power on or off the wireless router.
1/2/3/4 LAN
This port is used to connect the router to local PC.
WAN
This port is used to connect the router to the Internet.
There is a RST-WPS button on the rear panel. Press the utton for more
than 5 seconds, the router will restore factory settings. If press the
WPS/RST
button less than 5 seconds, the router will establish Wi-Fi protected
settings automatically.
NOTE:
1. Please disconnect the power adapter and all cables during
thunderstorm weather;
Network
2. Keep away from heat source and keep well ventilated;
Cable
3. Please pay attention to the waterproofing and moisture-proof
when storing, transporting and running.
4. The power supply must reach the rated current and power.
5. Put the router in flat places.
Double-click "Internet Protocol Choose "Obtain an IP address automatically"
Version 4 (TCP/IPv4)" and "Obtain DNS server address automatically",
click "OK"; go back to previous interface and
click "OK"
Input the encrytion key and click "Connect"
Confirm the wireless network SSID name,
choose one that you would like to connect,
then click "Connect"
Have connected wireless network, you can access
Internet through wireless mode.
5

FAQ

How to reset the router to default settings?
1. Please make sure your router's power is on regularly, then press the
RST-WPS button for about 10s.
2. Loosen the button until your router's LED lights all flashing, then you
have reset your router to default settings.
Forget the password?
Please reset your router to default settings firstly, and set a new password.
The default Username and Password is admin.
The default IP is 192.168.1.1.
