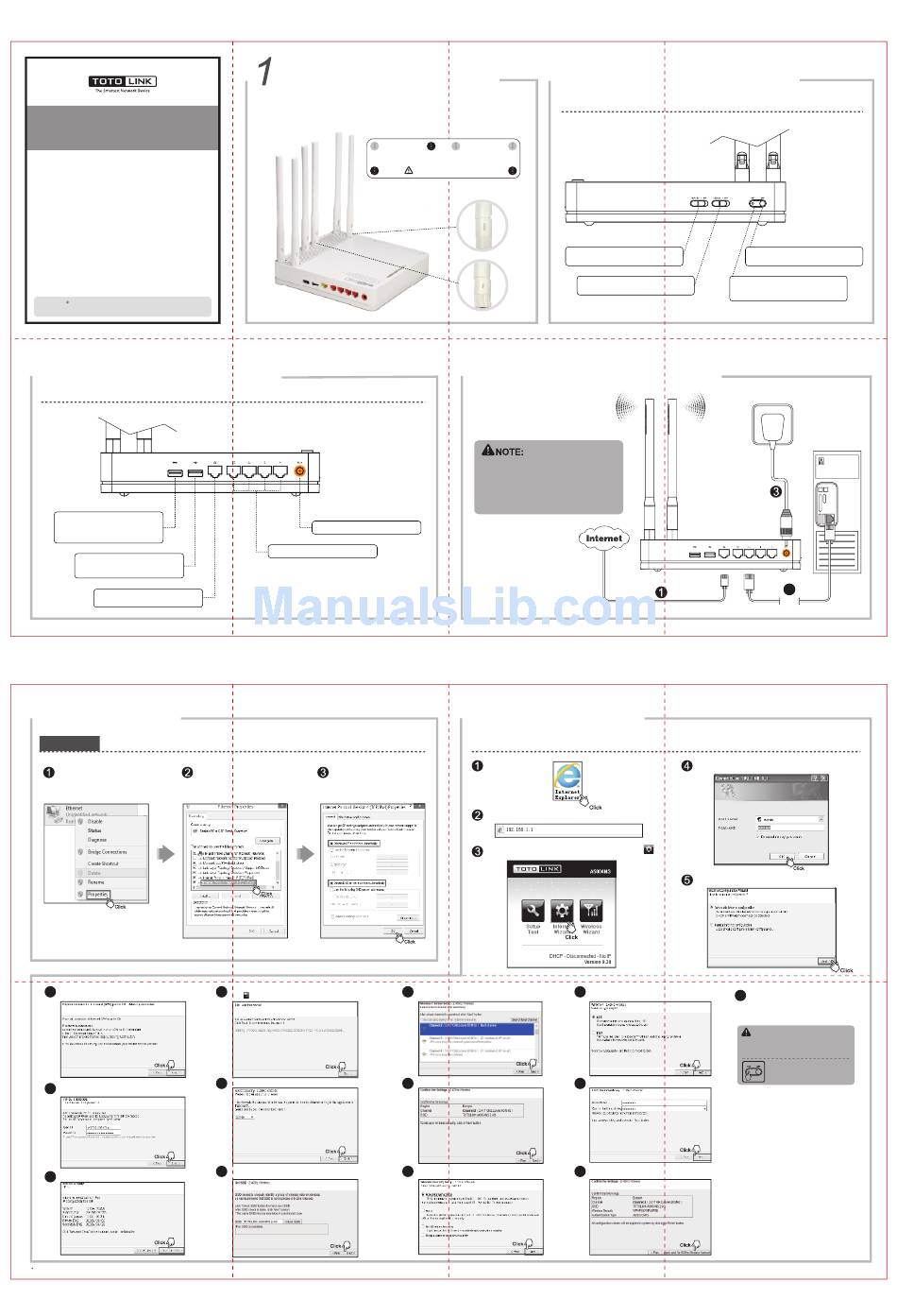

Toto Link A6004NS Quick Installation Manual

Quick Installation Guide
AC1900 Wireless Dual Band Gigabit NAS Router
Suitable for: A6004NS
V1.15.11
Copyrights TOTOLINK All rights reserved. Website: http://www.totolink.net
Information in this document is subject to change without prior notice.
2

Product Appearance

2.2 Rear Side
USB 3.0 Port:
Disabled by default.
Supports FTP Service, Samba Service,
Torrent, URL Service, Media Server and
USB Tethering.
USB 2.0 Port: Enabled by default,
Supports FTP Server, Samba Server and
URL Server.
WAN Port:
Connect to DSL Modem to
access the Internet.
4

Set Up PC

Windows 8
For Windows 8 Operating System, please comply with following steps to set up.
Click "Start—Control Panel—Network and Double-click "Internet Protocol Version 4
Sharing Center—Change adapter setting", (TCP/IPv4)".
right-click "Ethernet (for WIN7 or Vista,
right-click"Local Area Connection")", and
choose "Properties".
6
The router will detect whether the physical connection
of internet (WAN) port is OK. Click Next.
7
Wait for a while, PPPoE is detected, type in your User
ID and Password.Then click Next.
8
Click Save and Close to make settings work.
For more information, please go to www.totolink.net

Antennas Installation

After you open the package, please install the six antennas into the router first. Check carefully the
silk-screen on the bottom of each antenna. Install 2.4GHz to 2.4GHz, 5GHz to 5GHz. Wrong antenna
installation will affect your wireless signal. Below picture shows you the router's interface distribution.
DC In:
Plug power adapter for power in.
LAN 1~4:
Connect to PC or Laptop.
Choose "Obtain an IP address
automatically"and "Obtain DNS server
address automatically", click "OK";
and then click "OK".
9
After Internet wizard, please click the Wireless Wizard
icon to start wireless settings. Click Next.
10
Choose your country region and click Next.
Click Check SSID to avoid SSID conflict, then
11
click Next when it shows "This SSID is available."
2
2.1 Front Side
NOTE: All the six antennas included have been marked with 2.4GHz or 5GHz,
please install them to the router correctly according to the interface symbol
printed on this label.
WiFi On/Off slide switch:
Control your wireless network conveniently.
3

Hardware Connection

1. Please disconnect the power adapter and all cables
during thunderstorm weather;
2. Keep away from heat source and keep well ventilated;
3. Please pay attention to the waterproofing and moisture
-proof when storing, transporting and running;
4. The power supply must reach the rated current and
power;
5. Put the router in flat places.
5

Set Up Router

Please set up the router following below steps.
Run the Web browser.
Type 192.168.1.1 in the Web Browser address bar, then press Enter key.
It will show up the following page, please click Internet Wizard icon .
12
Choose the best channel, and click Next.
13
Click Next to go on the settings.
14 Setup the encryption for your WiFi network,
keep the default option.Click Next.
Product Appearance
LED On/Off slide switch: RST:
the device will be restored to factory defaut
Enable or disable LED indicators.
settings.
Router
Enter valid User Name and Password (The default User name and
Password are "admin"). Then click "OK" button or press Enter.
Two options provided, "Automatic Internet configuration" is
recommended, click Next.
Select TKIP or AES cryptography, and then
15
18
click Next.
Please keep your Wireless Network Key in
mind or write it down in case you forget it and
can't connect to the Wi-Fi.
16
Input the password (more than 8 characters).
Click "Apply and Set 5GHz Wireless Network"
17
button to confirm the settings.
WPS:
Press WPS button, easy secured
connection can be built easily.
Press RST button for about 5 seconds
Wall Socket
Computer
2
Network
Cable
5GHz wireless network wizard is similar with
the settings of 2.4GHz, please refer to the
process of 2.4GHz wireless settings.
NOTE:
If you forget your WiFi password, please
press RST button to reset the device to
factory default setting and re-configure
the wireless parameters.
