Resolv 40a Layout

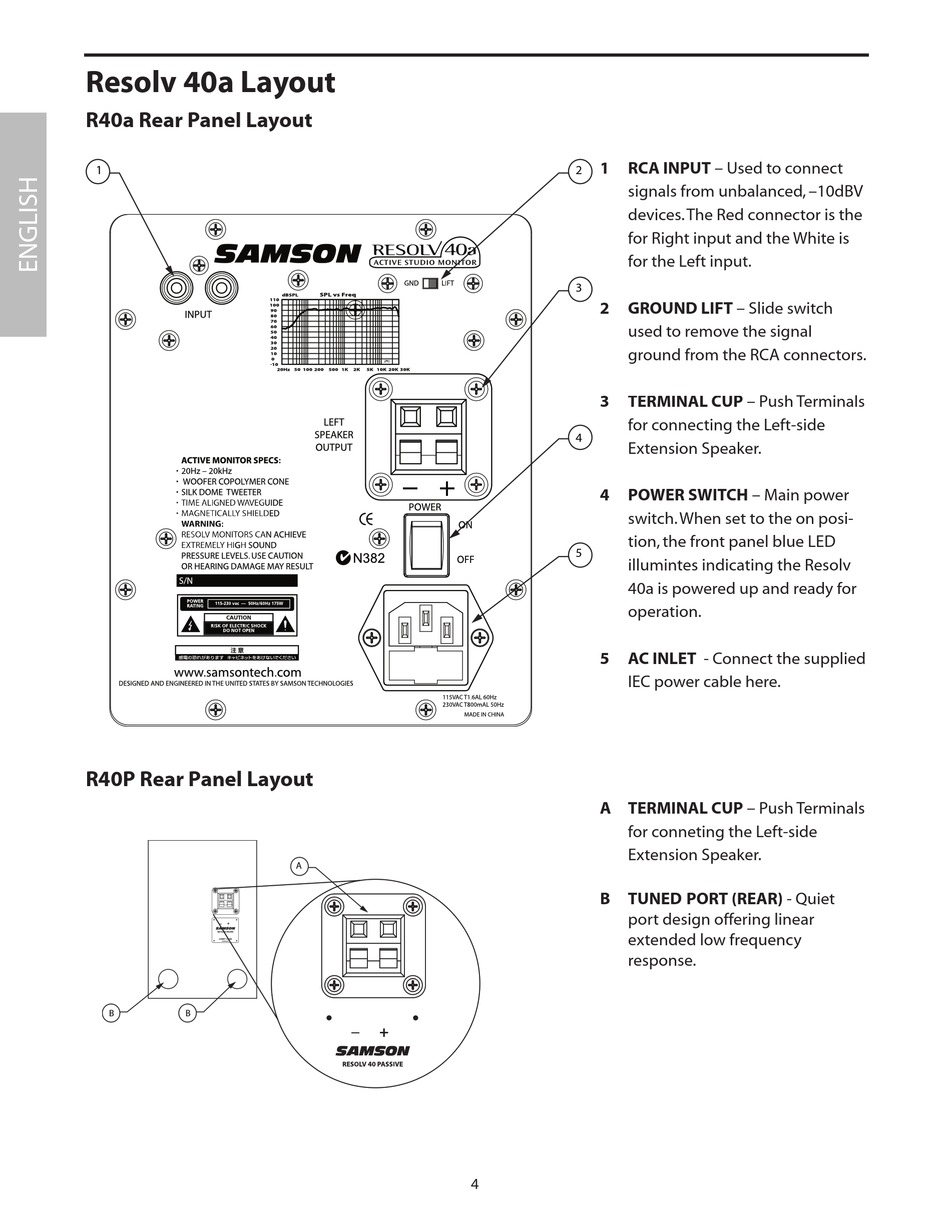

R40a Rear Panel Layout

�
R40P Rear Panel Layout
� �
�
4
1 RCA INPUT – Used to connect
�
signals from unbalanced, –10dBV
devices.The Red connector is the
for Right input and the White is
for the Left input.
�
2 GROUND LIFT – Slide switch
used to remove the signal
ground from the RCA connectors.
3 TERMINAL CUP – Push Terminals
for connecting the Left-side
�
Extension Speaker.
4 POWER SWITCH – Main power
switch. When set to the on posi-
tion, the front panel blue LED
�
illumintes indicating the Resolv
40a is powered up and ready for
operation.
5 AC INLET - Connect the supplied
IEC power cable here.
A TERMINAL CUP – Push Terminals
for conneting the Left-side
Extension Speaker.
B TUNED PORT (REAR) - Quiet
port design offering linear
extended low frequency
response.
