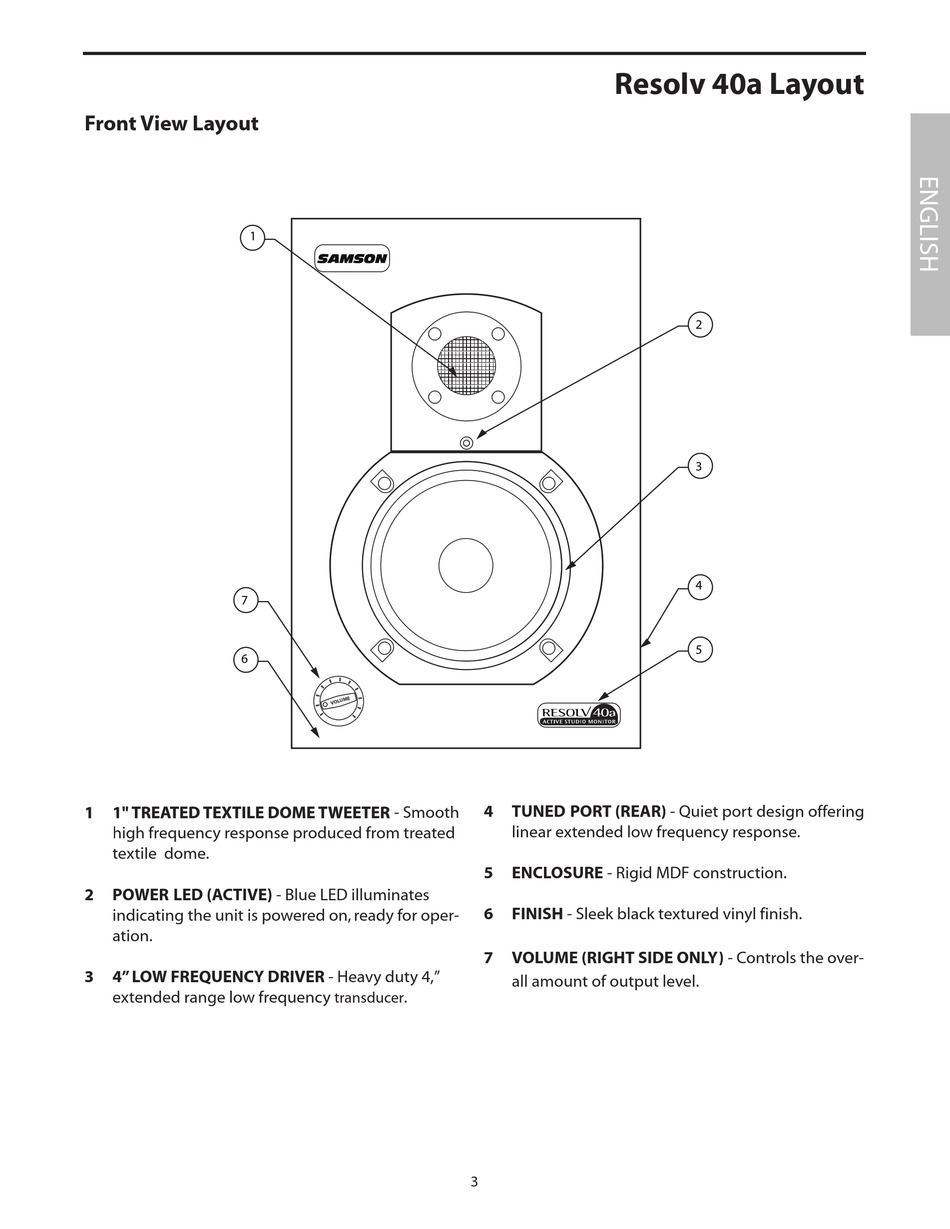

Front View Layout

�
�
�
1 1" TREATED TEXTILE DOME TWEETER
high frequency response produced from treated
textile dome.
2 POWER LED (ACTIVE) - Blue LED illuminates
indicating the unit is powered on, ready for oper-
ation.
3 4" LOW FREQUENCY DRIVER - Heavy duty 4,"
extended range low frequency
4 TUNED PORT (REAR) - Quiet port design offering
- Smooth
linear extended low frequency response.
5 ENCLOSURE - Rigid MDF construction.
6 FINISH - Sleek black textured vinyl finish.
7 VOLUME (RIGHT SIDE ONLY) - Controls the over-
all amount of output level.
transducer .
3

Resolv 40a Layout

�
�
�
�
