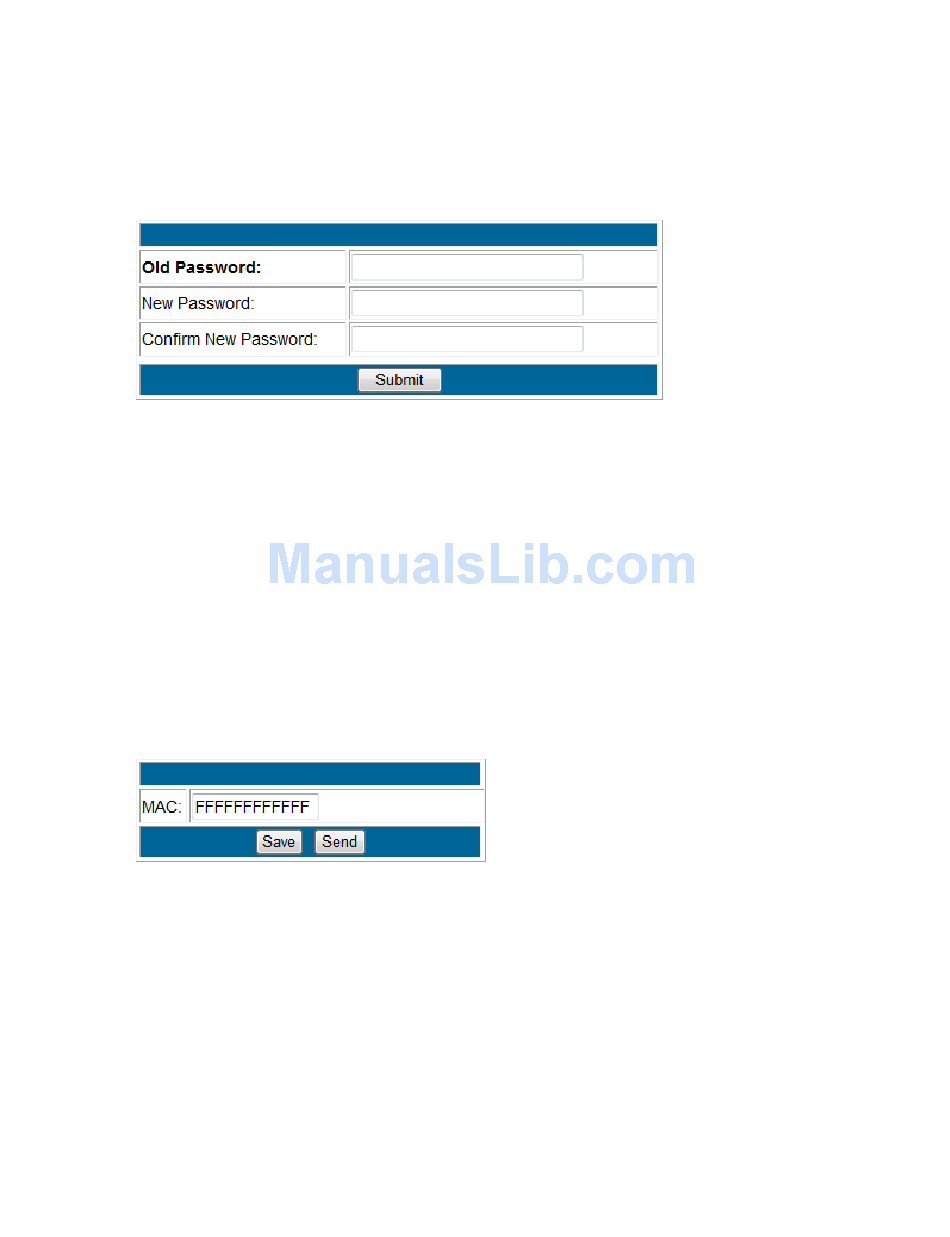

Change Password

The change password function, will allow the user to change the current
password of the device.
Changing the password of the device:
1.) Type in the old password for the device
2.) Then type in the new password maximum of 8 characters
3.) Repeat the new password again
4.) Then hit the submit button.
The login required option allows the user to choose whether they would like to
disable login capabilities for the device.

Wake on Lan

The network wake up function allows the 9255Pro to wake up computers,
servers or systems that have a " wake on lan " capability. This functionality is
not available on all PC's and requires the motherboard or Ethernet card to have
Wake on Lan support for this functionality to work correctly.
Simply just type in the Mac address of the system that you would like to start up
and hit the send button and the device will be activated.
