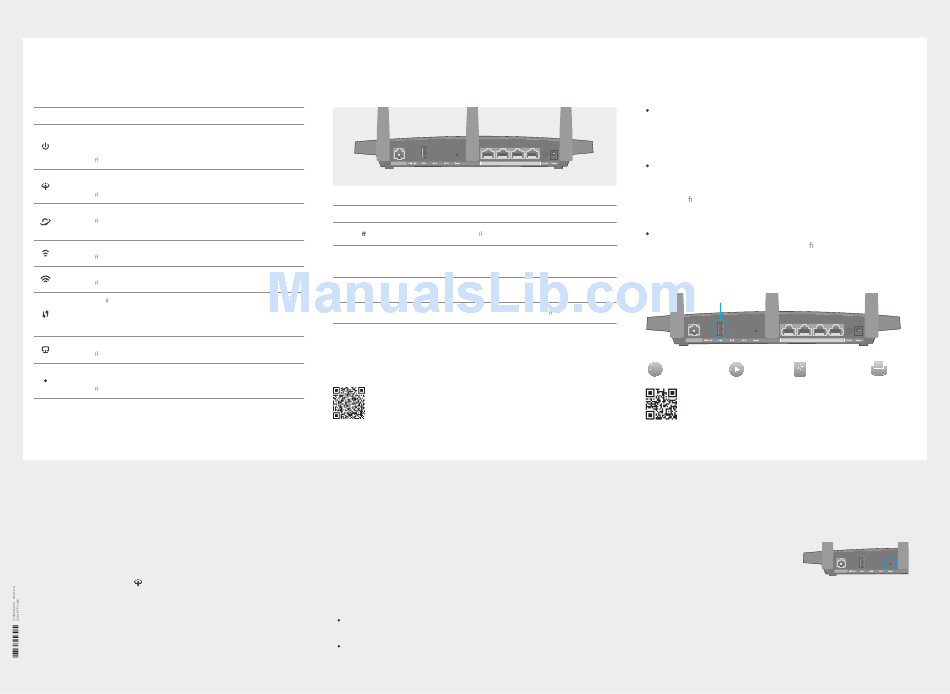

LED Indicators

LED Status Indication
On System initialization complete.
Flashing System initializing or firmware upgrading is in process.
Power
Do not disconnect or power off the modem router.
O Power is off.
On DSL synchronization established.
DSL Flashing DSL synchronization is in progress.
O DSL synchronization failed.
On Internet connection is available.
Internet O No Internet connection or the modem router is operating in
Bridge mode.
On The 2.4GHz wireless radio band is enabled.
Wireless
2.4GHz O The 2.4GHz wireless radio band is disabled.
On The 5GHz wireless radio band is enabled.
Wireless
5GHz
O The 5GHz wireless radio band is disabled.
On/O Turns On when a WPS synchronization is established and
automatically turns Off about five minutes later.
WPS
Slow Flashing A wireless device is trying to connect to the network via WPS.
This process may take up to 2 minutes.
On The corresponding LAN port is connected.
LAN
O The corresponding LAN port is not connected.
On The inserted USB device is identified and ready to use.
USB Flashing A new USB device is being identified.
O No USB device is plugged into the USB port.
Note: The USB LED is on the rear panel of the router, near the USB port.
FAQ (Frequently Asked Questions)
Q1. What can I do if the login page does not appear?
A1. If the computer is set to a static or fixed IP address, change it to obtain an IP address
automatically from the modem router.
http://tplinkmodem.net
A2. Verify is correctly entered in the web browser and press
Enter.
A3. Use another web browser and try again.
A4. Reboot your modem router and try again.
A5. Disable and enable the active network adapter.
Q2. What can I do if the DSL LED does not turn solid on?
A1. Check your cables and make sure they are all plugged in correctly, including the
telephone lines and power adapter.
A2. Restore your modem router to its factory default settings.
A3. Remove the DSL splitter, directly connect the modem router to the phone jack and
follow this Quick Installation to reconfigure the modem router.
A4. Contact your ISP to verify if the DSL line is in good status.
A5. If you have tried all the suggestions above and the problem still exists, contact our
Technical Support.
Button Legend
DSL LAN1 LAN2
Button Indication
On/O Press to power on or o the modem router.
Reset Press and hold down for 8 seconds to reset the modem router into
factory default settings.
WPS Press to start a WPS synchronization.
Wi-Fi
Press to turn both 2.4GHz and 5GHz Wi-Fi on or o .
Tether App
To manage your network conveniently on your mobile device, scan the QR
code to download the Tether App.
Q3. What can I do if I cannot access the Internet?
A1. Make sure the telephone and Ethernet cables are plugged in correctly.
A2. Try to log into the web management page of the modem router using the default address at
http://tplinkmodem.net
. If you can, try the following answers. If you cannot, change your
computer to obtain an IP address automatically from the modem router.
A3. Consult your ISP and make sure all the VPI/VCI (or VLAN ID), Connection Type, account
username and password are correct. If they are not, please replace them with the correct
settings and try again.
A4. Restore the modem router to its factory default settings and reconfigure the modem router
by following the instructions in this Quick Installation Guide.
A5. Please contact our Technical Support if the problem still exists.
Q4. What can I do if I forget my password?
Web management page password:
Restore the modem router to its factory default settings and then set a new password using
1-15 characters.
Wireless Network password:
A1. The default Wireless Password/PIN is printed on the product label of the modem router.
Features
Ethernet WAN Connection
Connect an Ethernet cable (RJ45) from your fiber or cable modem to the
LAN4/WAN port of the modem router to use it as a wireless router. Refer to the
User Guide for wireless router configuration.
3G/4G Connectivity
LAN3 LAN4/WAN
Connect a 3G/4G USB mobile broadband modem to the router's USB port to
get wireless Internet access through 3G/4G mobile networks. The USB dongle
can be con gured as the primary Internet connection, or as a backup to
enhance network reliability. Refer to the User Guide for instructions.
USB Features
The USB port can also be used to share a printer, les and media from the USB
storage device over your home network locally, or remotely through the Internet
using its built-in FTP server capability.
DSL
Remote Access
via FTP Server
To learn more about the USB features, visit
http://tp-link.com/app/usb or scan the QR code.
A2. If the default wireless password has been changed, log into the modem router's web
management page and go to
Q5. How do I restore the modem router to its factory default settings?
A1. With the modem router powered on, press
and hold down the
panel of the modem router for 8 seconds until
all LEDs turn on momentarily, then release the
button.
A2. Log in to the Web management page of the modem router, and go to
System Tools > Backup & Restore, click Factory Restore
process is complete.
USB Port
LAN1 LAN2 LAN3 LAN4/WAN
Media Local Storage
Sharing Sharing
Basic > Wireless
to retrieve or reset your password.
Reset
button on the rear
DSL
Reset Button Press & Hold for 8 seconds
Advanced >
and wait until the reset
Printer
Sharing
