TP-Link Archer VR400 Quick Installation Manual

Quick Installation Guide

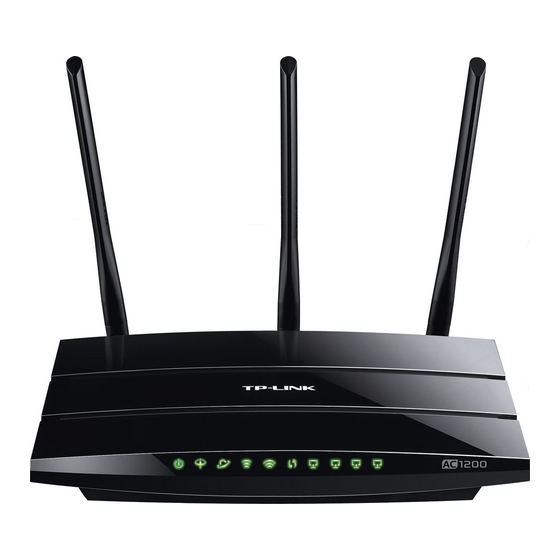

AC1200 Wireless VDSL/ADSL
Modem Router
VR400
2.Configure the Modem Router
Before You Start
1. You'll usually need an internet service username and password,
given to you by your internet service provider (ISP) when you first
signed up with them. If you are unsure, please check with your ISP.
2. Find the SSID (network name) and Wireless Password printed on
the product label at the bottom of the modem router.
1.Connect the Hardware
Phone Jack
Phone Cable
1
DSL Splitter Modem Router
2
PHONE MODEM
Phone Cable
If you don't need the phone service, just directly
connect the modem router to the phone jack
with the provided phone cable, then follow steps
3 and 4 to complete the hardware connection.
Phone (Optional)
Method 1: Via Web Browser
1. Connect your device to the router using an Ethernet cable or wirelessly.
SSID (network name) and Wireless Password are on the product label at the bottom of the
modem router.
Ethernet Cable
2. Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1.
Create a password and get started.
Note: If the login page does not appear, please refer to FAQ > Q1.
http://tplinkmodem.net
New Password
Low Middle High
Confirm Password
Let's Get Started
3. Follow the step-by-step instructions to set up an internet connection
and register the TP-Link Cloud service.
Now you can enjoy your internet.
Power Adapter
4
Verify that the following LEDs turn
stable before continuing with the
configuration.
3
Push in to turn on the
Power On
modem router.
Note: The DSL LED takes about 1 to 2
minutes to stabilize.
Method 2: Via TP-Link Tether App
1. Download the TP-Link Tether app.
or
Scan to download
2. Connect your smartphone to the router.
SSID (network name) and Wireless Password are on the product label at the
bottom of the modem router.
3. Launch the Tether app and select Archer VR400.
Device
Local Device
Archer VR400
50-C7-BF-02-EA-DC
4. Follow the steps to connect to the internet and register the
TP-Link Cloud service.
Now you can enjoy your internet.
DSL On
