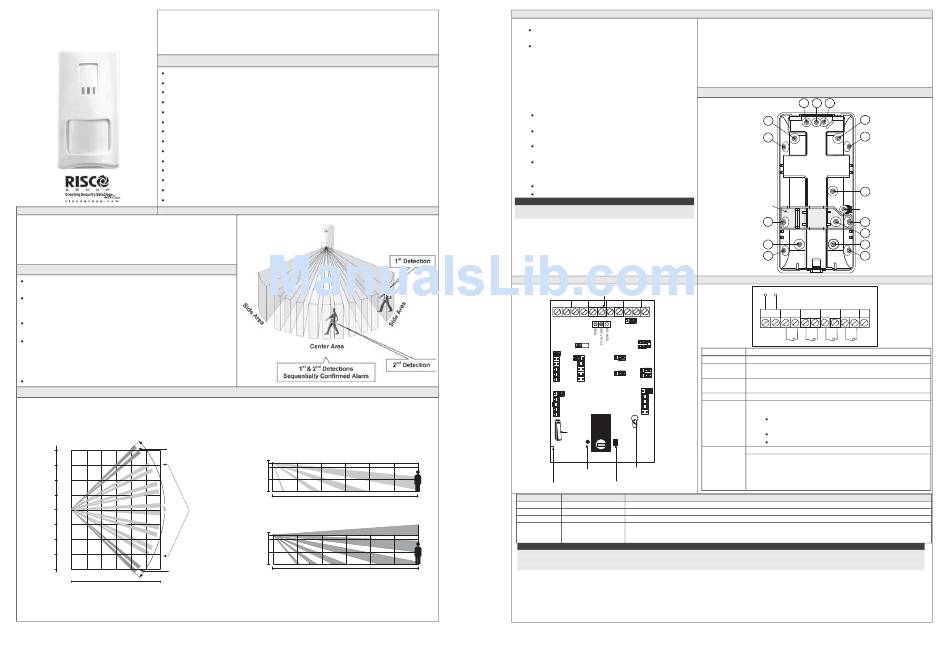

The iWISE QUADSEQ Grade 3 is designed to meet DD243 requirements for sequential
confirmation and also meet PD6662, EN 50131-1 and EN50131-2-2 Grade 3 requirements.
Installation Instructions
The iWISE QUADSEQ Grade 3 includes built - in Triple EOL resistors for installation
simplicity, and active IR anti-masking for reliable detection of masking attempts.

iWISE QUADSEQ Grade 3 Main Features

PD6662, EN50131-1, EN50131-2-2 Grade 3
Two PIR Detectors in a single housing with separate alarm outputs
Two non-overlapping coverage patterns
Coverage 12m
Active IR Anti-Mask (up to 15cm)
Built-in Triple EOL resistors, jumper selectable
Wall and Cover tampers
Opto - relays for low current consumption and long life time
Remote and Local Self Test
LED control input
LED control polarity Jumpers
3 LEDs for easy walk test
True Temperature Compensation
Wall tamper proof swivel (optional)

Principle of Operation

3D Image of the Application
The unit contains two independent detectors in a single housing. When
mounted in the corner of a room, one detector covers the two walls
(side area), while the second detector covers the center of the room.
When an intruder enters the room via a door or window, the side area
triggers. When the intruder then moves to the center of the room, the
second detector triggers, providing a sequentially confirmed alarm.

Installation Considerations

Before installing, study the space to be protected carefully in order to
choose the exact location of the unit for the best possible coverage.
Corner installation is recommended. The detection side areas
(which are two curtain zones at 80° to each other), should cover the
room walls, and therefore any vulnerable doors and windows.
The additional internal PIR detector covers the center area of the
room. Recommended mounting height is 2.4m.
Avoid installations where rotating machines (e.g. fans) are normally
in operation within the coverage pattern. Do not mount the detector
in direct sunlight or near any heat sources. Point the unit away from
glass exposed to the outdoors and objects that may change
temperature rapidly.
The installation surface should be solid, smooth and vibration free.

Coverage

Top View
Side Area
8
6
4
2
0m Center Area
2
4
6
8
Side Area
0m 2 4 6 8 10 12m
Side View - Center Area
2.4m
2
0m
0m 2 4 6 8 10
Side View - Side Area
2.4m
2
0m
0m 2 4 6 8 10
Page 1

Installation

1. To open the front cover:
Turn the front cover locking screw counter-
clockwise.
Insert a screwdriver through the dedicated slot/s to
open the detector's front cover.
2. Loosen the PCB holding screw, located on the right
hand side of the PCB and slide the PCB down until the
screw reaches the widened opening. Lift the PCB up to
remove.
3. Mounting - iWISE QUADSEQ Grade 3 can be mounted
either on a flat surface or on a wall corner (corner
mounting).
Using a suitable tool, open the following
knockouts on the detector's base.
A1, A2 and A3: External cables knockouts (open
out at least one wiring knockout)
A4, A6, A9, A12, and A15: Wall mounting
knockouts
When using a swivel adapter use the A4, A6, and
A15 openings to connect the detector to the
swivel adapter.
A5 and A10: Right corner mounting knockouts
A11 and, A14: Left corner mounting knockouts
Note:
The A7, A8 AND A13 knockouts are not to be used in this
configuration.
4. Use the base as a template for marking the installation
holes (mark through the mounting holes).
5. Put the base in a safe place, drill the required holes in
the surface or in the corner, and insert anchors (if
necessary).
6. Insert external cables through the cable hole/holes.
7. Mount the rear cover in its final location.
PCB View
ALARM ALARM
+ 12 -
SIDE CENTER
LEDS
TAMPER
OFF
(upper) EOL ON
ALARM
NONE
SIDE
1K
2.2K
4.7K
5.6K
6.8K
TAMPER EOL
1K
2.2K
4.7K
5.6K
6.8K
Tamper
Switch
LONG
Active IR
Anti-Mask Transmitter
Range Scale
Mark
LED State
12m
Yellow On
Green On
Red Flashing
Flashing
All LEDs (One after another)
Notes:
* To enable LED indications, the LED jumper has to be in ON position and no signal is attached to the LED terminal.
** When an activation signal (see LED Activation jumper for settings) is applied to the LED input of the terminal block, LEDs will be disabled.
*** AM indication continues until masking is removed, and during power up AM calibration.
12m
8. Seal the remaining holes with a sealant compound.
9. Reinstall the PCB into its desired position.
10. Wire terminal (see Terminal Wiring section)
11. Set jumpers (see Jumper Settings section).
12. Install the front cover back to its place (in a reverse sequence of the
removal).
13. Reapply electrical power to the detector for correct AM calibration.
Recalibrate after every successive removal of cover.
14. Perform a Walk test (see Walk Test section).

Back Plate Knockouts

A15
A14
Back tamper
"Breakable" plate
A13
A12
A11

Terminal Wiring/Outputs Activation

Terminal
12VDC
Block
TAMPER FAULT/AM LED
+
LEDS
CONF
INT EXT
LED
INPUT
12V 0V
Terminal Description
SENSITIVITY
- 12 + 12VDC Input
HIGH LOW
AM E.O.L
ALARM Normally closed output
SHORT
SELF TEST
SIDE
12K
LOC REM
ALARM Normally closed output
ALARM CENTER
CENTER
1K
2.2K TAMPER Normally closed output
4.7K
FAULT/AM Normally closed output
5.6K
The FAULT/AM output opens in the following events:
6.8K
LED See LED INPUT jumper for settings
When an activation signal is applied to the LED input of the
terminal block, LEDs will be disabled (see also Self Test in
Range
Jumper Settings table).
Adjustment
LEDs are enabled if nothing is connected (unless LED jumper
Screw
Active IR
is OFF).
Anti-Mask Receiver
Description
Center Area PIR detection
Side Area PIR detection
Fault / Anti Masking detection ***
At Power - up, the LEDs will blink continuously, one after the other, until the end of the warm-up period (2-3 minutes).
At the end of power-up period the RED LED will continue to flash until the end of AM calibration.
Important: Always close the front cover prior to applying power, for correct AM calibration.
Page 2
A1 A2 A3
A4
A5
A6
Range
Adjustment
Bolt Thread
A7
A8
A9
A10
ALARM ALARM
- TAMPER FAULT/AM LED
SIDE CENTER
Detector is masked (Alarm Side and Alarm Center
also open in this case)
Self test failed
Input voltage is low (6VDC - 8VDC)
