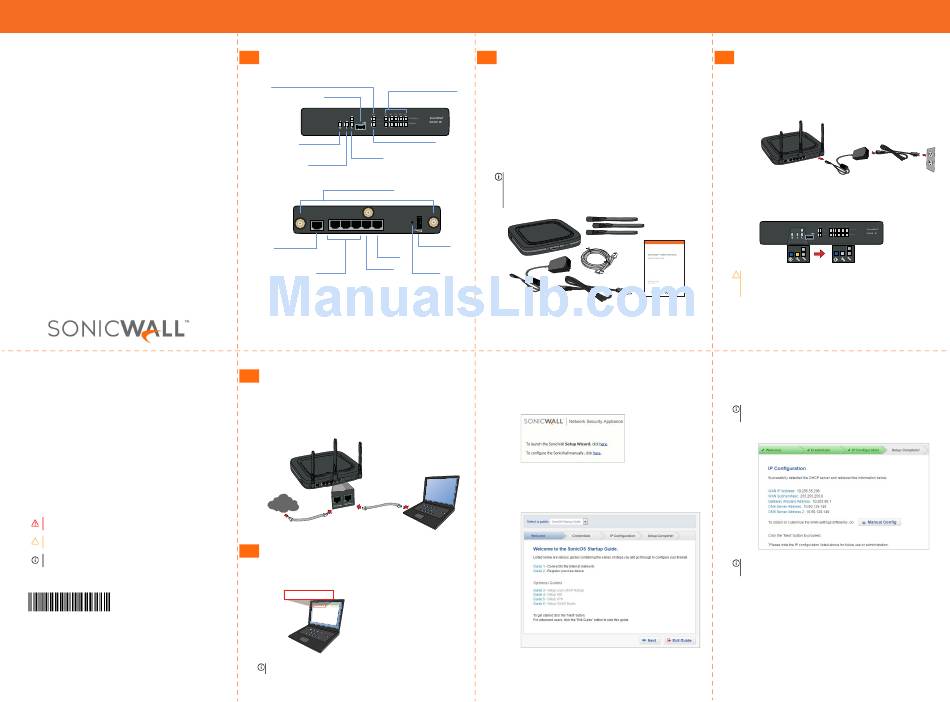

SonicWALL SOHO Wireless Quick Start Manual

SonicWall™ SOHO Wireless
Quick Start Guide
Regulatory Model Number:
APL41‐0BA SOHO W
Copyright 2017 SonicWall Inc. ALL RIGHTS RESERVED.
SonicWall is a trademark or registered trademark of SonicWall Inc. and/or its affiliates in
the U.S.A. and/or other. All other trademarks and registered trademarks are property of
their respective owners.countries
The information in this document is provided in connection with SonicWall Inc. and/or its
affiliates' products. No license, express or implied, by estoppel or otherwise, to any
intellectual property right is granted by this document or in connection with the sale of
SonicWall products. EXCEPT AS SET FORTH IN THE TERMS AND CONDITIONS AS SPECIFIED
IN THE LICENSE AGREEMENT FOR THIS PRODUCT, SONICWALL AND/OR ITS AFFILIATES
ASSUME NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR
STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
OR NON‐ INFRINGEMENT. IN NO EVENT SHALL SONICWALL AND/OR ITS AFFILIATES BE
LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL
DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS,
BUSINESS INTERRUPTION OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR
INABILITY TO USE THIS DOCUMENT, EVEN IF SONICWALL AND/OR ITS AFFILIATES HAVE
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SonicWall and/or its affiliates
make no representations or warranties with respect to the accuracy or completeness of
the contents of this document and reserves the right to make changes to specifications
and product descriptions at any time without notice. SonicWall Inc. and/or its affiliates do
not make any commitment to update the information contained in this document.
For more information, visit https://www.sonicwall.com/legal.
Legend
WARNING: A WARNING icon indicates a potential for property damage,
personal injury, or death.
CAUTION: A CAUTION icon indicates potential damage to hardware or loss of
data if instructions are not followed.
IMPORTANT, NOTE, TIP, MOBILE, or VIDEO: An information icon indicates
supporting information.
SOHO Wireless Quick Start Guide
Updated‐ January 2017
232‐003416‐50 Rev A
SOHO W front and rear panels
1

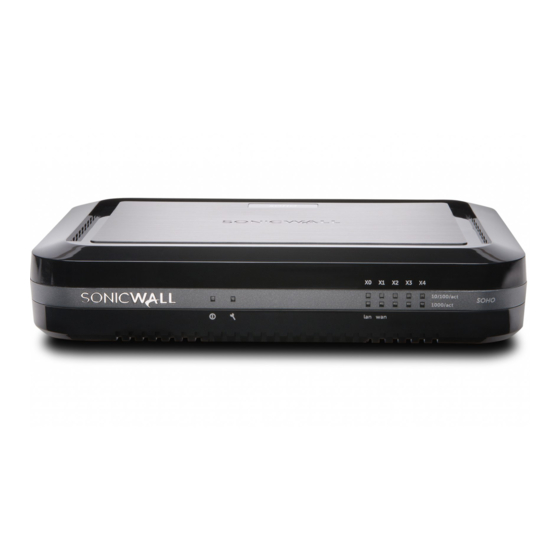

Front Panel
Wireless (W0) LED
Ethernet Port Status (X0-X4)
Indicates 802.11 n/g/a/b
USB / SSD port
security status
Top - Provides 10/100 Mbps Ethernet port status
Bottom - Provides 1 Gbps Ethernet port status
External USB and SSD
hard drive support
U0 / SS
Wireless LAN LED
Power LED
Indicates 802.11 n/g/a/b activity
Indicates Power Supply status
Service LED
For future use
Test LED
Fast blinking - Initializing
Slow blinking - SafeMode
Rear Panel
Antenna Screws (3)
Provides 802.11 wireless capabilities to the SonicWall
appliance. Only for use with provided antennas.
power
console X4 X3 X2 X1 (wan) X0 (lan)
Console Port
Access the SonicOS Command
X0 Port
Line Interface (CLI) using a
compatible CLI cable
For LAN access
X1 Port
X2 - X4 Ports
Reset Button
For WAN access
Configurable ports
Press and hold for several
seconds to set the appliance
into Safe Mode
Connect the interfaces
4
• Connect the WAN interface (X1) to your Internet
connection using a standard Ethernet cable.
• Connect the LAN interface (X0) to your computer
using a standard Ethernet cable.
Internet
Run the Setup Wizard
5
• Navigate to
https://192.168.168.168
Web browser.
http://192.168.168.168/
TIP: Your computer should be using DHCP IP addressing.
Check package contents
2
Verify that your package has the following contents:
• SonicWall SOHO W appliance
• Antennas (3)
• Ethernet cable
• Standard power adaptor
• Standard power cord
• Quick Start Guide
NOTE: The included power cord is approved for use only
in specific countries or regions. Before using a power
cord, verify that it is rated and approved for use in your
location.
Power Supply
Provides power to
the SonicWall
appliance
A message displays indicating the appliance is not
registered and giving you an option to register it now
or later. The following procedure is based on clicking
Register Later. A configuration dialog displays.
• Click on the link in "To launch the SonicWall Setup
Wizard, click here."
• The SonicOS Startup Guide displays.
on your
• Click Next and follow the prompts in the Startup
Guide pages that follow.
Power on
3
• Connect the antennas to the appliance.
• Connect the power adaptor to the appliance and to
the power cable. Plug the power cable into an
appropriate outlet (100‐240 volts AC).
• The SOHO W appliance powers on and the Test LED
blinks during the boot sequence.
U0 / SS U U U U
CAUTION: Only use the included power adaptor with
this appliance. Do not use a power adaptor that is
damaged or from another appliance.
• Enter the SOHO W appliance administrator
credentials to change the password, if you wish. Click
Next.
NOTE: The default administrator credentials are
Username: admin Password: password
The automatic WAN IP settings are configured.
NOTE: For manual configuration, refer to the latest
SonicOS Administration Guide.
• The new IP Configuration is displayed. Click Done.
Configuring Wireless LAN settings
• Log into your SOHO W appliance and click the
Wizards icon.
120V AC
(U.S.)
