SonicWALL SMA 400 Administration Manual
  1. Manuals
  2. Brands
  3. SonicWALL Manuals
  4. Firewall
  5. SMA 400
  6. Administration manual

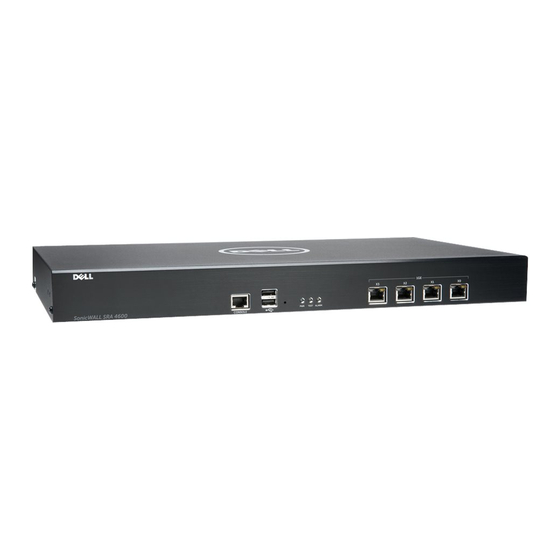

SonicWALL SMA 400 Administration Manual

Hide thumbs Also See for SMA 400:
Table of Contents

Advertisement

Quick Links

Introduction
•

About This Guide

•

Secure Mobile Access Overview

About This Guide
This SonicWall Inc. Secure Mobile Access Administration Guide provides network administrators with a high-level overview of Secure Mobile Access
(SMA) technology, including activation, configuration, and administration of SonicWall Inc. SMA/SRA appliances using the Secure Mobile Access
management interface.
Refer to
SMA Documentation for the latest version of this guide as well as other SonicWall Inc. product and services documentation.

Guide Conventions

The following conventions are used in this guide:
Convention
Use
Bold
Highlights field, button, and tab names. Also highlights window,
dialog box, and screen names. Also used for file names and text or
values you are being instructed to type into the interface.
Italic
Indicates the name of a technical manual, emphasis on certain words
in a sentence, or the first instance of a significant term or concept.
Menu Item > Menu Item
Indicates a multiple step management interface menu choice. For
example, System > Status means select the Status page under the
System menu.
Secure Mobile Access Overview
This section provides an overview of the Secure Mobile Access (SMA) technology, concepts, basic navigational elements and standard deployment
guidelines.
Topics:
•

Overview of SMA/SRA Hardware and Components

•
•
•
Overview of SMA/SRA Hardware and Components
The SMA and SRA appliances provide organizations with a simple, secure and clientless method of access to applications and network resources
specifically for remote and mobile employees. Organizations can use SMA connections without the need to have a pre-configured, large-installation host.
Users can easily and securely access email files, intranet sites, applications, and other resources on the corporate Local Area Network (LAN) from any
location by accessing a standard Web browser.
This section contains the following subsections:
•

SMA Software Components

•
•
•
SMA Software Components
SMA/SRA appliances provide clientless identity-based secure remote access to the protected internal network. Using the Virtual Office environment,
SMA/SRA appliances can provide users with secure remote access to your entire private network, or to individual components such as File Shares, Web
servers, FTP servers, remote desktops, or even individual applications hosted on Citrix or Microsoft Terminal Servers.
Although SMA protocols are described as clientless, the typical SMA portal combines Web, Java, and ActiveX components that are downloaded from the
portal transparently, allowing users to connect to a remote network without needing to manually install and configure a VPN client application. In addition,
SMA enables users to connect from a variety of devices, including Windows, Macintosh, and Linux PCs. ActiveX components are only supported on
Windows platforms.
For administrators, the SMA web-based management interface provides an end-to-end SMA solution. This interface can configure SMA users, access
policies, authentication methods, user bookmarks for network resources, and system settings.
For clients, web-based SMA customizable user portals enable users to access, update, upload, and download files and use remote applications installed
on desktop machines or hosted on an application server. The platform also supports secure web-based FTP access, network neighborhood-like interface
for file sharing, Secure Shell version 2 (SSHv2), Telnet emulation, VNC (Virtual Network Computing) and RDP (Remote Desktop Protocol) support,
Citrix Web access, bookmarks for offloaded portals (external Web sites), and Web and HTTPS proxy forwarding.
