Dear Client! Thank you for purchasing Sigma mobile
product!
Please read this manual before using the device to ensure safe and proper use and
prevent it from damages.
Software, design features and content of manual may be changed to improve the
product without a prior notice.
Manufactures and distributors are not liable for case damages as well as the
damages caused due to incorrect or improper exploitation.
Package Contents:

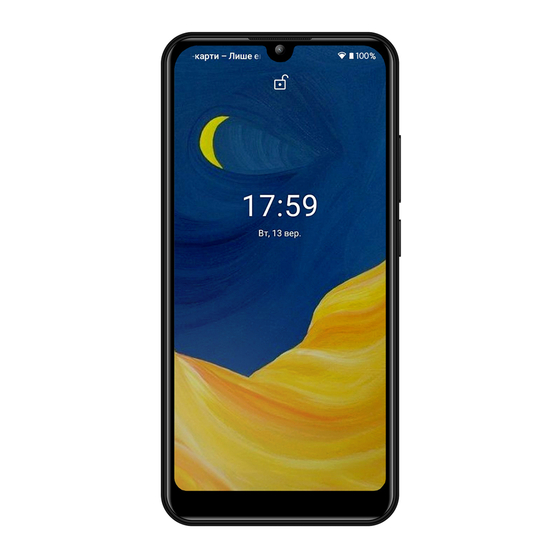

Smartphone Sigma mobile X-style S3502
Network charger
USB--microUSB cable
Silicone Case
Manual
Warranty Card
Size 146mm*71mm*9,5mm
The manufacturer reserves the right to change complement, specifications and
appearance
The manufacturer reserves the right to change complement, specifications and
appearance.
Specifications
Android™ 11 (Go
edition)
Screen
CPU
Camera
Memory
Dual SIM, 3G, LTE
Go straight to the stuff that matters most. Because
Android 11 is optimized for how you use your
phone. Giving you powerful device controls. And
easier ways to manage conversations, privacy
settings and so much more..
5.7" resolution 720*1520px
UNISOC T310, 4 Core, Up to 2.0 GHz*.
5 MP on the back, 5 MP on the front side of device
to take photos and record video.
Operational – 2 GB, built – 16 GB**. The possible
storage extension by micro-SD cards up to 128 GB.
2 SIM cards that support 3G technology and LTE –
for using Internet and to make calls.
Advertisement
Table of Contents
Related Manuals for Sigma mobile X-style S3502
Summary of Contents for Sigma mobile X-style S3502
- Page 1 Dear Client! Thank you for purchasing Sigma mobile product! Please read this manual before using the device to ensure safe and proper use and prevent it from damages. Software, design features and content of manual may be changed to improve the product without a prior notice.
-
Page 2: Table Of Contents
WI-FI 802.11 B/G/N Connection Interface to the wireless network The ability to determine the location and to use navigation programs. Battery 2750 мАh., built-in * The frequency of the processor program may be limited to lower values. ** The actual memory size may be less due to the pre-installed operating system and applications. -
Page 3: Safety And Security
Google ......................20 System ......................20 About phone ....................21 Connection ......................21 Phone ....................... 21 Contacts ......................23 Messaging ......................24 Apps ........................25 Google Play ...................... 25 Camera ......................25 Google apps ..................... 27 Troubleshooting ....................28 SAFETY AND SECURITY ... -
Page 4: Headset Usage
Headset usage For safety do not use headset while driving the car or bicycle. Reduce the volume passing roadway. Using the headset, do not listen to music at a high volume for a long time – reversely, it may lead to the hearing problems. ... -
Page 5: Buttons And Ports
Buttons and ports Audio connector Power on/off Front camera Hole for removing the back cover microUSB connector Flash Speaker Main camera Volume Back cover (removable) Standby mode In operation mode the short pressing on the power button leads the device to the standby mode, the screen goes dark. -
Page 6: Button To Additional Menu
- Locking by the graphical key; - Locking by the password or PIN; Button to additional menu On the main screen and in the different programs might be the icon By pressing on it, the additional menu is opened for additional configuration and management. -
Page 7: Charging The Battery
Charging the battery Charge the battery before using it for the first time. Use only Sigma mobile approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device. When the battery power is low, the battery icon appears as empty. -
Page 8: Installing A Sim-Card And Memory Card
If you use multiple apps at once, network apps, or apps that need a connection to another device, the battery will drain quickly. To avoid losing power during a data transfer, always use these apps after fully charging the battery. Charging steps Connect the USB cable to the USB power adaptor, and then plug the end of the USB cable into the multipurpose jack. -
Page 9: Main Techniques
Be careful not to lose your SIM card and do not let others use it. Sigma mobile is not liable for any damage or inconvenience caused by the loss or theft of the cards. - Page 10 Swiping Swipe to the left or right on the Home screen or the Apps screen to view other panels. You may swipe upwards or downwards to scroll through a webpage or a list of items such as contacts. Spreading and pinching Spread two fingers apart on a webpage, map, or image to zoom in a part.
- Page 11 To edit the notifications panel (add / remove buttons, reorder them), press the Edit key. Home screen Home screen is the starting point for accessing all of the device’s features. It displays widgets, shortcuts to apps, and more. To view other panels, swipe to the left or right.
-
Page 12: Account Settings
2.Swipe left or right and chose one of the proposed pictures, showed down the screen. To choose the photo, made by the camera, or other images press Choose image. 3.Choose the necessary image, change the frame (as you wish) and install as a wallpaper. -
Page 13: Files Transferring
Files transferring Transferring of the audio, video, images and other file types from the device to computer and reversely. Connection in file transfer mode 1. Connect the device to the computer using the USB cable. 2. Open the notifications panel, and then tap Use USB to → File transfer. 3. -
Page 14: Settings
SETTINGS Use this application to configure the device, set application options, and add Accounts. Tap Settings on the Applications screen. Network & Internet WI-FI In the WI-FI section you will see a WI-FI switch, a list of available networks, the latest line of which is "Add Network"... -
Page 15: Connected Devices
To choose which type of network you want to connect: 2G/3G/4G Network operator selection Manual / automatic network operator selection Access point names Set up access point names (APNs). Data saver Data saver prevents some apps from sending or receiving data an the background Hotspot &... -
Page 16: Apps & Notifications
Screencast to wireless device (such as Smart TV) Printing Connect to a printer and set up Files received via Bluetooth List of files received via Bluetooth Nearby Share Enable / disable Nearby Share function Apps & notifications List of applications installed on the device. To view all installed apps, touch See all apps. -
Page 17: Battery
Permission manager View application permissions. Permissions are grouped by type of use. There is the ability to manage permissions: enable / disable Special app Access Installing default apps to use in certain situations. Configuring Special app Access to System Processes (battery optimization, modify system settings and so on). Battery In this menu you can see the battery usage after the last full charge, enable / disable power saving mode, set sleep mode, enable battery percentage display,... -
Page 18: Location
Autofill service from Google View and manage one-touch data: passwords, addresses, credit cards, and other information stored in your Google Account. Google location history View and manage data about where you go with your device Activity control Choose the activities and info you allow Google to save Advertising ID and personalization Usage &... -
Page 19: Accounts
Other settings for device security Device admin apps: view device administrators, installed on it. Administrators may be allowed to use on the device new policy. To encrypt device: set a password to encrypt data stored on the device. Password must be entered each time when activate the device. -
Page 20: Digital Wellbeing And Parental Control
Digital wellbeing and parental control A system application that allows you to get information about the use of the device, such as how often the phone is unlocked, or how long each application runs. Setting the lock for sleep time, setting timers for applications (at the end of the timer for the application, the application will be suspended until the end of the day). -
Page 21: About Phone
Enable / disable device activation when lifting Date and time Access and alter the following settings to control how the device displays the time and date. If the battery remains fully discharged or removed from the device, the time and date is reset. - Page 22 PHONE: enter the number by the keyboard, and then tap To open or close the keyboard tap Speed Dial tap : to make a call from favorite contacts. CONTACTS tap : to make a call from contacts. ...
-
Page 23: Contacts
When the waiting mode is on, it is possible to answer another receiving call. Tap for rejecting with If you answer on the second call, the first one is placed on standby mode. Missed calls When you receive notifications about missed calls, indicator icons appear on the status bar . -
Page 24: Messaging
Choose contact for editing and then tap Contact removing To remove the contact, tap and choose Delete. To set speed dial number Touch contact, tap , icon is changed to , the contact appears on the panel Speed dial. To remove the contact, tap this icon again. Messaging Send messages and view them during the conversation. -
Page 25: Apps
Default program for sending SMS SMS settings: delivery reports, SMS storage location, editing the quick test, editing of the SMS center sending, SMS inputting mode MMS Settings Notification settings General Settings APPS Google Play Google Play is your entertainment unbound. It brings together all of the entertainment you love and helps you explore it in new ways, anytime, anywhere. - Page 26 Spread two fingers apart on the screen to zoom in, and pinch to zoom out. Tap to take a photo or to take video. To change the focus while recording a video, tap where you want to focus. ...
-
Page 27: Google Apps
Attention! Camera is turned off automatically, when it is not used. Make sure that the lens is clean. Otherwise, the device may not work properly in some modes that use a high resolution. The front camera features a wide-angle lens. Minor distortion may occur in wide-angle photos and does not indicate device performance problems. -
Page 28: Troubleshooting
The touchscreen may malfunction in humid conditions or when exposed to water. Restart your device to clear any temporary software bugs. If the touchscreen is scratched or damaged, visit a Sigma mobile Service Centre. Your device does not react on pressing the keys or encounters a fatal error... - Page 29 Try the following solutions. If the problem is still not resolved, contact a Sigma mobile Service Centre. Restarting the device If your device does not react on pressing the keys or freezes you may need to close apps or turn off the device and turn it on again.
- Page 30 Charge the battery. Free some memory by transferring files to a computer or deleting files from your device. Restart your device. If you still have troubles with the camera app, contact Sigma mobile service Centre. Photo quality is poorer than the preview ...
