FAR RAC 180 Instructions For Use Manual

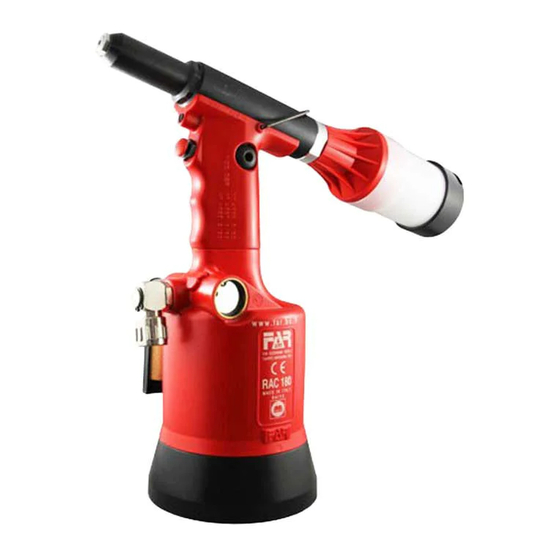

Hydropneumatic riveting tool for rivets diameter 2.4...6 (diameter 6 aluminium only)
Hide thumbs Also See for RAC 180:

Advertisement

Table of Contents

Advertisement

Table of Contents
loading

Related Manuals for FAR RAC 180

Summary of Contents for FAR RAC 180

  • Page 2 Ø C = 1,43 717006 B = 13 Ø A = 8,3 71345507 710859 Ø C = 1,7 ÷ 2,1 717001 B = 13 Ø A = 8,3 71345507 710859 Ø C = 2,15 ÷ 2,4 717002 B = 13 Ø...
  • Page 3 TAMP Acc. Ø 4,8 717004 B = 13 Ø A = 8,3 12,5 Ø C = 2,9 71345507 710859 MULTIFAR Inox. Ø 3,2 717002 B = 13 Ø A = 8,3 Ø C = 2,15 71345507 710859 MULTIFAR Inox. Ø 4 717003 B = 13 Ø...

  • Page 4: Safety Measures And Requirements

    FAR riveting tools are covered by a 12-month warranty. The must be far from any heating sources or from cutting parts. tool warranty period starts on the date of delivery to the buyer, as specified in the relevant document. The warranty parts or silencers.

  • Page 5: Tool Identification

    RAC 180 TOOL IDENTIFICATION The riveting tool RAC 180 is identified from a marking that shows company name and address of manufacturer, designation of the tool, CE. Always refer to the information on the riveting tool when requesting technical service.
  • Page 6 RAC 180 HOW TO USE YOUR RIVETING TOOL (fig. f1-f2) MAINTENACE AND CHANGE OF SIZE (fig. f3-f4-f5-f6) After the clamping, the sheared nail is piped by the riveting tool and ejected from the back into the special container (C). of the clamps on the nail due to the deposited impurities.

  • Page 7: Disposal Of The Riveting Tool

    RAC 180 ATTENTION! Before disconnecting the compressed air hose, make sure that it is not under pressure! ATTENTION: Make sure that the oil filler cap ( F ) is tightened at a torque corresponding to Min. 5 Nm ÷ Max. 8 Nm.

  • Page 8: Spare Parts

    RAC 180 SPARE PARTS CODE Q.ty DESCRIPTION CODE Q.ty DESCRIPTION 712716 1 Body cover 717002 1 Nozzle for rivet ø 4 710300 1 Gasket OR 020 717003 1 Nozzle for rivet ø 4,8 All. 004A 710837 1 Screw TE M9 x 20 717005 1 Nozzle for rivet ø...
  • Page 9 RAC 180 CZĘŚCI ZAMIENNE ДЕТАЛИ 64 G 63 G 26 61 G 89 F 90 F 76 D 75 D 73 C 71 C 69 95 70 C 87 E 60 E 29 B 28 B 27 B 28 B...
  • Page 10 RAC 180 ACCESSORI - ACCESSORIES - ACCESSOIRES - ZUBEHÖR - ACCESORIOS - AKCESORIA - ПРИНАДЛЕЖНОСТИ TESTE PROLUNGATE - EXTENDED HEADS - TÊTES ALLONGÉES - VERLÄNGERTE KÖPFE - CABEZAS ALARGADAS - PRZED Ł U Ż ANE G Ł OWICE - УДЛИНЕННЫЕ ГОЛОВКИ...
  • Page 11 RAC 180 ACCESSORI - ACCESSORIES - ACCESSOIRES - ZUBEHÖR - ACCESORIOS - AKCESORIA - ПРИНАДЛЕЖНОСТИ GŁOWICA KĄTOWA - УГЛОВАЯ ГОЛОВКА TESTA ANGOLARE - ANGLE HEAD - TÊTE ANGULAIRE - WINKELKOPF - CABEZA ANGULAR - S-TRIFAR / X-TRIFAR Ø 5,2 71345652 B = 13 Ø...
  • Page 12 The list of the service centres is available on our website http://www.far.bo.it ( Organization ) La liste des centres d’assistance est disponible sur notre site internet http://www.far.bo.it ( Organisation ) Die Liste der Reparaturservices ist verfügbar unter unserer Webseite http://www.far.bo.it ( Organisation ) La lista de los servicios postventa es disponible en nuestro sitio web http://www.far.bo.it ( Organización )
