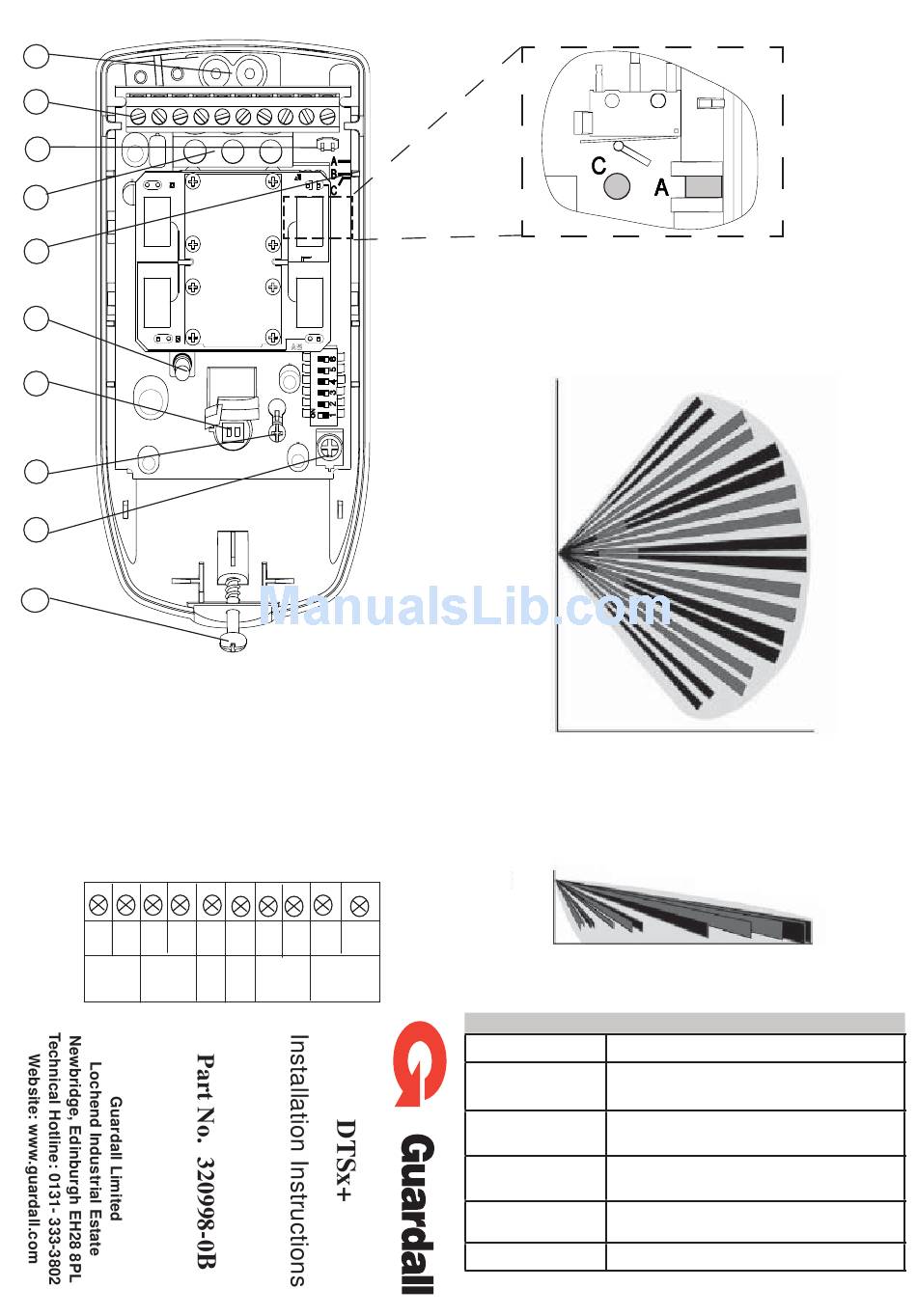

Diagram 1 - Unit Explanation
10
9
8
7
6
5
4
3
2
1
1.
Cover Screw (loosen only - do not remove)
2.
Microwave Range Control
3.
PCB Retaining Screw
4.
PIR Detector (do not touch)
5.
Cover Tamper
6.
Declination Indicator
7.
LEDs
8.
Off the Wall Tamper Connection
9.
Terminal Block
10.
Cable Knockout Positions
Diagram 2 - Terminal block
1 2 3 4 5 6 7 8 9 10
-
+
NC
12 V
Alarm
NC
Ctrl
NC Aux
Test
Tamper
Diagram 3 - Tamper Switch
Off the wall tamper fi tting is required for EN Grade 3
- the screw should be fi tted in location A or C.
Diagram 4 - Coverage Diagrams
Volumetric Plan View 15m
9m
0m
9m
0m 3m 6m 9m 12m 15m
Volumetric Side View 15m
2.3m
0m 3m 6m 9m 12m 15m
1. Technical Specifi cation
Voltage:
12 V (9 V to 16 V dc)
Current:
Quiescent – 14 mA @ 12V
Max – 30 mA @12V (All LEDs ON)
Alarm, Aux &
Normally closed (NC). Rated at 24 V dc,
Tamper:
50mA
Test Input:
Positive supply to enable LEDs and control
Remote Self Test
Control Input:
Positive supply for system Set. Otherwise
Unset
Microwave range:
50% to 100% of range via potentiometer
See datasheet for full information
