Elicent VITRO 9/230 Instruction Manual

5a
5b 5c
5e 5f
5h

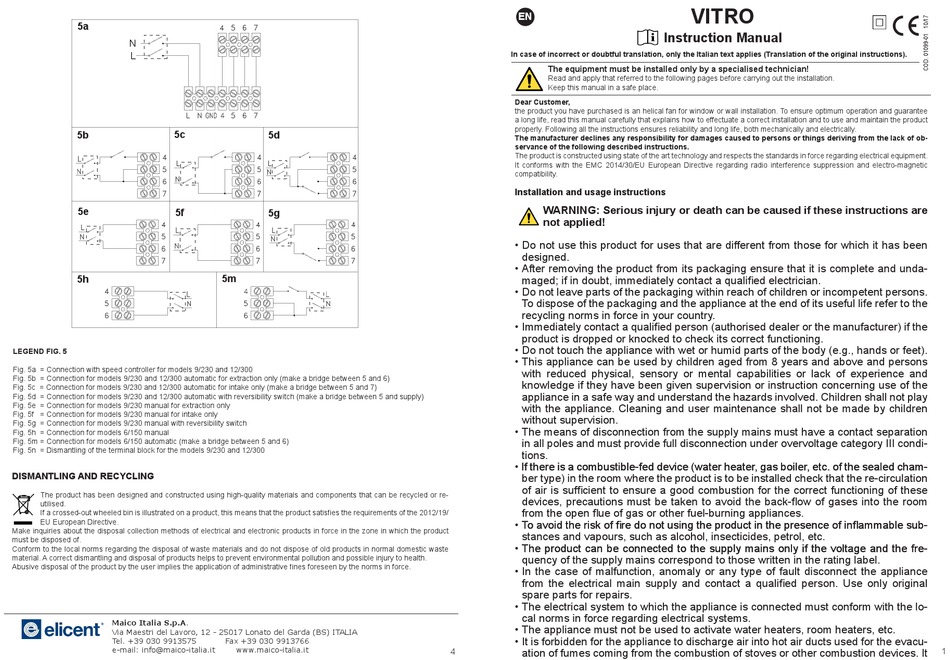

LEGEND FIG. 5
Fig. 5a = Connection with speed controller for models 9/230 and 12/300
Fig. 5b = Connection for models 9/230 and 12/300 automatic for extraction only (make a bridge between 5 and 6)
Fig. 5c = Connection for models 9/230 and 12/300 automatic for intake only (make a bridge between 5 and 7)
Fig. 5d = Connection for models 9/230 and 12/300 automatic with reversibility switch (make a bridge between 5 and supply)
Fig. 5e = Connection for models 9/230 manual for extraction only
Fig. 5f = Connection for models 9/230 manual for intake only
Fig. 5g = Connection for models 9/230 manual with reversibility switch
Fig. 5h = Connection for models 6/150 manual
Fig. 5m = Connection for models 6/150 automatic (make a bridge between 5 and 6)
Fig. 5n = Dismantling of the terminal block for the models 9/230 and 12/300
DISMANTLING AND RECYCLING
The product has been designed and constructed using high-quality materials and components that can be recycled or re-
utilised.
If a crossed�out wheeled bin is illustrated on a product, this means that the product satisfies the requirements of the 2012/19/
EU European Directive.
Make inquiries about the disposal collection methods of electrical and electronic products in force in the zone in which the product
must be disposed of.
Conform to the local norms regarding the disposal of waste materials and do not dispose of old products in normal domestic waste
material. A correct dismantling and disposal of products helps to prevent environmental pollution and possible injury to health.
Abusive disposal of the product by the user implies the application of administrative fines foreseen by the norms in force.
Maico Italia S.p.A.
Via Maestri del Lavoro, 12 - 25017 Lonato del Garda (BS) ITALIA
Tel. +39 030 9913575
e-mail: info@maico-italia.it
5d
5g
5m
Fax +39 030 9913766
www.maico-italia.it
EN
In case of incorrect or doubtful translation, only the Italian text applies (Translation of the original instructions).
The equipment must be installed only by a specialised technician!
Read and apply that referred to the following pages before carrying out the installation.
Keep this manual in a safe place.
Dear Customer,

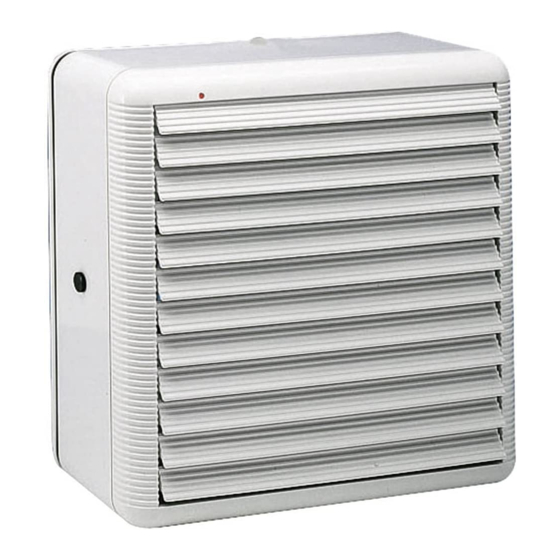

the product you have purchased is an helical fan for window or wall installation. To ensure optimum operation and guarantee
a long life, read this manual carefully that explains how to effectuate a correct installation and to use and maintain the product
properly. Following all the instructions ensures reliability and long life, both mechanically and electrically.
The manufacturer declines any responsibility for damages caused to persons or things deriving from the lack of ob-
servance of the following described instructions.
The product is constructed using state of the art technology and respects the standards in force regarding electrical equipment.
It conforms with the EMC 2014/30/EU European Directive regarding radio interference suppression and electro-magnetic
compatibility.
Installation and usage instructions
WARNING: Serious injury or death can be caused if these instructions are
not applied!
• Do not use this product for uses that are different from those for which it has been
designed.
• After removing the product from its packaging ensure that it is complete and unda-
maged; if in doubt, immediately contact a qualified electrician.
• Do not leave parts of the packaging within reach of children or incompetent persons.
To dispose of the packaging and the appliance at the end of its useful life refer to the
recycling norms in force in your country.
• Immediately contact a qualified person (authorised dealer or the manufacturer) if the
product is dropped or knocked to check its correct functioning.
• Do not touch the appliance with wet or humid parts of the body (e.g., hands or feet).
• This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
• The means of disconnection from the supply mains must have a contact separation
in all poles and must provide full disconnection under overvoltage category III condi-
tions.
• If there is a combustible�fed device (water heater, gas boiler, etc. of the sealed cham� If there is a combustible�fed device (water heater, gas boiler, etc. of the sealed cham-
ber type) in the room where the product is to be installed check that the re�circulation
of air is sufficient to ensure a good combustion for the correct functioning of these
devices, precautions must be taken to avoid the back�flow of gases into the room
from the open flue of gas or other fuel�burning appliances.
• To avoid the risk of fi re do not using the product in the presence of infl ammable sub� To avoid the risk of fire do not using the product in the presence of inflammable sub-
stances and vapours, such as alcohol, insecticides, petrol, etc.
• The product can be connected to the supply mains only if the voltage and the fre� The product can be connected to the supply mains only if the voltage and the fre-
quency of the supply mains correspond to those written in the rating label.
• In the case of malfunction, anomaly or any type of fault disconnect the appliance
from the electrical main supply and contact a qualified person. Use only original
spare parts for repairs.
• The electrical system to which the appliance is connected must conform with the lo-
cal norms in force regarding electrical systems.
• The appliance must not be used to activate water heaters, room heaters, etc.
• It is forbidden for the appliance to discharge air into hot air ducts used for the evacu-
4 ation of fumes coming from the combustion of stoves or other combustion devices. It
VITRO
Instruction Manual
1
