ADEMCO 6150PL3 Installation Manual

Keypad Features

Backlit Display
Dedicated Function Keys
Built-in Sounder
Notes1.Permanent display backlighting is an option on some controls (see the control's instructions for details).

GENERAL INFORMATION

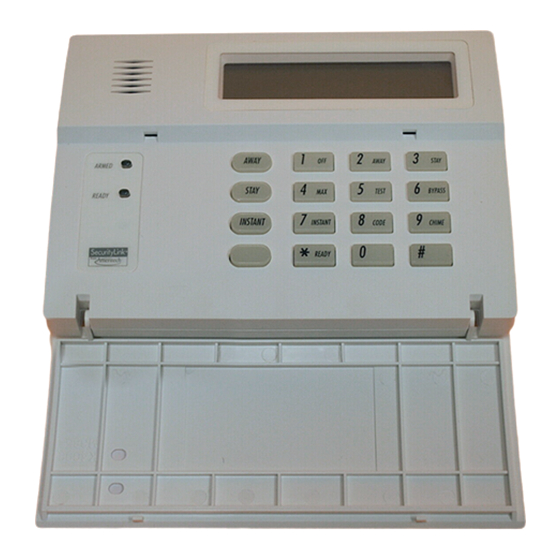

The 6150PL3 and 6160PL3 are addressable Remote
Keypads designed for use with SecurityLink control panels.
Addresses are set via the keypad keys.
The keys on the keypads are continuously backlit for
convenience.

KEYPAD DISPLAYS AND LEDS

The keypads have the following display features:
Fixed 2-line
Model Word Alpha
Display Display
6150PL3 X
6160PL3
The following table shows the LEDs and their functions:
LED Function
Red Lights when the system is armed in any mode
Green Lights when the system is "ready" to be armed.

SPECIAL FUNCTION KEYS

The keypads also feature function keys. These keys may be
programmed for panic alarms or other special functions
such as macros. See the control's instructions for details.
Function keys must be held down for at
least 2 seconds to activate an alarm, key
pairs activate immediately.
Function Key
A
B
C
D
INSTALLATION GUIDE
2-digit Custom
Zone Zone
Identifier Descriptors
X
X
Corresponding Key
Pair
[1] & [*]
[*] & [#]
[3] & [#]
NONE
6150PL3
Fixed-Word
YES (See Note 1)
YES
Piezo

WIRING AND INSTALLATION

The keypads can be surface mounted directly to a drywall, or to
a single- or double-gang electrical box.
1. Remove the case back by pushing down two "snaps."
See diagram below.
2. Route wiring from the control panel through the
opening in the case back.
3. Mount the case back to a wall or electrical box.
4. Wire directly from the keypad's terminal block to the
terminal block on the control board. Wire functions are
marked next to terminals. Labels are as follows: DI Data
In to Control Panel, - Ground, + Aux. Power Plus, DO Data
Out of Control Panel. See the control panel's Installation
Instructions for more complete details.
X
5. Re-attach the keypad to its case back.
ARMED
READY
REMOTE KEYPADS
6150PL3 & 6160PL3
6160PL3
2-Line Alpha
YES (See Note 1)
YES
Speaker
1 2 3
A
AWAY STAY
OFF
4 5 6
B
MAX TEST BYPASS
C 7 8 9
CODE CHIME
INSTANT
0
D * #
READY
MOUNTING RELEASE SNAPS
(Remove case back by pushing
up the 2 "snaps" along the
keypad's bottom edge and
pulling the case apart.)
K3590-3V1 3/00
SIDE VIEW
